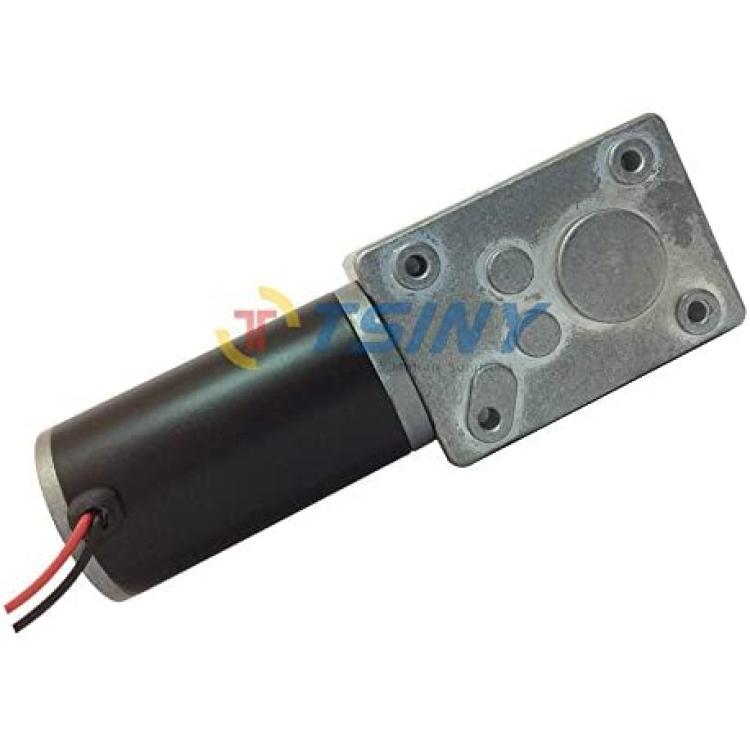

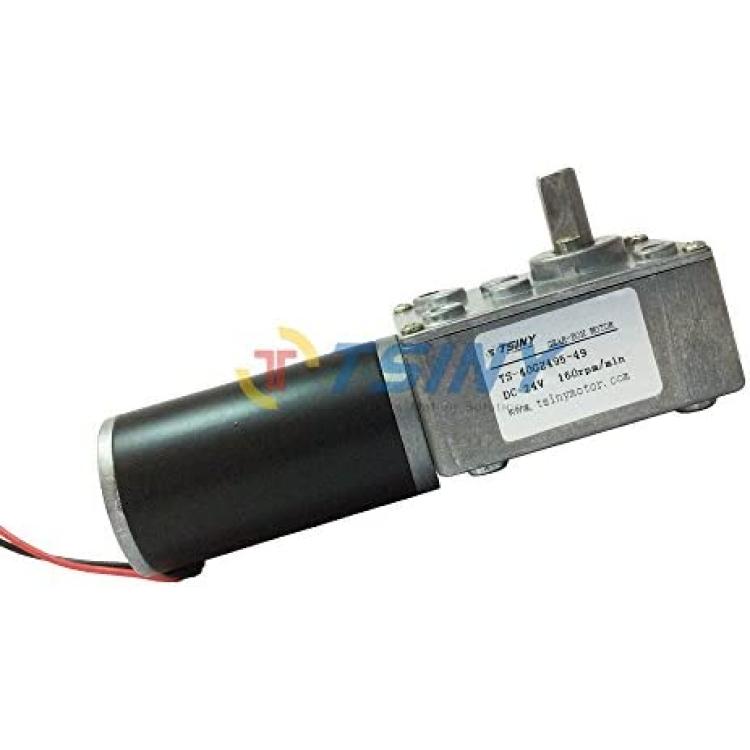

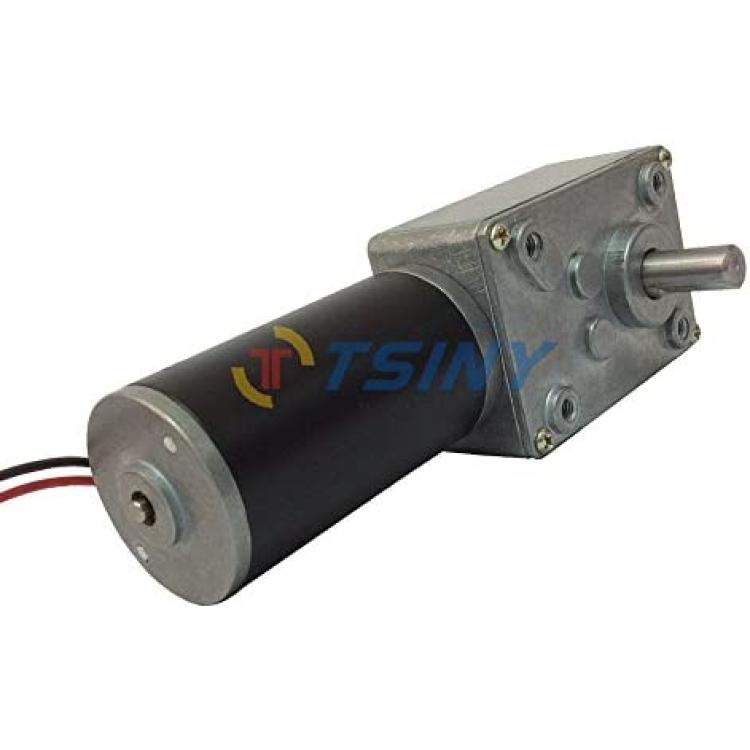

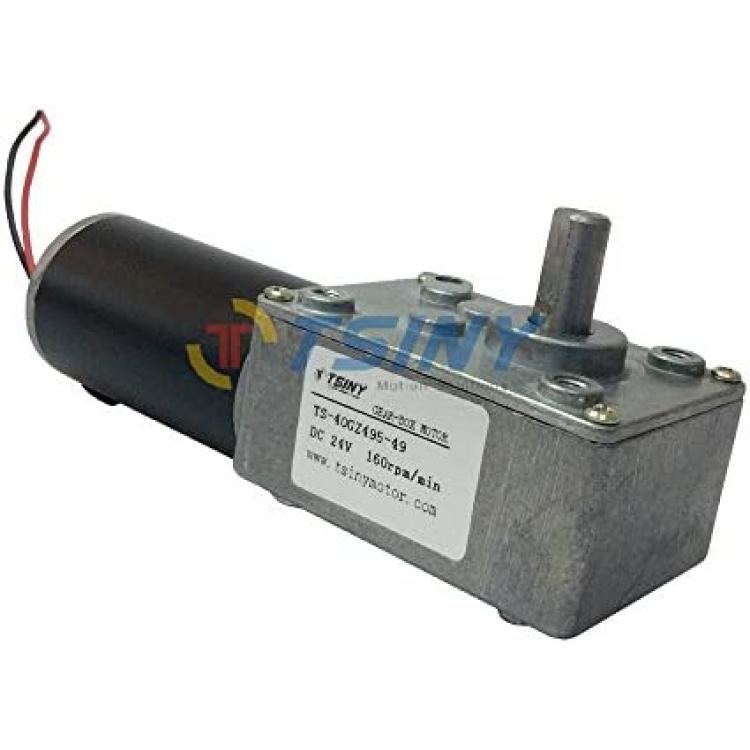

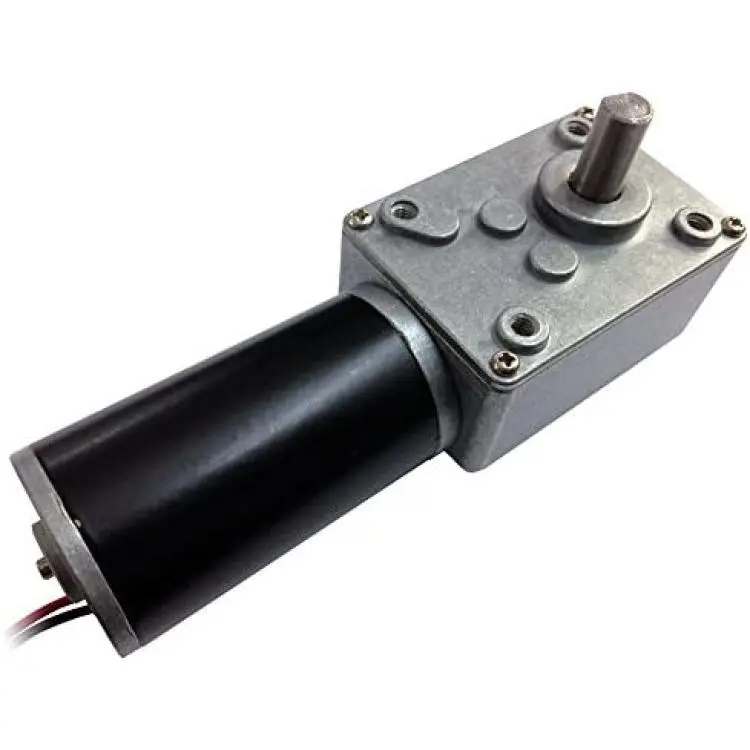

TSINY Small 12V 24 Volt Reversible High Speed 160rpm PM Electric DC Worm Gear Motor

TSINY Small 12V 24 Volt Reversible High Speed 160rpm PM Electric DC Worm Gear Motor

Brand: ‎DC Worm Gear Motor
Product Code: MM2179
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*✔Rated voltage: DC24V; No-load speed: 160RPM; Rated torque: 2.2kg.cm; Stall Torque: 8.5kg.cm; Reduction ratio:1/49;

*✔Output Shaft Dimensions:8 x 15mm/ 0.31" x 0.59"(D*L) with 1x 13mm/ 0.039*0.51(H*L) flat cut off; Wire Length : 19mm/7.4";

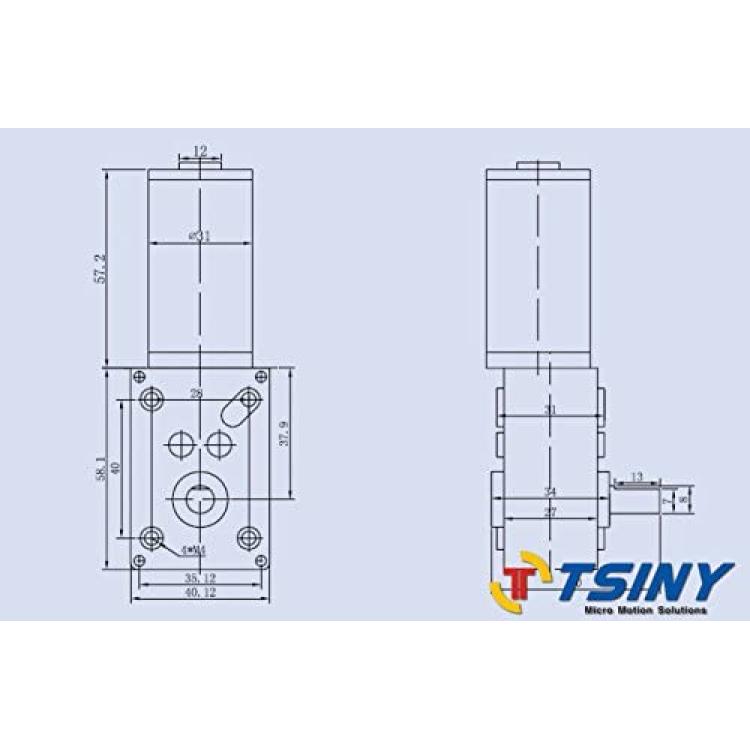

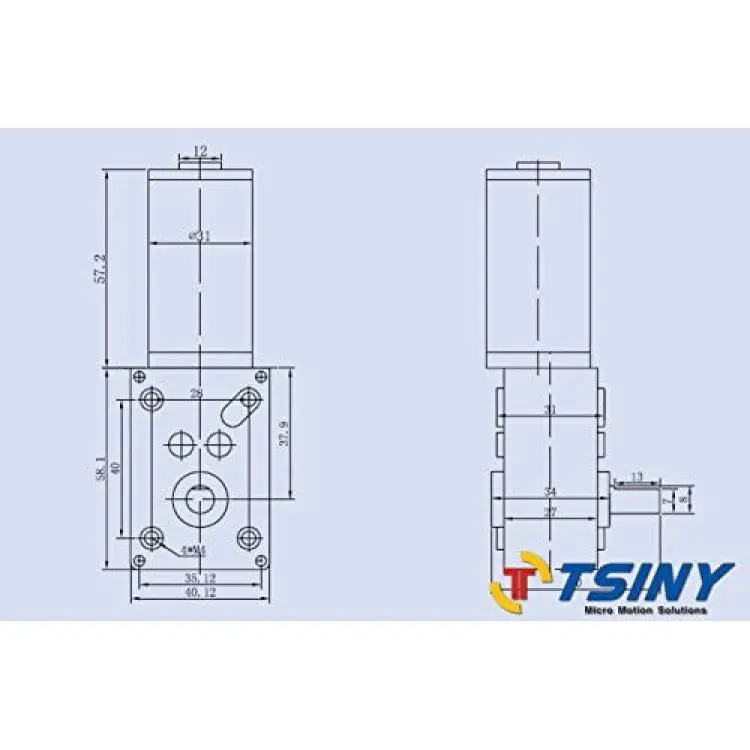

*✔DC Motor Body Dimensions: 31 x 57mm/ 1.22" x 2.24"(D*L); Gear Box Dimensions: 58.1 x 40.1 x 35mm/ 2.28"x1.58"x1.37"(L*W*H)

*✔Protection class: IP54; Low noise: db

*✔Package: 1PCS x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.

Description

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics:

(1)With self-locking, the output shaft can't rotation when switch off, that is self-locking.

(2)Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.
