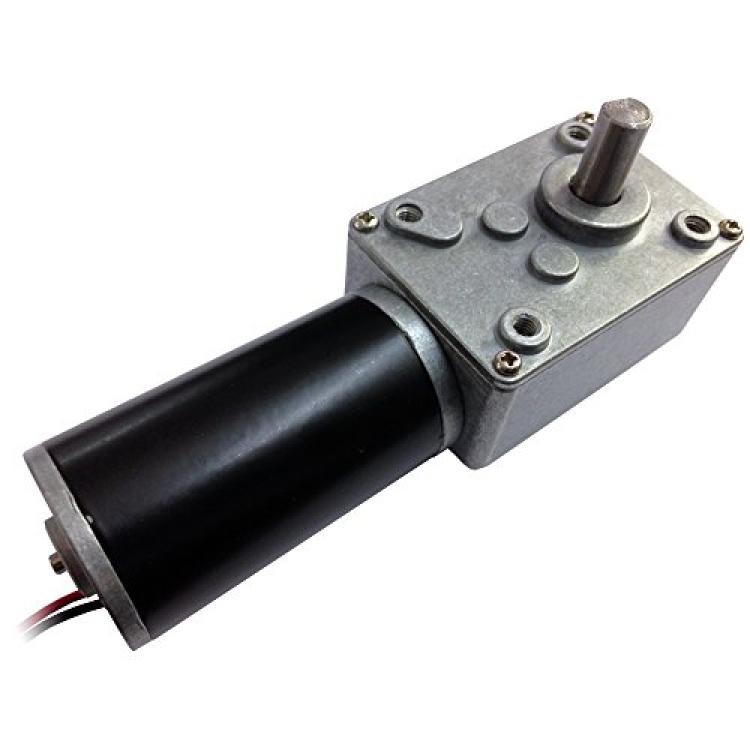

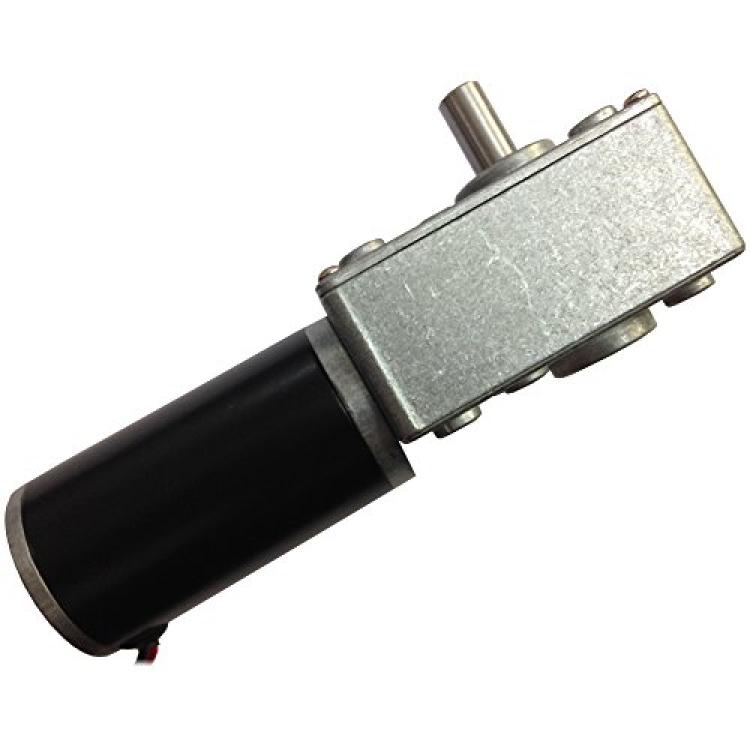

TSINY High Torque 12 Volt 80 RPM DC Worm Gear Motor for BBQ Drive Replacement

TSINY High Torque 12 Volt 80 RPM DC Worm Gear Motor for BBQ Drive Replacement

Product Code: MM1552
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*✔Rated voltage: DC12V; No-load speed: 80RPM; Rated torque: 5kg.cm; Stall Torque: 22kg.cm; Rated Current: 1.4 A; Reduction ratio: 1/101;Mounting Screw Size: M4 (not included); Low noise: db

*✔DC Motor Body Dimensions: 31 x 57mm/ 1.22" x 2.24"(D*L); Gear Box Dimensions: 58.1 x 40.1 x 35mm/ 2.28"x1.58"x1.37"(L*W*H),✔Output Shaft Dimensions: 8 x 15mm/ 0.31" x 0.59"(D*L) with 1x 13mm/ 0.039*0.51(H*L) flat cut off; Wire Length:19mm/7.4"; is_customized: Yes;

*✔The motor is miniature DC Worm Gear Motor, you can change the wiring-connection to change shaft rotation direction,with self-locking, the output shaft cant rotation when power-off, that is self-locking.

*✔The reducer output shaft arranged vertically with the motor shaft, whole motor output is relatively short,can be widely used in various of occasions that require special installation size.

*✔Package: 1PCS x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.

Description

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics:

(1)With self-locking, the output shaft can't rotation when switch off, that is self-locking.

(2) Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.

Applications:Windows, Doors opening and Household electrical appliances, Car model, Boat model, Robot model, DIY engine, Industry application, house application, home automation ,mini winch and other occasions.
