Motors Control Switch, Adjustable Duty Cycle CW CCW Rotation Motor Speed Controller Digital Display for Machine

Feature:
1. Better Control: By adjusting the pulse width modulation, that is PWM, the regulator can easily control the motor speed.
2. Simple Working: The PWM frequency is 21kHz, and the duty cycle can be adjusted from 0% to 100%, reliable and convenient.

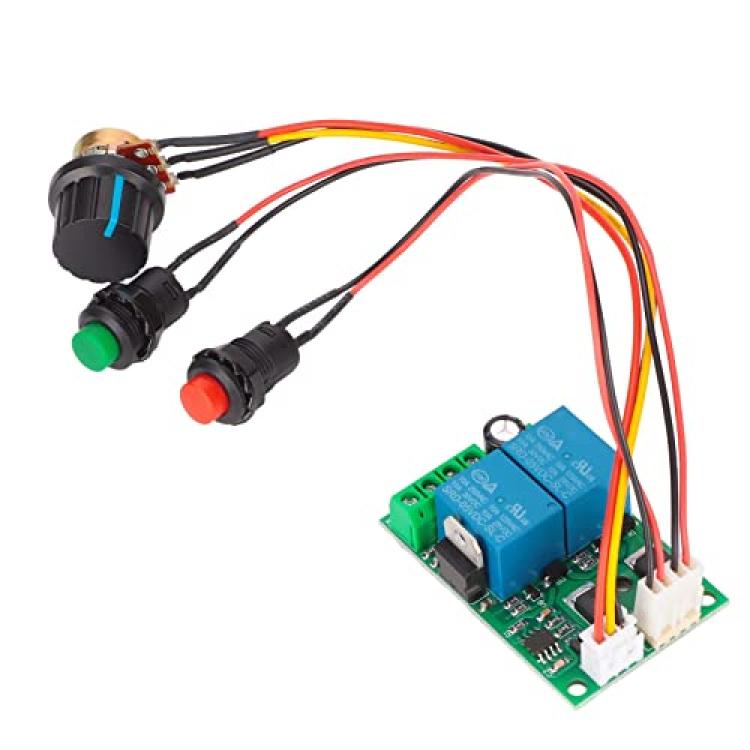

3. Reliable Using: Also comes with switch potentiometer to control the CW rotation, CCW rotation and stop of the DC motor.
4. Easier Viewing: 3 digit LED display screen enables a clear viewing on the output, making the operation much simpler.
5. Easy to Install: Designed to have a light weight as well as 57 x 37 x 21mm compact size, the installation is very easy.


How to Use:
1. The DC motor governor controls the speed of the DC motor by adjusting the pulse width modulation (PWM).
2. Control the CW and CCW rotation and stop of the DC motor through the button switch.
3. Press the green button, the motor CCW rotates; release the button, the motor stops.
4. Press the red button, the motor CW rotates; release the button, the motor stops.


Specification:

Item Type: Motor Speed Controller
Input Power Voltage: 6V - 24V DC
PWM Frequency: 21kHz
Adjustable Duty Cycle: 0%-100%
Rated Current: 30A
Potentiometer: With switch function.
Digital Display: The display range of 3 digit LED display is 000-100. For example, 055 is displayed to indicate that the PWM output duty cycle is 55%.

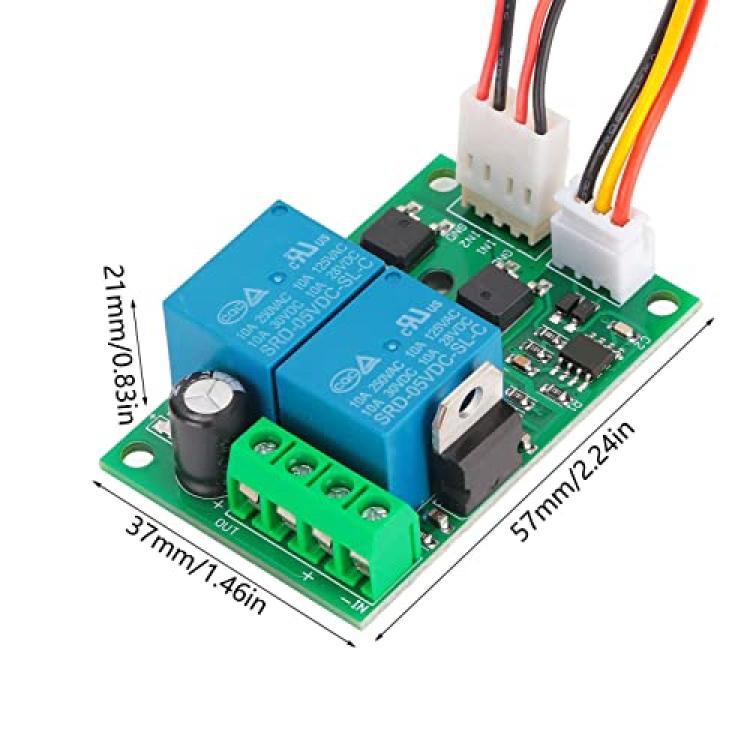

Product Size: Approx. 57 x 37 x 21mm / 2.24 x 1.46 x 0.83in





Package List:
1 x Motor Speed Controller
