Marsrock 600w Lightning Series 12v 24v AC Small Wind Turbine Generator MPPT Controller Can Flexibly Assemble A Three-blade Or Five-blade Windmill With LED Indicator For Wind Solar Hybrid System 2m/s Low Start Speed Powerful Efficiency (35S4-600H-24D)

Special note: this product does not include the wind turbinetower pole. Free controller workable for sealed battery. Controller chargingfor Lithium battery is available from our store.

1. Horizontal axis wind turbine

Blades QTY: 5PCS

Hub and hood: 1 Set for 5 blades +1 Set for 3 bald es

Power: 600W(rated); 610W(max)

Voltage:12V/24V AC

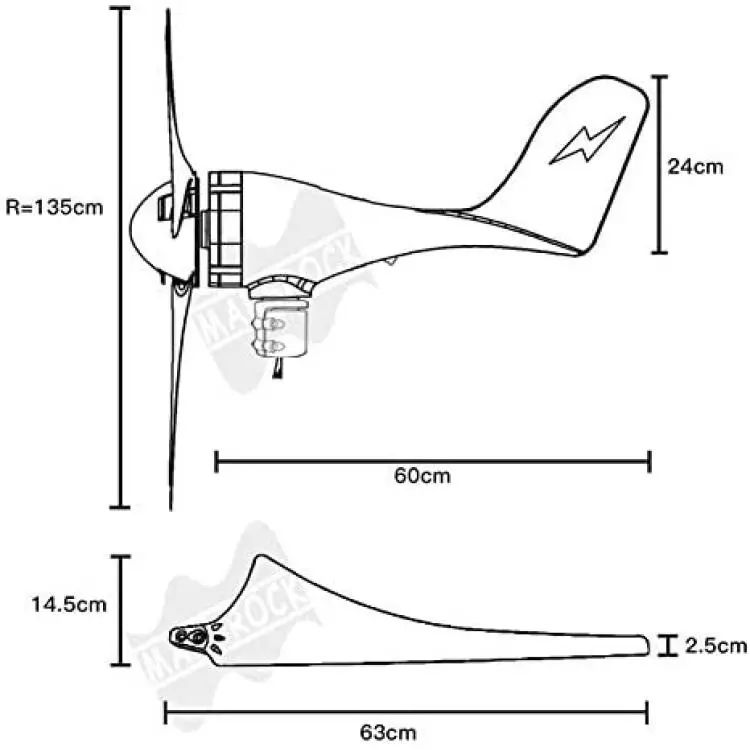

Rotor Diameter:1400mm

Start Wind Speed:2m/s

Rated Wind Speed:13m/s

Cut-out Wind Speed:45m/s

Blades material: Nano nylon glass fiber Delta wing Design

Generator: 3 phase permanent magnet synchronous ACgenerator

Bearings : Double High-precision NSK bearings

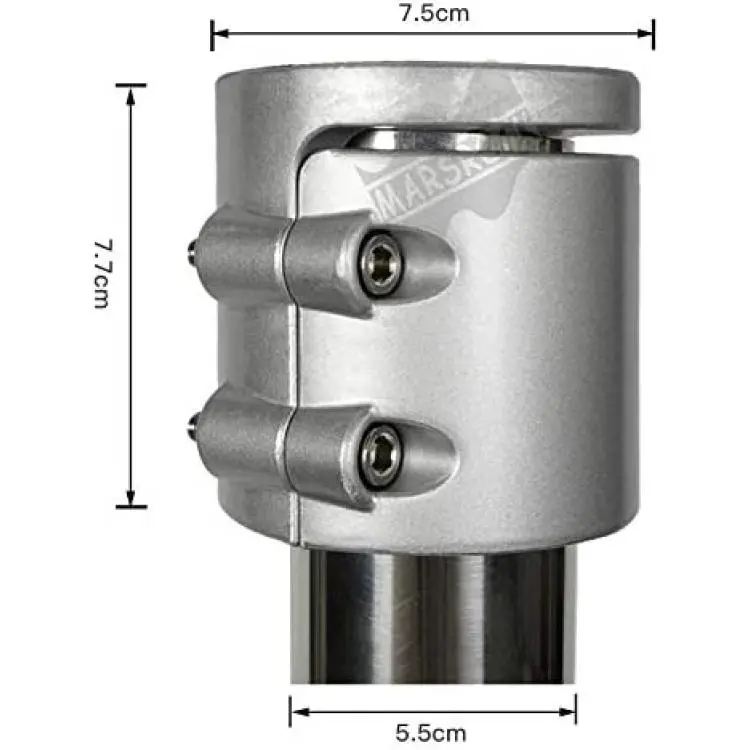

Connector: Default hoop ? optional flange only delivered from China)

Material: S304 stainless steel shaft, stainless steelscrew nut, maintenance-free. All-aluminum alloy shell shows superior heat dissipationperformance .

Life-span:20years

Package Weight: 12.6 KGS (27.8 Lb)

Package Size: 70cm x 30cm x 25cm (27.56in x 11.81in x9.84in)

2. MPPT Wind Turbine Generator Controller

Maximum Current:50A

Service for: Sealed( Lead-Acid), GEL battery

Voltage:AC-DC

Battery voltage:12V/24V DC(Auto identify)

Suitable for:0-600W wind turbine

Brakes start voltage:15V(12V Battery); 30V(24V battery)

Waterproof:IP67

Approved:CE,ROHS, FCC, ISO9001

Description

0-600W12/24V auto identify voltage wind charge controllerIP67 waterproof in high efficiency and be st heat dispersion. Wind charge cruetdetection, solar panel protection,short circuit protection,lighting protection,auto brake function.

3. Package include:

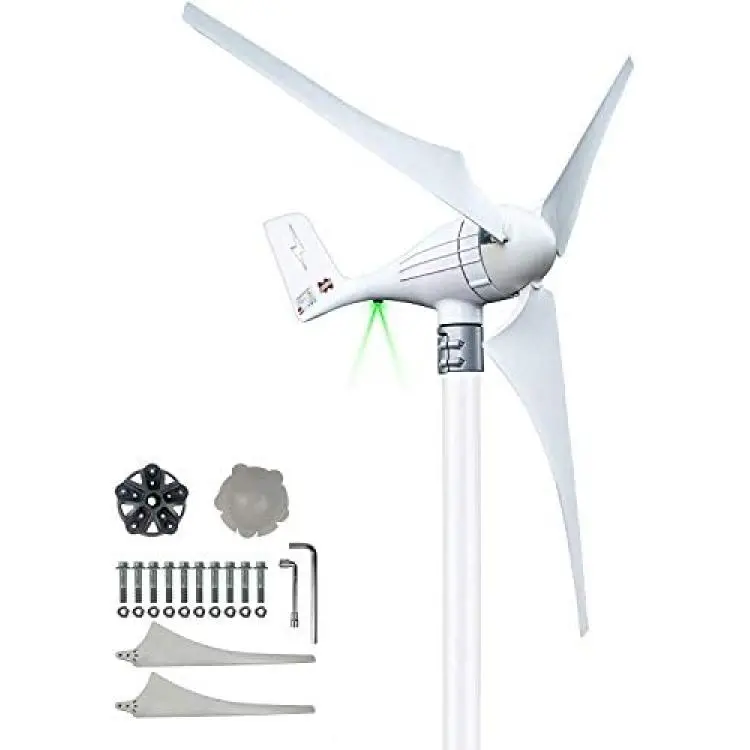

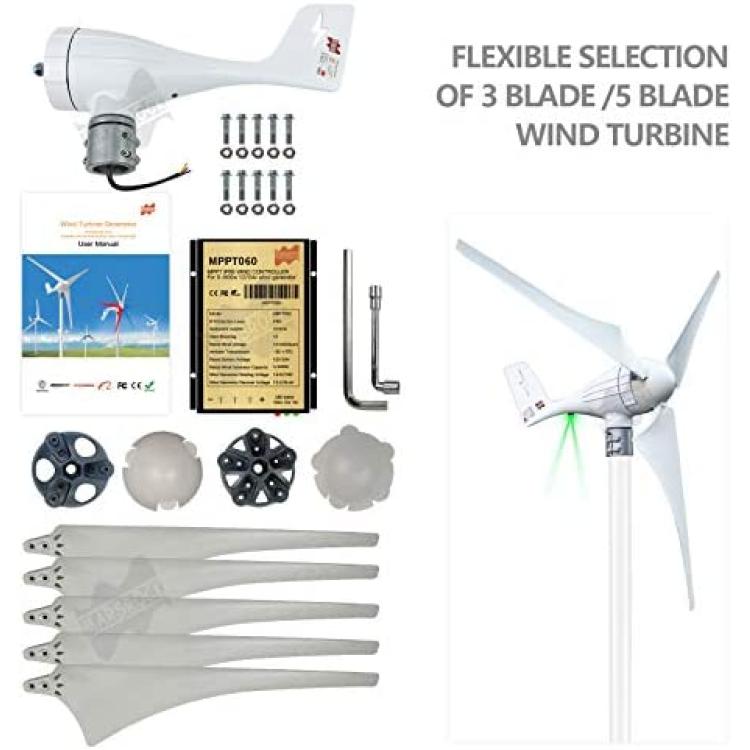

1PCS Wind Turbine Generator ? 1PCS MPPT Wind Charge Controller, 5PCS 65Cm length Blades, 2Sets Hubs& hood,  1PCS User Manual, 1 Set hexagontools
