NINILADY Free Energy 600w Vertical Wind Turbine Generator 3 Blades 12v 24v 48v 300RPM with MPPT Controller for Home Factory Use (48V with Controller, Green)
About this product

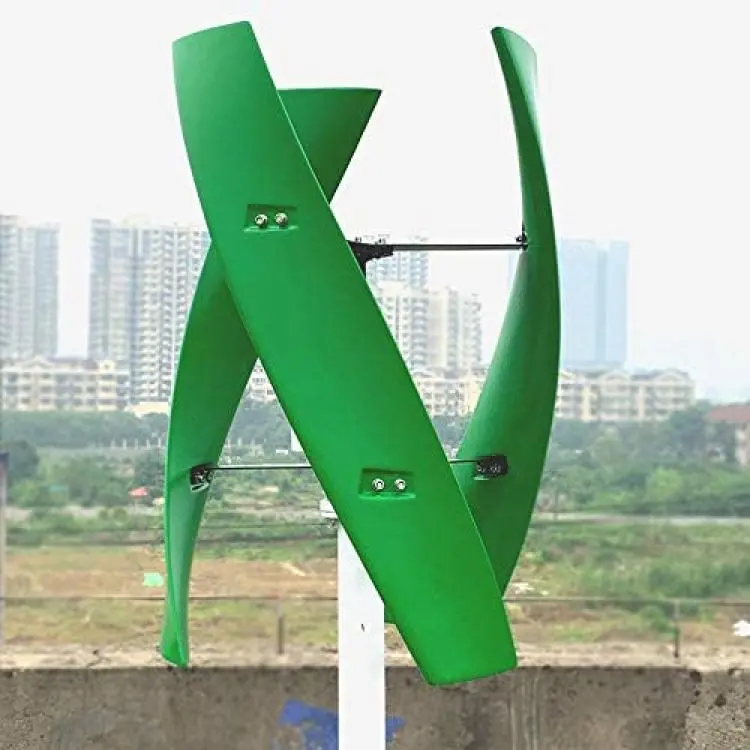

*Curved blade design,utilizes wind resource effectively and obtains a higher power generation.
*Coreless generator, Horizontal rotation and aircraft wing design reduce the noise to an unperceivable level in natural environment.
*Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small wind pressure even in strong wind.
*Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiency improved.
*Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.
Description
Des/Model: FX-600
Started wind speed (m/s): 1.3 m/s
Cut-in wind speed (m/s): 2.3 m/s
Rated Wind speed (m/s): 12 m/s
Security wind speed: 40m/s
Rated voltage?DC?: 12V/24V/48V
Rated power?W?: 600W
Max power?W?: 650W
Rotor Diameter of Blades?m): 0.6m
Blades Height?m): 1.05m
Packing size: 110x40x23cm
Safe wind speed (m/s) : Max wind speed??40m/s?
The instantaneous maximum wind speed?45m/s
Blades quantity: 3
Blade material: Fiber glass

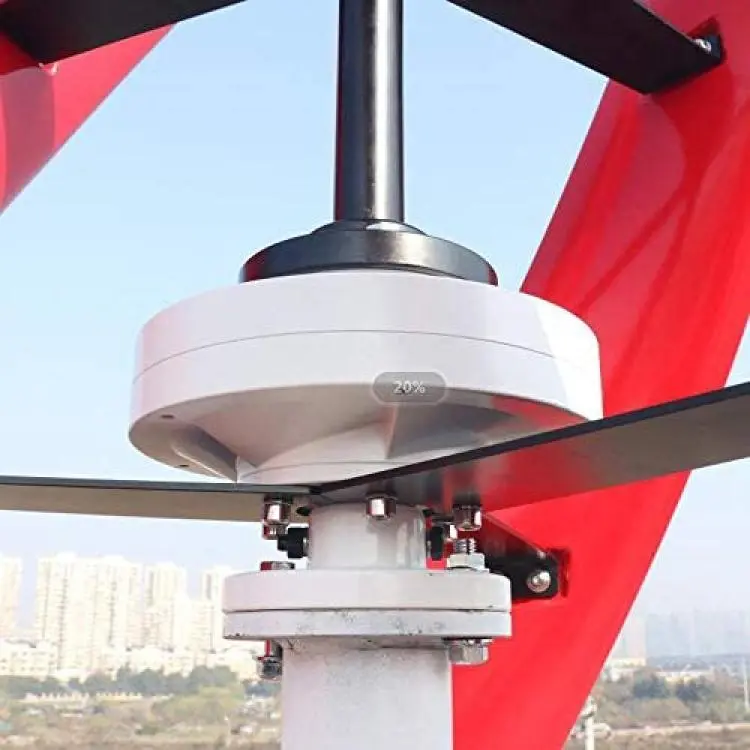

Generator: Three phase permanent magnet suspension motor
Control System: Electromagnet
Mount Height?m): 7~12m ?9m?
Generator protection grade: IP54
Work environment temperature:
VAWT -25~+45?
controller -10~+45?
Work environment humidity: VAWT ?90%?
Controller and inverter?80%
Altitude? ?4500m
Product assembly weight (Kg): <24Kg
Yaw mode: auto up-wind
Tower: Cable / Independent tower
Overspeed protection: Electromagnetic brake
Overload protection: Electromagnetic brake and the unloading unit
