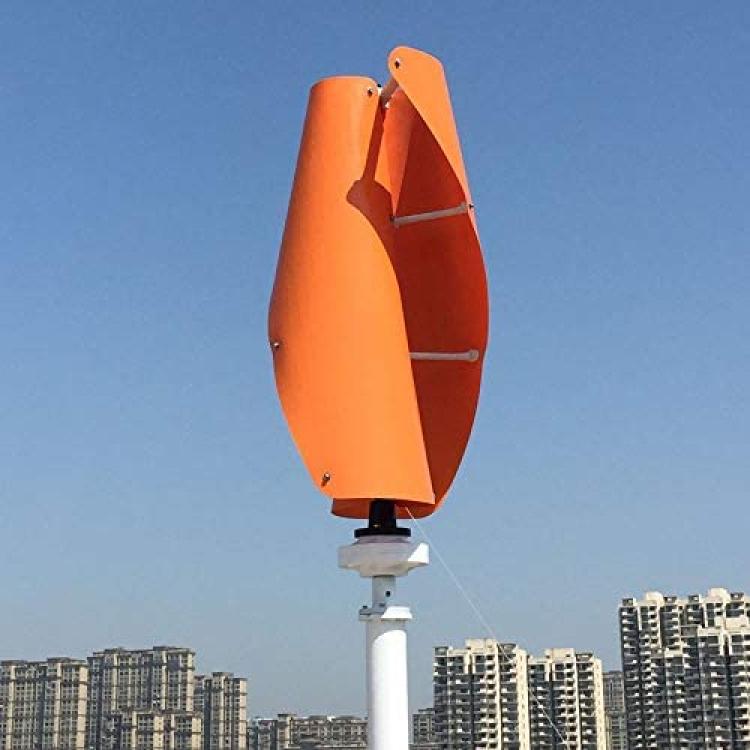

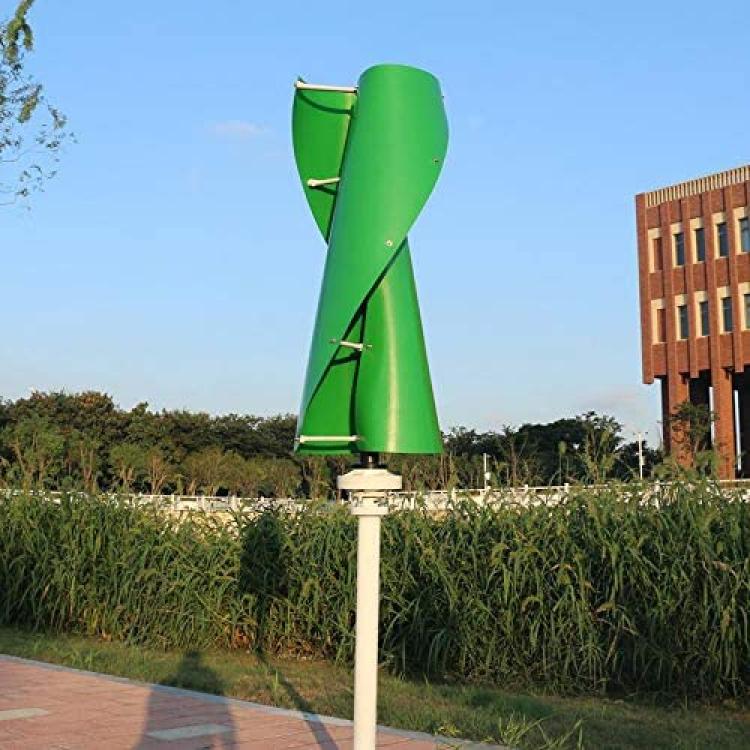

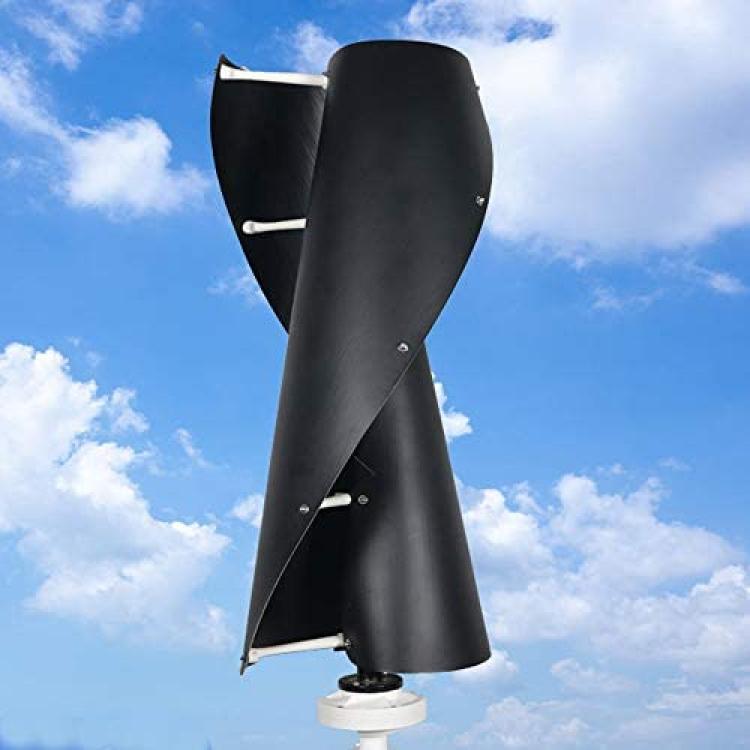

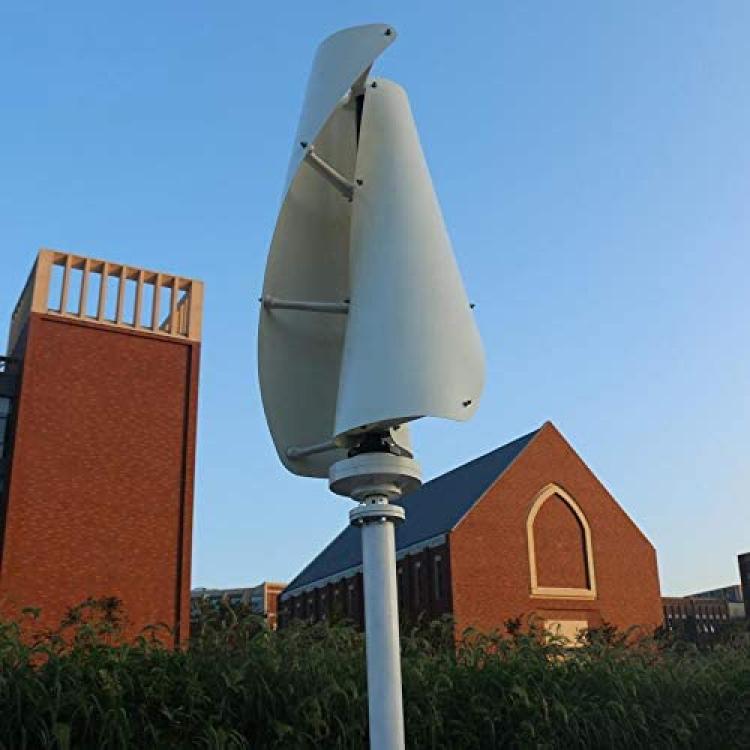

NINILADY 600W Vertical Wind Turbine Permanent Magnet Generator 3 Phase 12V 24V 48V Vertical Axis Coreless Wind Power (48V with Controller, Green)
Description
Item: FS-V-600
Started wind speed (m/s): 1.3 m/s
Cut-in wind speed (m/s): 2.3 m/s
Rated Wind speed (m/s): 12 m/s
Rated voltage?DC?: 12/24V/48V
Rated power?W?: 600W
Max power?W?: 650W
Rotor Diameter of Blades?m): 0.52
Blades Height?m): 1.3(no generator) , 1.42 (include generator and Flange)
Safe wind speed (m/s) : Max wind speed??40m/s?The instantaneous maximum wind speed?45m/s
Blades quantity: 2
Blade material: glass/basalt

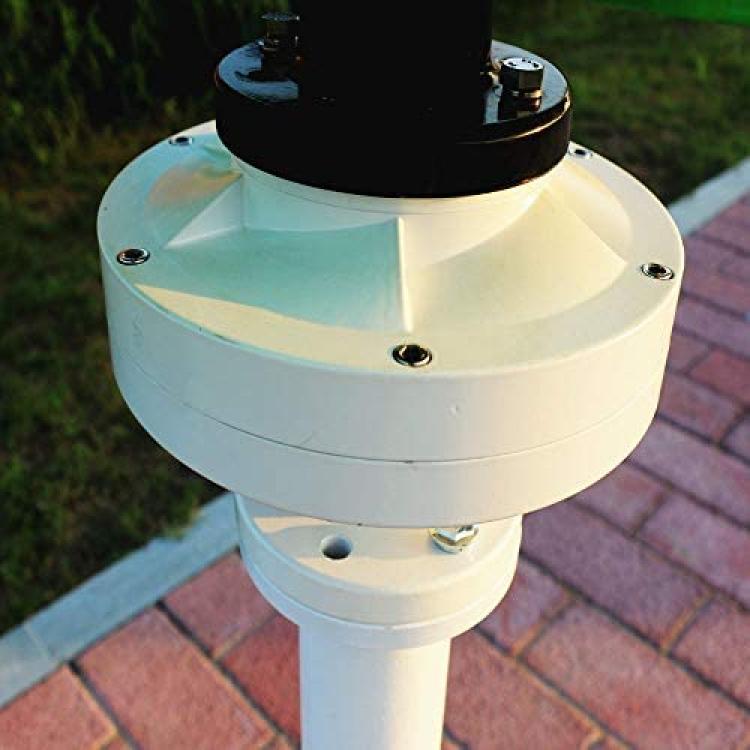

Generator: Three phase permanent magnet suspension motor
Control System: Electromagnet
Mount Height?m): 7~12m ?9m?
Generator protection grade: IP54
Work environment temperature:
VAWT -25~+45?
controller -10~+45?
Inverter 0~+40?
Work environment humidity: VAWT ?90%?
Controller and inverter?80%
Altitude? ?4500m
Product assembly weight (Kg): <24Kg
Overspeed protection: Electromagnetic brake
Overload protection: Electromagnetic brake and the unloading unit
