Marsrock 600r/m 100W 12V or 24V Permanent Magnet Generator AC Alternator for Vertical or Horizontal Wind Turbine 100W Wind Generator (12V)

Model Number:G100S

Type:Wind Power Generator

Rated Power:100W

Max Power:130WRated

Voltage:12V

Rotate Speed:600r/m

Net Weight:3kg

Gross Weight:3.5kg

Output Current :AC

Start Torque: 0.12Nm

generator :3 phase permanent magnet synchronous generator

Insulation Class: F

Service Life: More Than 20 years

Bearing :HRB

Shaft Material :stainless steel

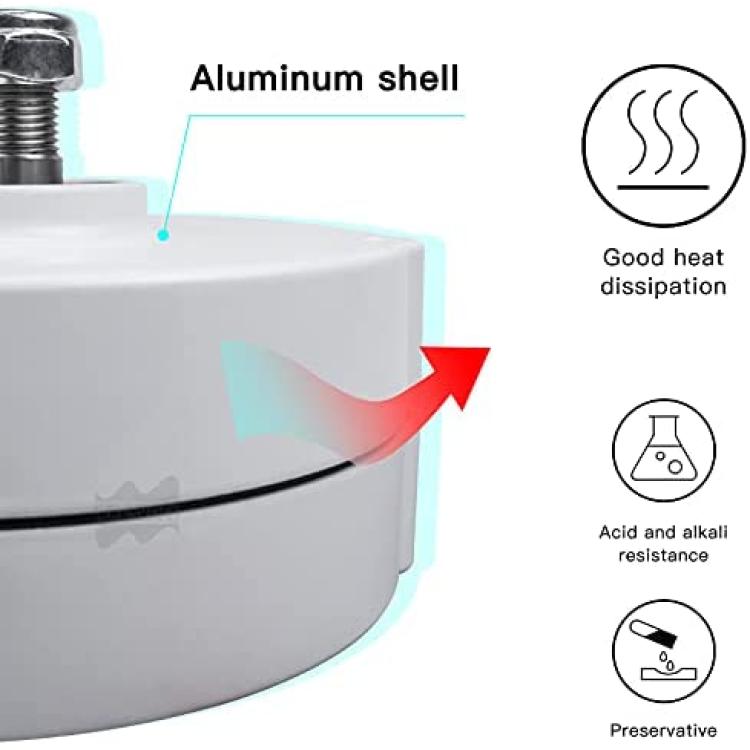

Shell Material :aluminium alloy

Permanent Magnet Material: Rare Earth NdFeB

Protection Grade: IP54

Lubrication Lubrication: Grease

Working temperature :-40? - 80 ?

What kind of region can be installed wind turbine?

Small wind turbines should be applied in the regions which wind resources is sufficient. The annual average wind speed should be more than 3m/s, the effective wind speed 3-20m/s should be more than 3000h in accumulation per year. The density of 3-20m/s effectively average wind power should be more than 100W/m2.

It should be noted that choosing the rated design speed wind turbine is in conformity with local design speed. It is significantly in making use of wind resources and in economic aspect. Wind tunnel test proves that the fan power transformation of the impeller in the direct ratio with wind speed, that is to say, the wind speed decide the output electrical power.
