Wind Generator, 400W 12V/24V Wind Turbine Generator 5 Blade Low Wind Speed Starting Windmill with Wind Controller for Home, Camping(12V)
Description
Specification:
Model: HD - 420
Type:12V/24V(Optional)
Rated power :(w) 400
Maximum power :(w) 420
Rated voltage :(v) AC12or24
Brake voltage :(v) AC13.5or26.5
Diameter of wind wheel :(m) 1.2
Starting wind speed :(m/s) 2.5
Rated wind speed :(m/s) 12
Safe wind speed :(m/s)40
Yaw mode: fixed wing type
Generator structure: horizontal shaft
Motor type: three - phase permanent magnet generator
Body material: die-cast aluminum
Number of leaves: 5
Blade material: high strength imported PBT composite
Packing size :(mm) 672mm/350mm/210mm
Rated speed: 650 RPM
Braking mode: electromagnetic braking

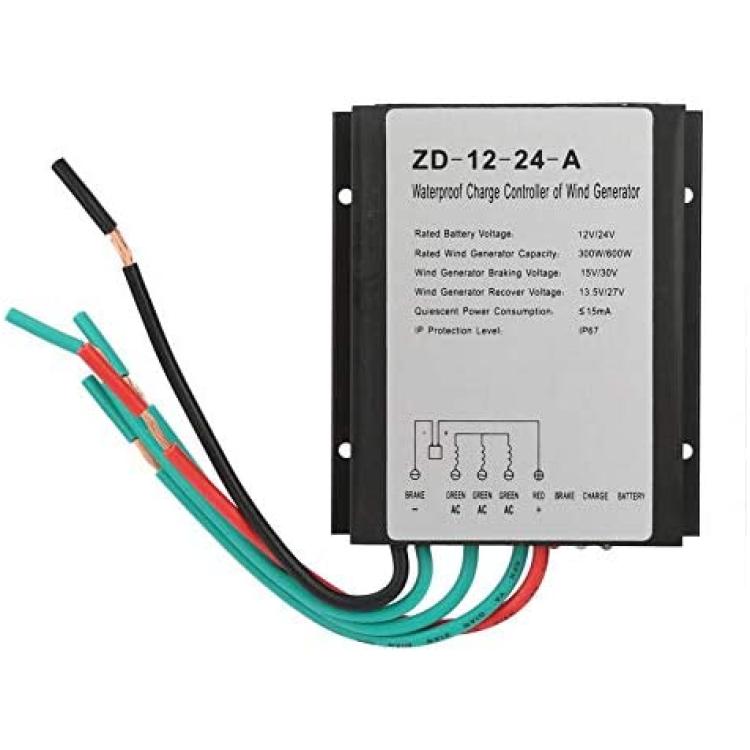

Control system: 12/24v automatic identification fan special controller
Blade color: white
Weight: 10.61kg / 23.4 lb(approx.)
 Â
Package list:

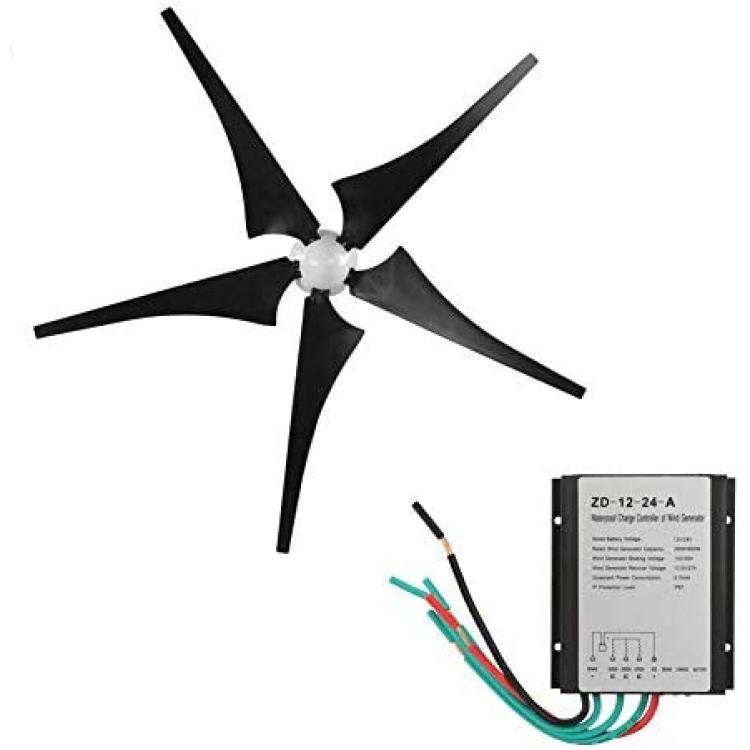

1 x wind turbine body
5 x blades
1 x hub
1 set x screw
1 x controller
1 x user manual
