RaeSung LIXiSE LXC706 Generator Controller Diesel Generator Auto Start Control

FEATURES

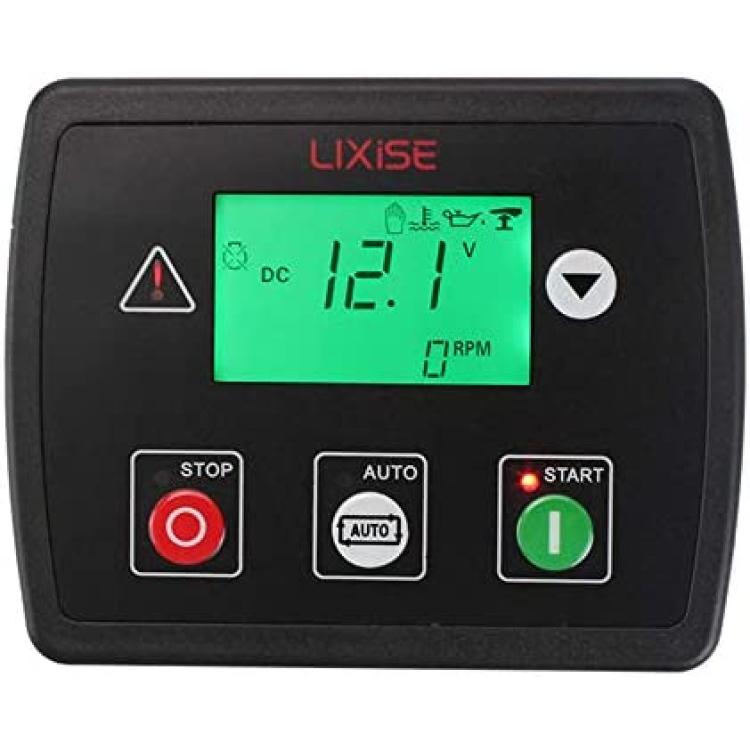

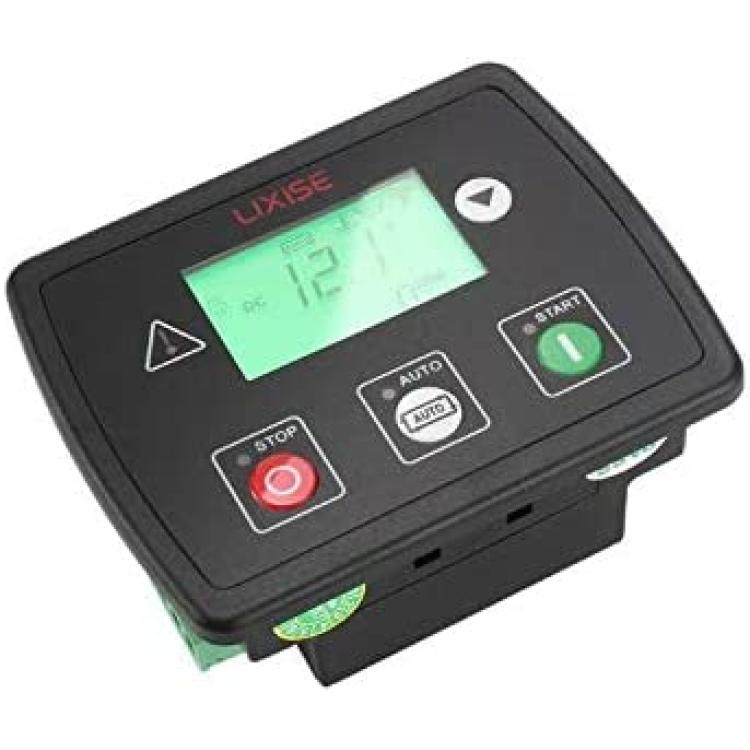

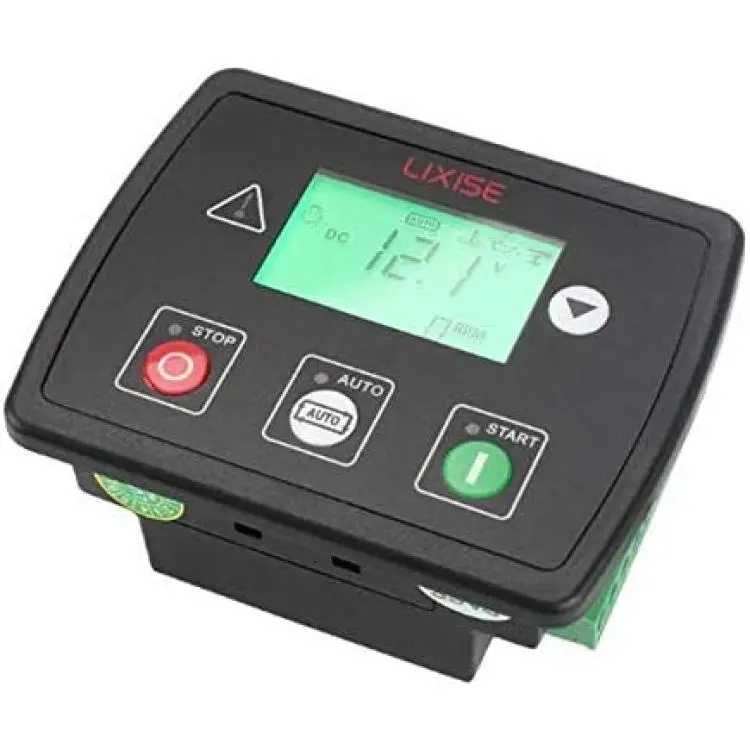

*Emerald green backlight, generator parameters are clearly visible during the day and night.

*LCD icon display alarm, alarm information is visual, universal.

*On the LCD digital display a variety of generator parameters.

*The PC panel with durable, waterproof.

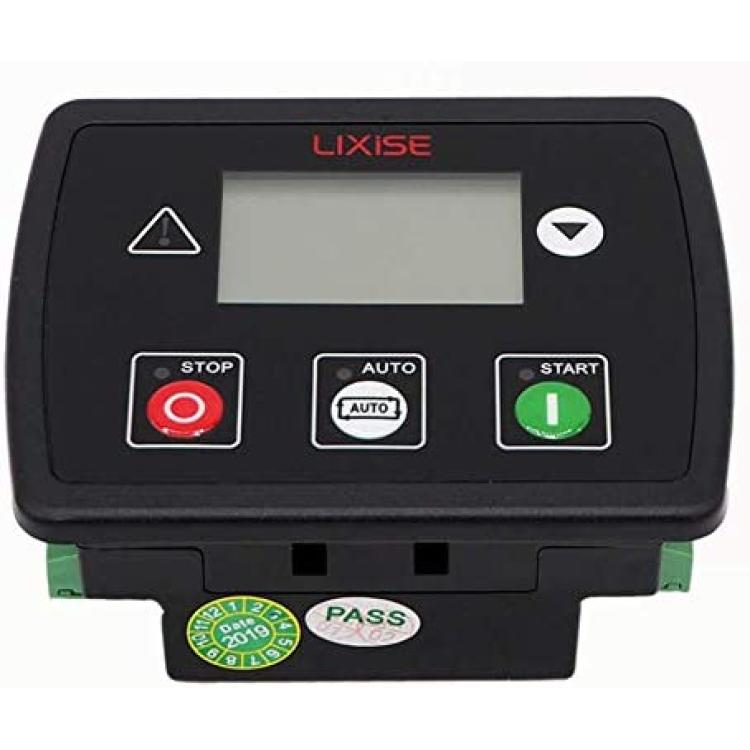

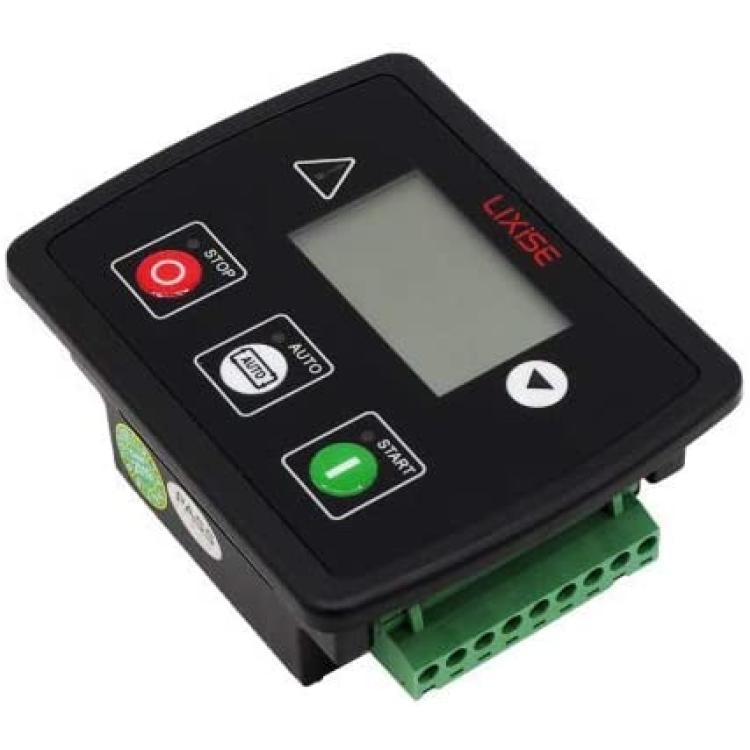

*The control panel, easy realization of generator start stop, reduce the user connection.

*All parameters can be set on the panel, convenient debugging and maintenance.

* Set all the configuration parameters and monitoring computer through USB connection.

*Ultra small size, suitable for small generator, intelligent control is particularly suitable for small

gasoline generator.

*Equipped with a shockproof rubber ring, can achieve waterproof and shockproof panel.

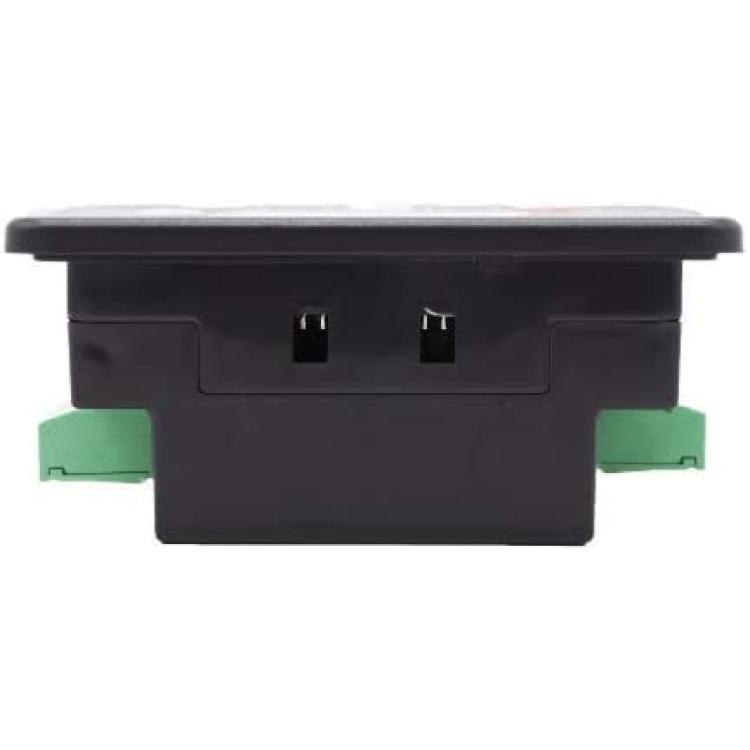

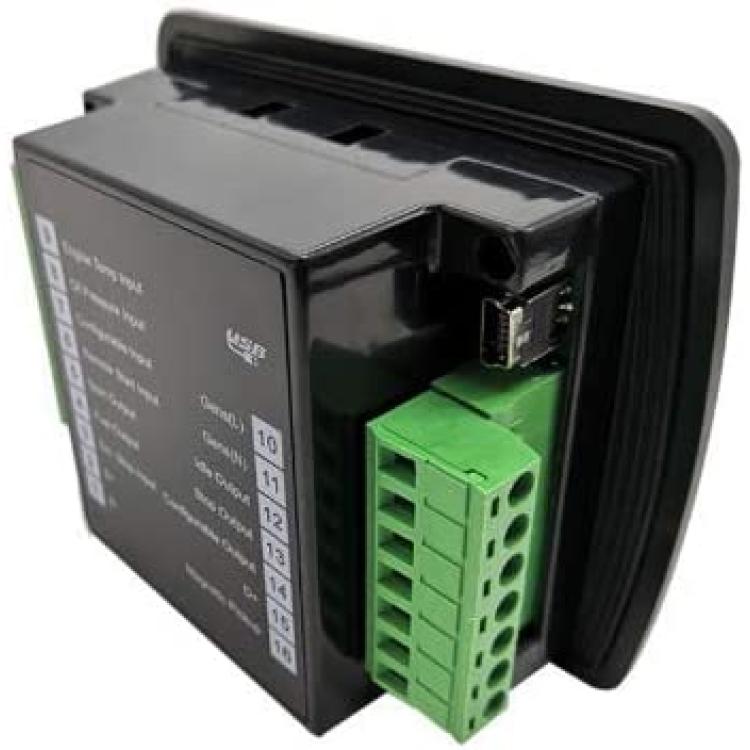

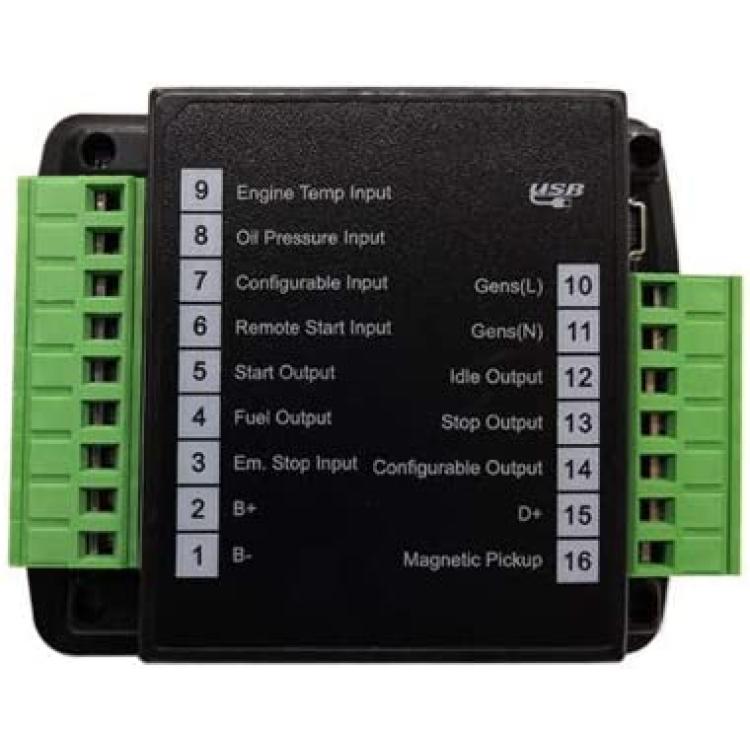

*Install the assembly, flame retardant ABS shell, pluggable terminal, embedded installation,

compact structure, convenient installation.

PERFORMANCE

*The power supply a wide range (8~35) VDC, can adapt different starting battery voltage

environment.

*The microprocessor as the core, for the LCD screen display icon symbols, light touch keys.

*With low oil pressure, high water temperature, over speed, and emergency stop, start failures

and so on protection and instructions.

*Can detect and display of power are: power voltage V, power frequency Hz, engine temperature

ºC, oil pressure kPa, speed rpm, total running time H, the battery voltage V, fuel level%.

*voltage of the generator, battery voltage, speed, temperature, pressure, liquid level sensor

threshold can be set, can achieve the following alarm or warning: low oil pressure, water

temperature, cylinder temperature high, speeding, less speed, emergency stop, failure to start,

stop, failure of power voltage is too high, too low, power frequency is too high or too low, the

battery
