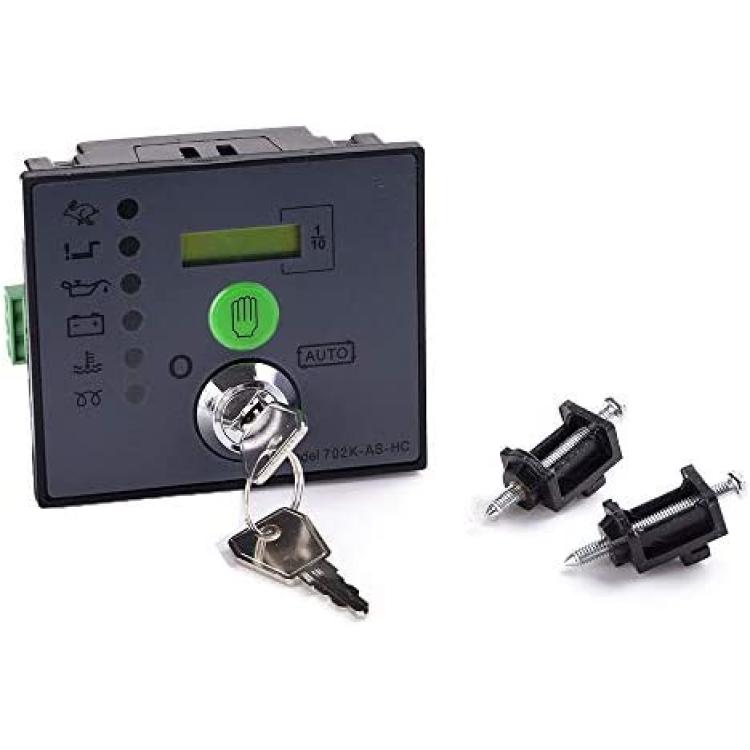

Knowtek DSE702AS DSE702 702K-AS Generator Controller Automatic Start Control Module with Keys

DSE702AS Generator Controller Automatic Start  with Keys 702K-AS DSE 702



DSE Generator Controller DSE702 DSE702AS



The DSE702 Generator Controller offers an excellent range of engine monitoring and protection features. The Generator Manual Start Control offers inputs to monitor low oil pressure, high engine temperature and over speed and the manual start version also has a user-defined auxiliary input. Auto Start versions also include an input option for a start signal from a remote location.

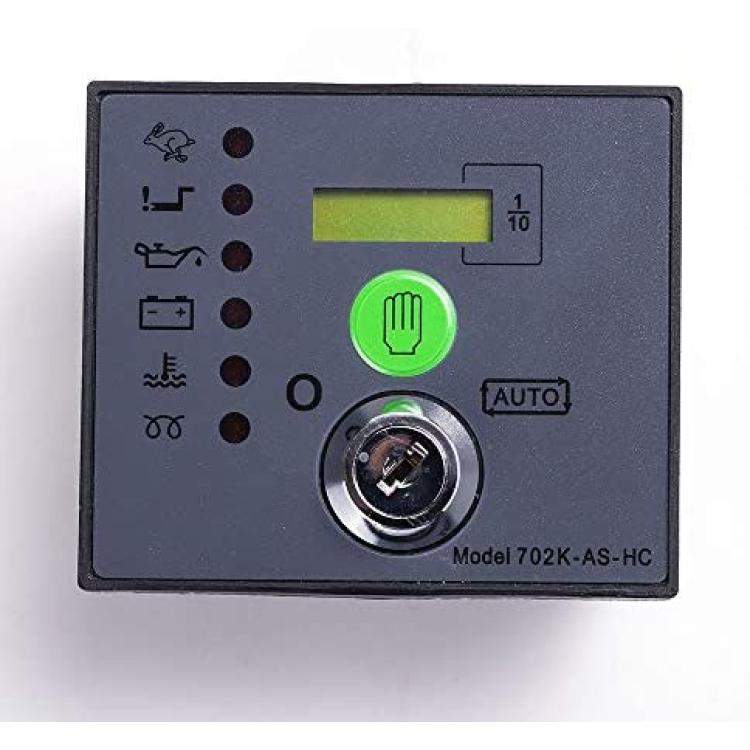

When the Generator Manual Control detects any of the above faults it will light the warning LED on the front panel.



The DSE702AS Controller also has the capability to monitor battery charging by utilizing the WL terminal on the charge alternator. On detecting a battery charging fault, it will light the warning LED on the front panel.



KEY FEATURES of Generator Controller DSE702

 Manual start and remote start versions

 Remote start input (auto start version only)

 Auxiliary shutdown input (Manual start version only)

 Engine monitoring and protection

 LED indication

 Engine pre-heat

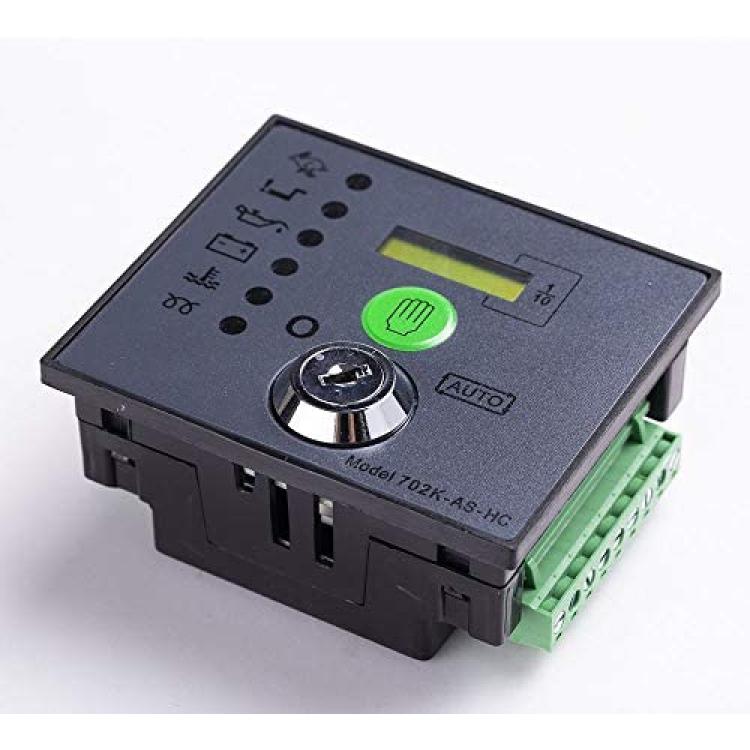

 Front panel mounting

KEY BENEFITS of DSE Controller DSE702AS

 Multiple engine parameters are monitored simultaneously



DC PROVIDE

CONTINUOUS VOLTAGE RATING

8 V to 35 V continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing provide was at least 10 V before dropout and provide recovers to 5 V. This is achieved without the need for internal batteries.

OUTPUTS of DSE702

START

Solid state 1.2 A negative grounding terminal

RUN

Solid state 1.2 A negative grounding terminal

PRE-HEAT

Solid state 1.2 A negative grounding terminal

...
