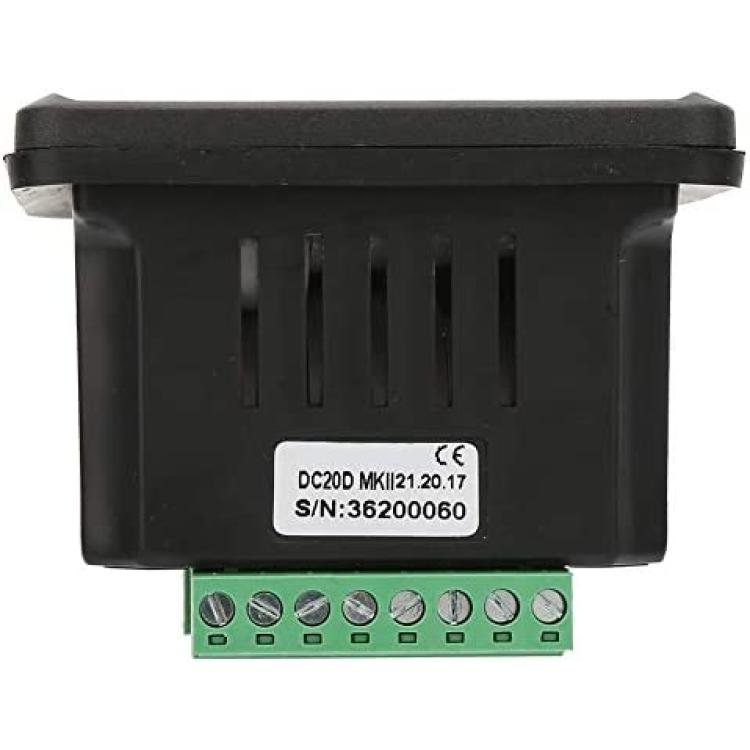

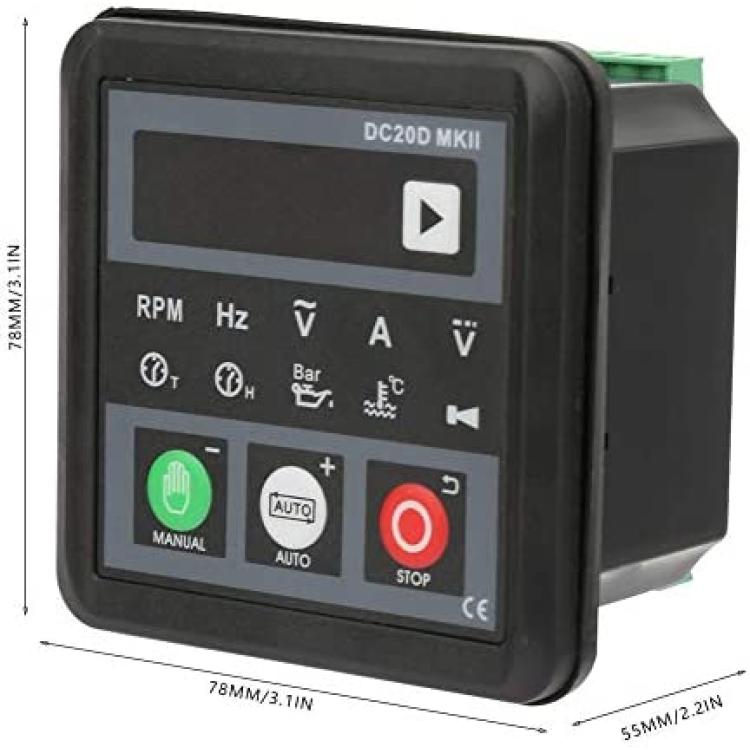

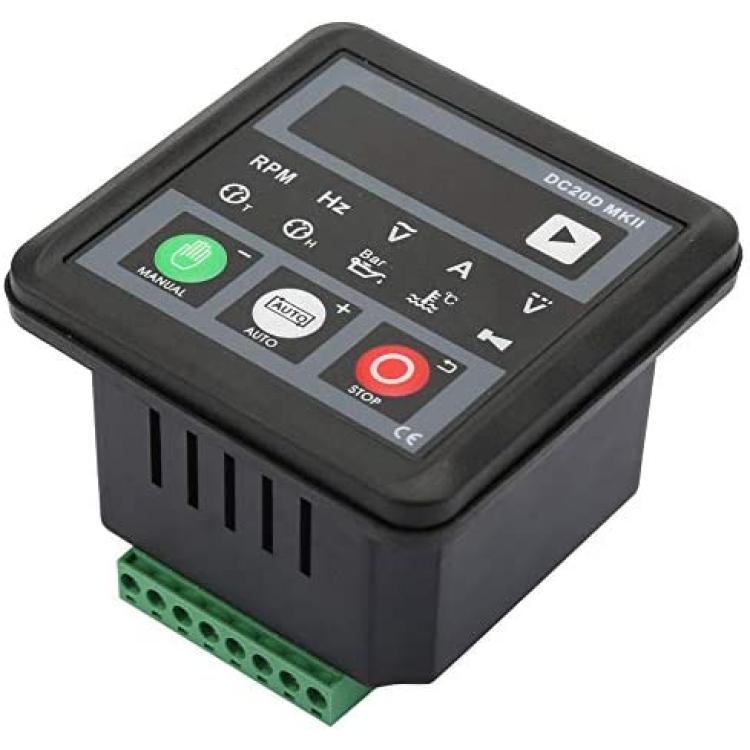

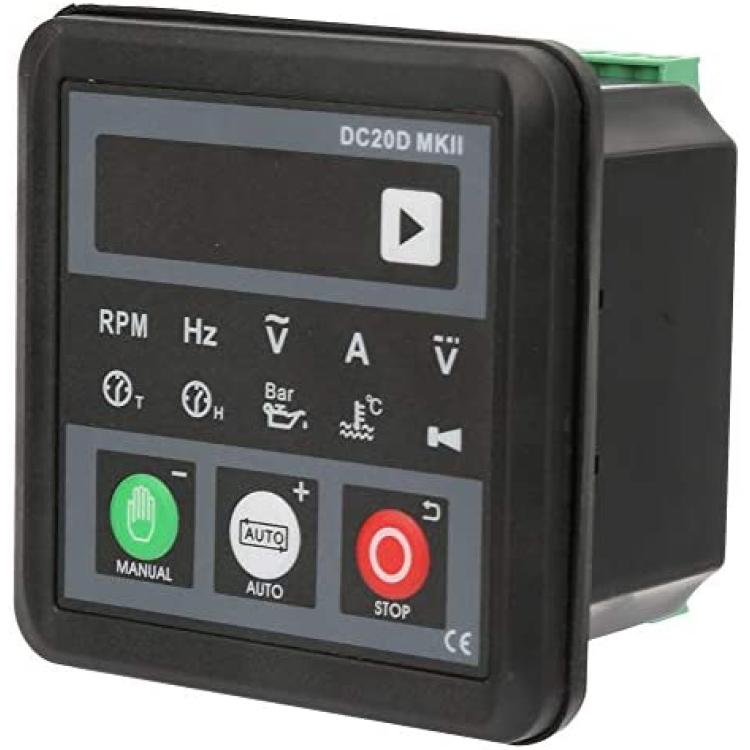

PUSOKEI MKII Small Genset Controller, with Auto Start/Stop Function Air Cooled Genset Controller for Diesel Engine or Generator

Features:
1. DC20D is one module used for Diesel Engine or Generator.
2. It is with the functions of Auto Start/Stop, Protection and Alarm indication. DC Power and Running situation is indicated on the front panel.
3. The status of the engine and generator can be checked conveniently.
4. Over Frequency, Low Frequency, Over Voltage, Under Voltage, Low Oil Pressure, High Temperature, Low Water Level, Low Oil Level, Charge Failure, Over-time Stop, Emergency Stop Alarm System as well as Low Battery Voltage can be indicated in time.
5. Add current, speed measurement display function, add RS485 interface, can be connected to the computer.
6. The output contact adopts relay, which can withstand large output current, and can set system parameters according to the button, so as to meet the application of different occasions.

Main Functions:
Manual / automatic start, stop
5-digit LED digital tube shows unit operating status and parameters
LED indicator and fault display alarm indication
Two sets of programmable output relays
Application for various kinds of Engine by self-setting.
Front panel IP54 protection rating

Control Function:
Automatic control of the car
Start delay control
Local manual start/stop
Remote automatic start/stop
Preheat control
Automatic cold control
Parking/idle control
Damper control

Parameters Display:
Engine speed
Generator frequency
Generator AC voltage
Load current
Engine battery voltage
Current running time
Cumulative running time
Engine oil pressure
Engine water temperature
