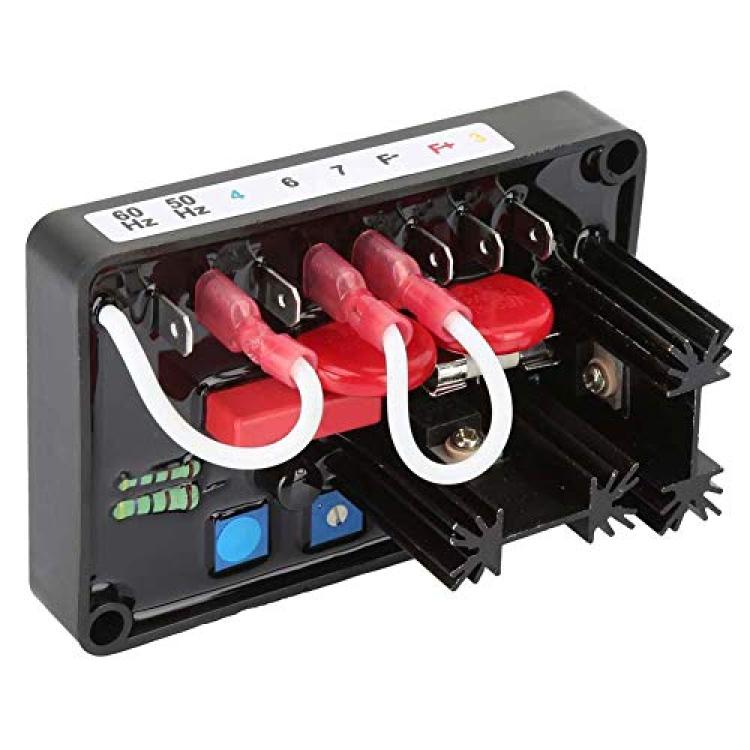

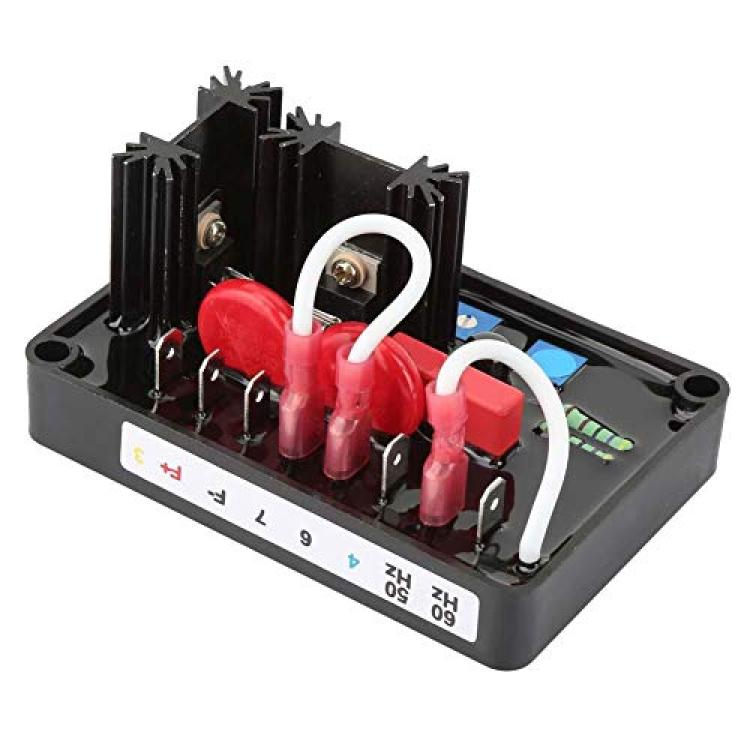

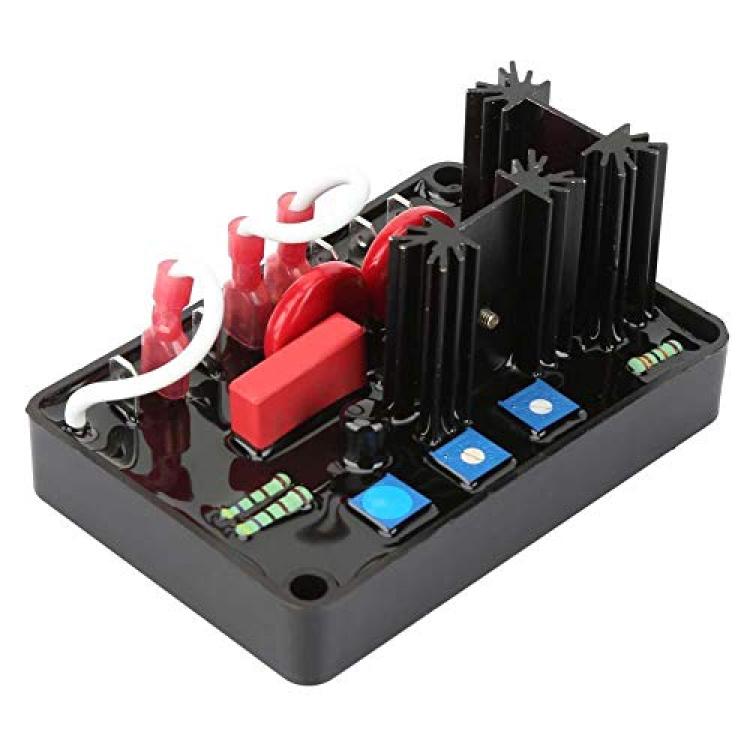

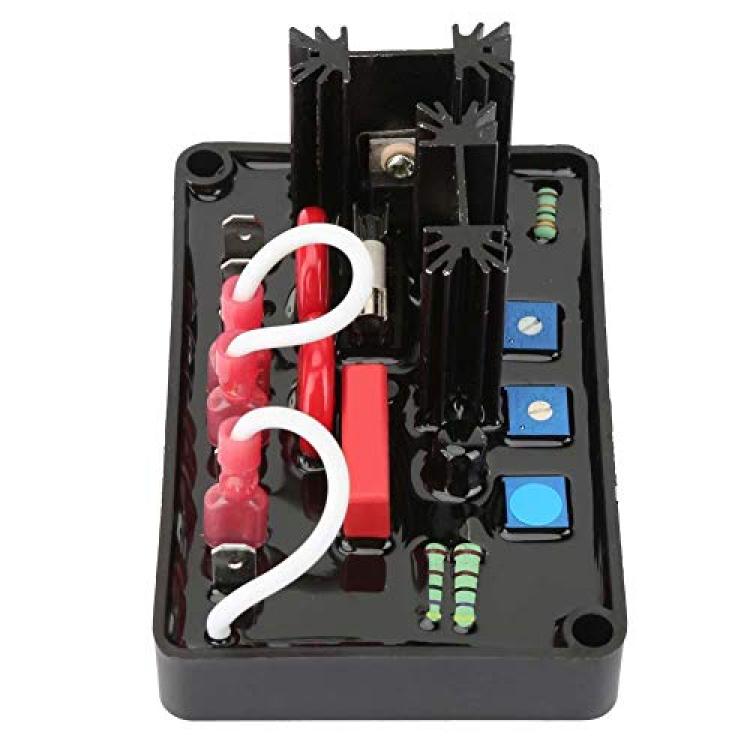

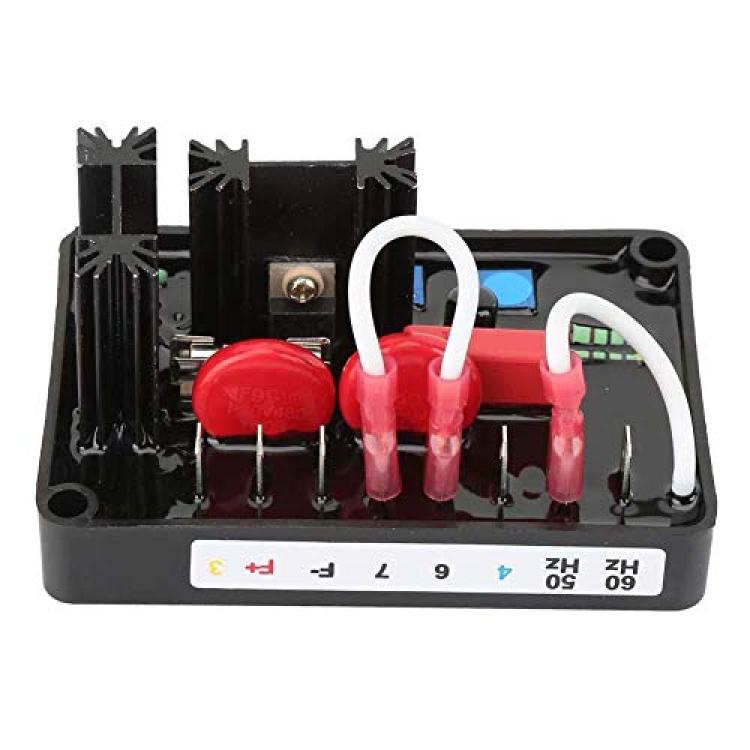

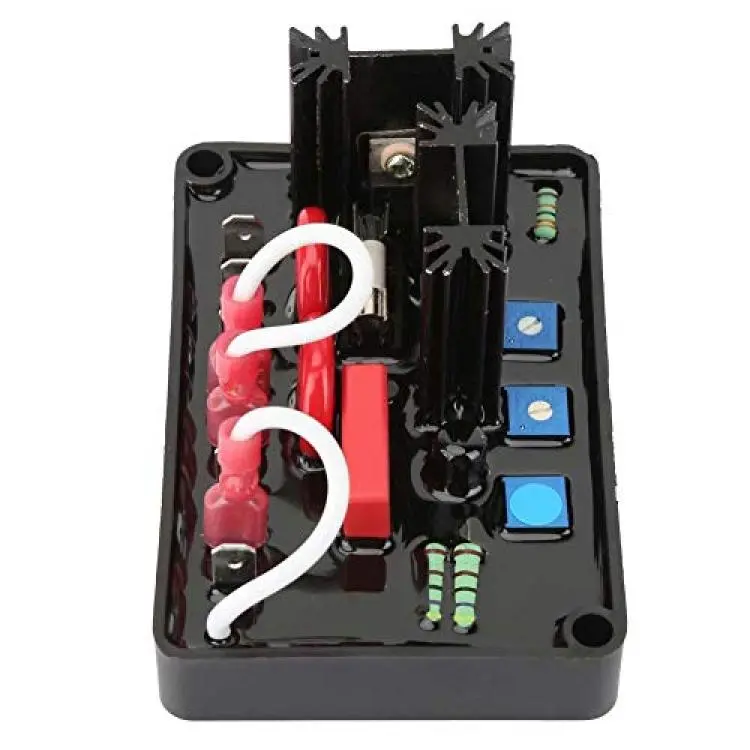

Voltage Regulator, AVC63-4 Input 190-240VAC Automatic Engine Voltage Controller Voltage Control Module AVR Generator Accessories
Availability: Pre-Order, Inquiry Price
About this product
*★★★【AVR Generator Accessories】This is a engine voltage regulator, AVR, rectifier. Maximum voltage of 73VDC at 220VAC input.

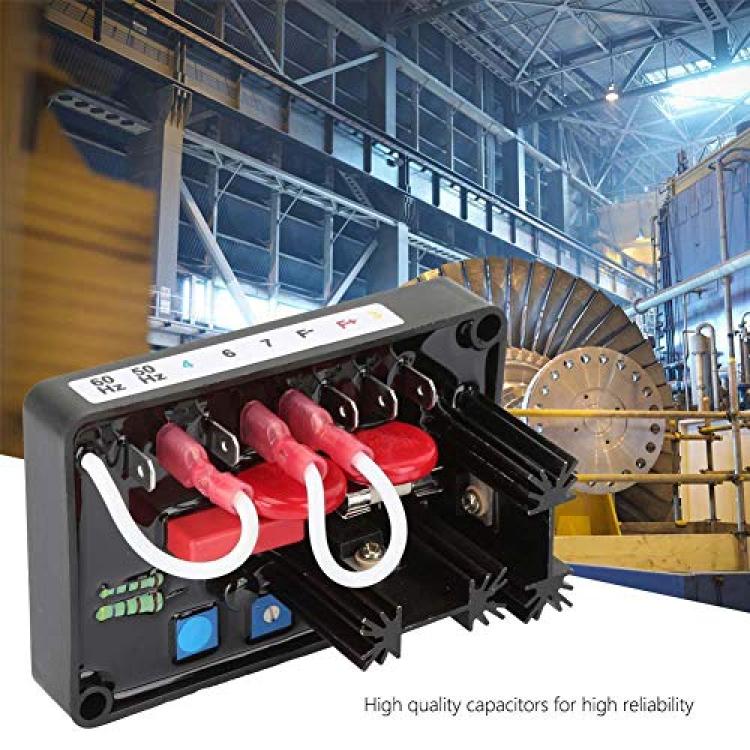

*★★★【AVC63-4 Voltage Regulator 】High quality capacitors for high reliability. External voltage regulation: ±10%, with 2kΩ 1W trimmer.
*★★★【Control Output 】It is an encapsulated automatic electronic voltage regulator that controls the output of the generator by regulating the current into the exciter field. EMI suppression internal electromagnetic interference filtering.
*★★★【Product Adjustment】The low frequency protection 60Hz system presets the inflection point to 54-61Hz, and the 50Hz system presets the inflection point to 45-51Hz. Maximum power consumption per unit is 8W.
*★★★【Quality Assurance】We stand behind the quality of our products We provide 30-day money back.if you have any question please contact us, we will respond within 24 hours.
Description
This AVC63-4 voltage regulator is an encapsulated automatic electronic voltage regulator that controls the output of the generator by regulating the current into the exciter field. The low frequency protection 60Hz system presets the inflection point to 54-61Hz, and the 50Hz system presets the inflection point to 45-51Hz. Maximum power consumption per unit is 8W.
Features:
1. This is a engine voltage regulator, AVR, rectifier.
2. High quality capacitors for high reliability.
3. EMI suppression internal electromagnetic interference filtering.
4. The low frequency protection 60Hz system presets the inflection point to 54-61Hz, and the 50Hz system presets the inflection point to 45-51Hz.
5. Maximum power consumption per unit is 8W.
Specification:

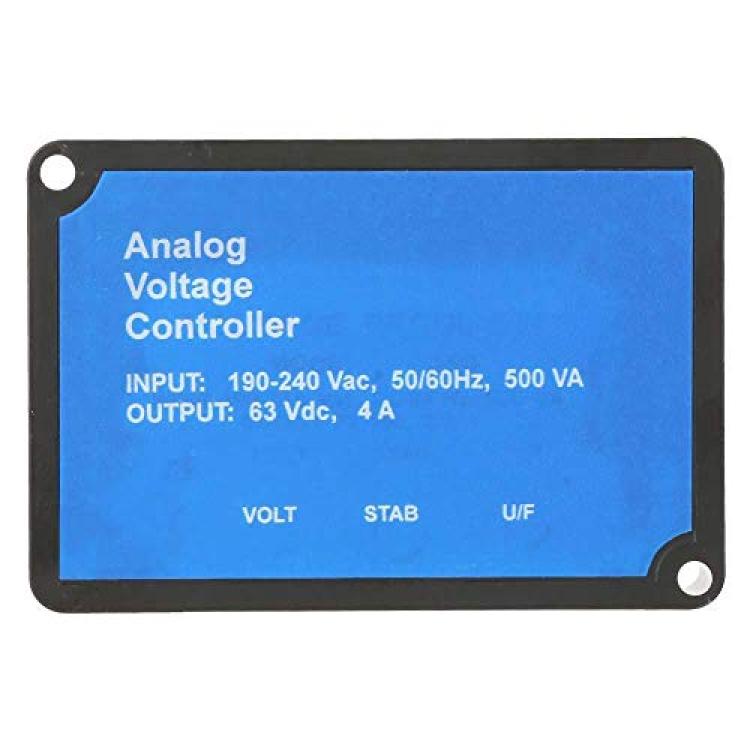

Voltage: 190-240VAC
Maximum voltage of 73VDC at 220VAC input
Frequency: 50/60Hz, jumper optional
Current continuous: 3.5A, intermittent: 7A 10 seconds (52/105Vdc)
Resistance: minimum resistance 15?, maximum resistance 100?
AVoltage accumulation: Residual voltage of AVR terminal >5V AC
Voltage regulation: <±1% when the engine is adjusted to 4%
Working temperature: -40 °C to +60 °C
Storage temperature: -65 °C to +85 °C
External voltage regulation: ±10%, with 2k? 1W trimmer
Size: about 99.5mm * 67mm * 47.5mm / 3.9 * 2.6 * 1.9in
Weight: 250g ± 2%
Package list:
1 * Voltage Regulator
1 * User manual
