DC 12V 24V 3000N Electric Linear Actuator Linear Motor Moving Distance Stroke 50mm 100mm 150mm 200mm 250mm 48W 4A (400mm Stroke length,12V 3000N)
About this product
*Limit Switch: The telescopic rod will automatically stop when it reaches the top/bottom. Make sure the motor will not burn empty.
*Stop Anywhere: stop at any position, with machine lock, safe and secure.
*Metal gears: powder alchemy technology, pure metal gears, double strength and toughness.
*Aluminum Alloy Material: The surface has undergone 27 polishing processes, and the structure design is tight.
*Low Resistance More Power-Saving: the wire uses oxygen-free pure copper as the conductor, low resistance, durable and safe to use.
Description
Origin : CN(Origin)
Certification : ce
Continuous Current(A) : 12V 4A / 24V 2.5A
Commutation : Brush
Model Number : Linear Actuator 3000N
Type : Gear Motor
Protect Feature : Drip-proof
Output Power : 48W
Construction : Permanent Magnet
Torque : 3000N
Usage : BoAt
Usage : car
Usage : Electric Bicycle
Usage : Fan
Usage : Home Appliance
Efficiency : IE 1

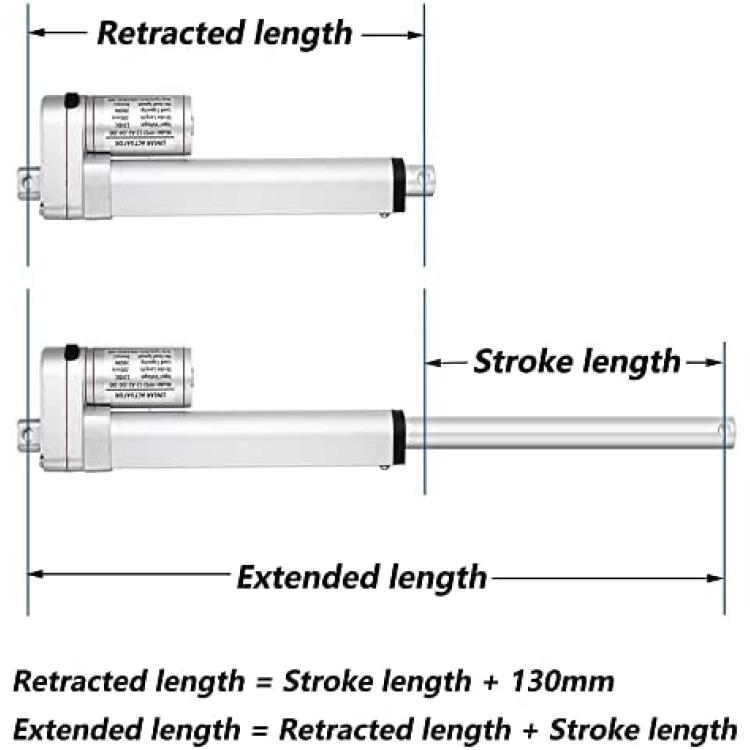

Stroke length : 50mm - 1000mm
Limit switch : Built-in limit switch
Noise level : < 50dB
