DC 12V Linear Actuator 750N Max Lift 100mm Stroke Electric Motor for Electroic Medical Auto Use
Availability: Pre-Order, Inquiry Price
About this product
*Electric putter, also known as push rod motor, electric cylinder and linear actuator
*The electric putter is an electric drive that converts the motors rotational motion into a straight reciprocating motion of the push rod
*Can be used in a variety of simple or complex process as the implementation of mechanical use, in order to achieve long-range control, centralized control or automatic control
*The linear actuator is widely used in number of industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on
*With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc
Description
Specifications:

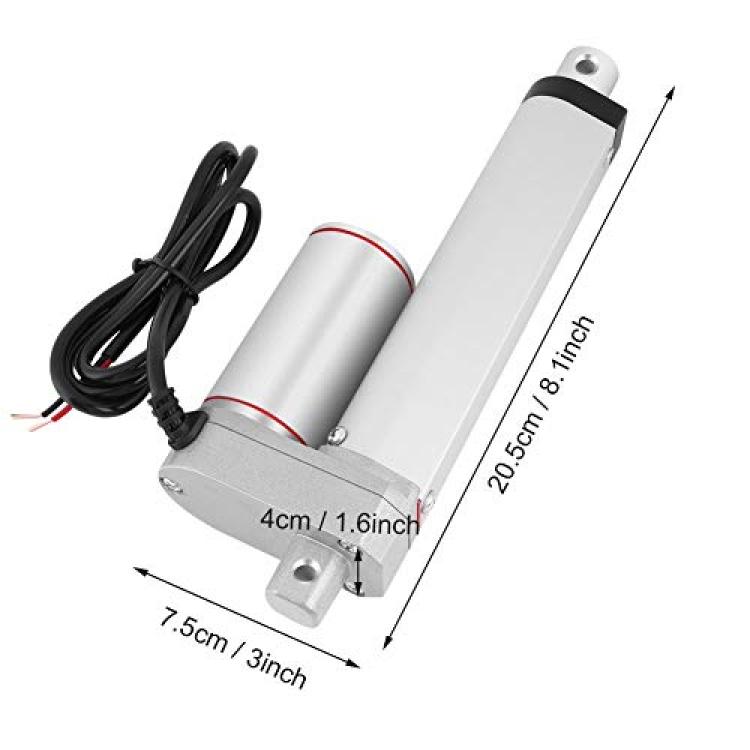

Size: 20.5 × 4.0 × 7.5cm/8.1 × 3 × 1.6inch
Weight: 1070 g
Permanent Magnet DC Motor Drive Voltage: 12V DC

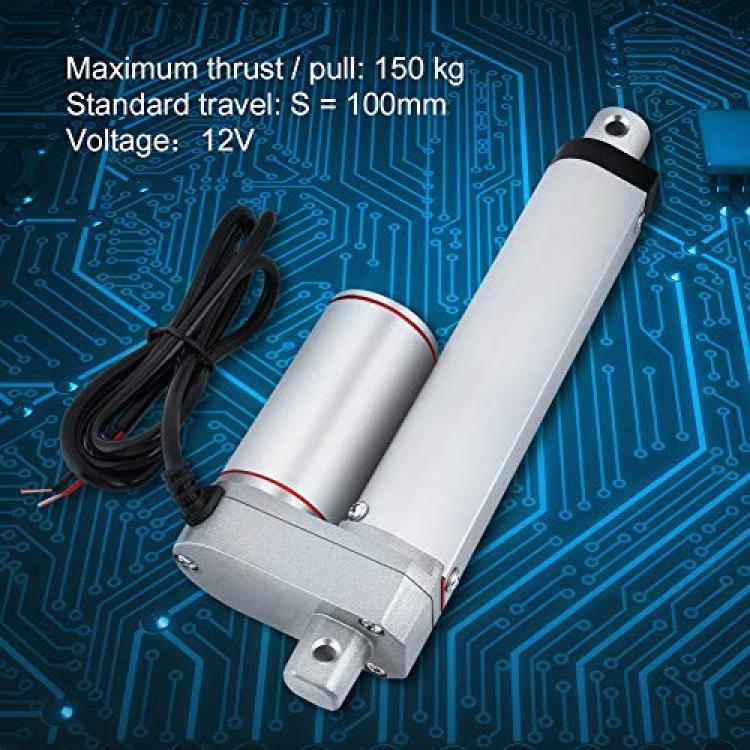

Maximum Thrust / Pull: 750N
Standard Stroke: S = 100mm
Minimum Distance(the distance between the front and rear of the two holes) :L = S(stroke)+ 105mm putter between two holes = 2XS(travel)+ 105mm
No Load Speed: 10 / s
Speed and Thrust Relationship: 5mm / s (kg) -50s (50kg)
Standard Protection Level: IP54
Noise Level: ?50 dB

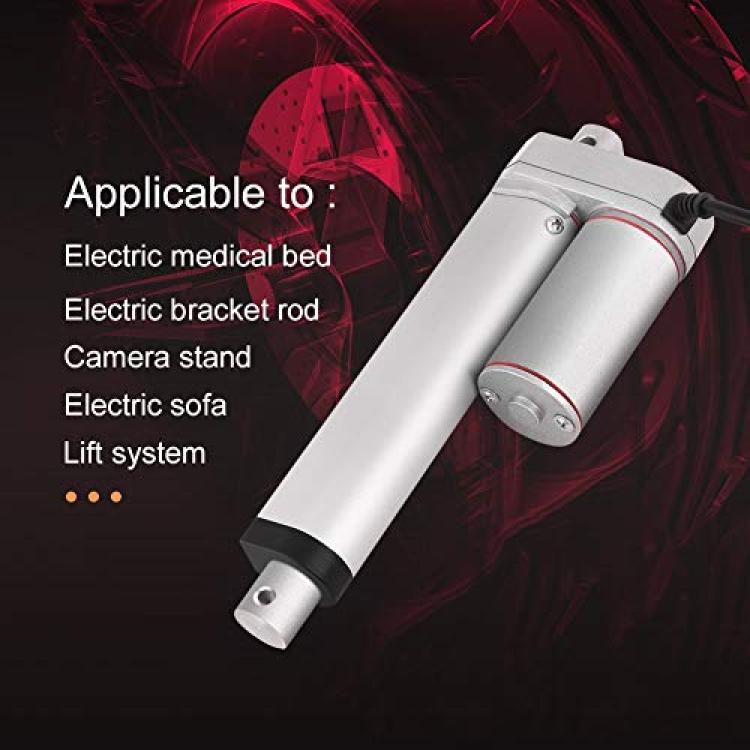

General Application:
1. As a great little pusher, linear actuators are used to adjust helms and doors, lift tables and other apparatus, adjust the TV antennae and regulate the many valves used in the systems.
2. In daily life uses, linear actuators can be used to open doors, lift tables, raise flat screens at home and in buses, in floor cleaning machines and mobile traffic signs, automated spice rack etc.
3. Trucks use linear actuators to adjust spoilers and tilt the cabins.
Package Included:

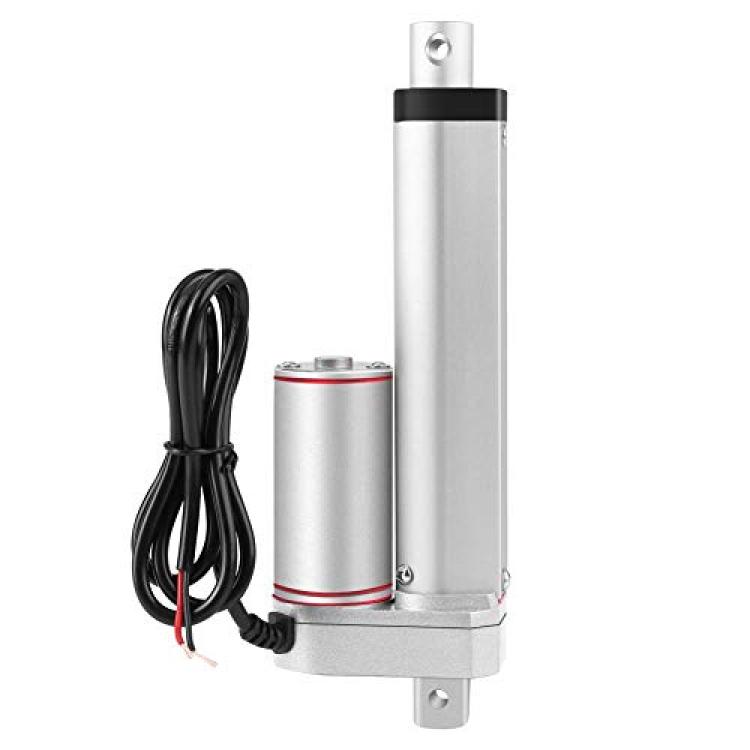

1 × Electric Linear Actuator Motor

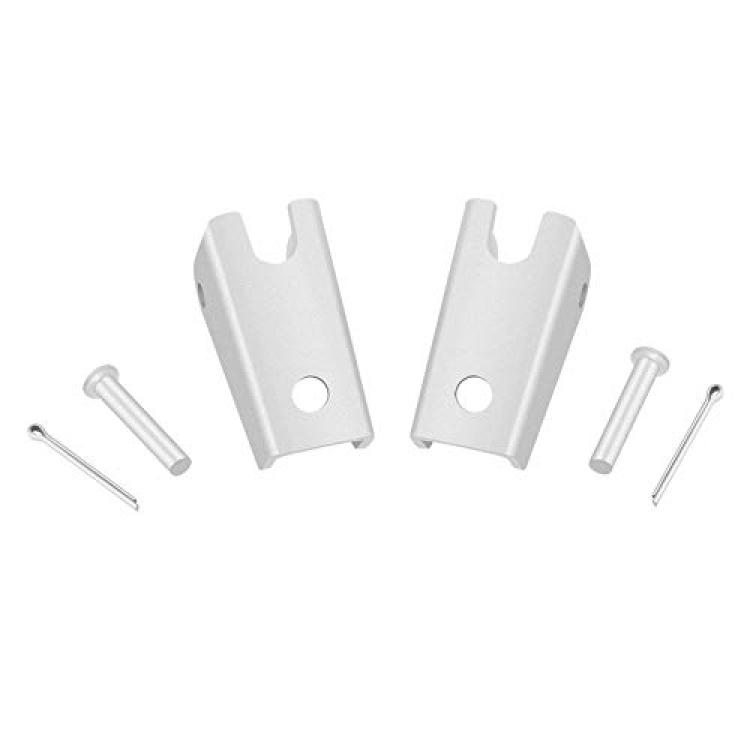

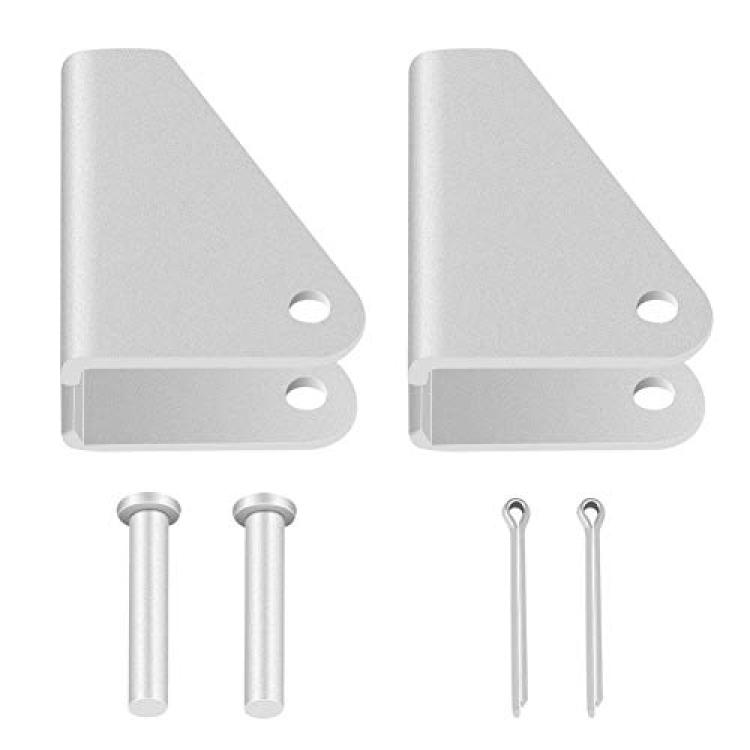

2 × Bracket
2 × Bolt
2 × Cotter Pin for The Linear Actuators
Note:
1. The input voltage should be within that range.
2. Do not inflow water inside.
3. Do not make the positive and reverse turn in a short time.
4. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.
5. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
