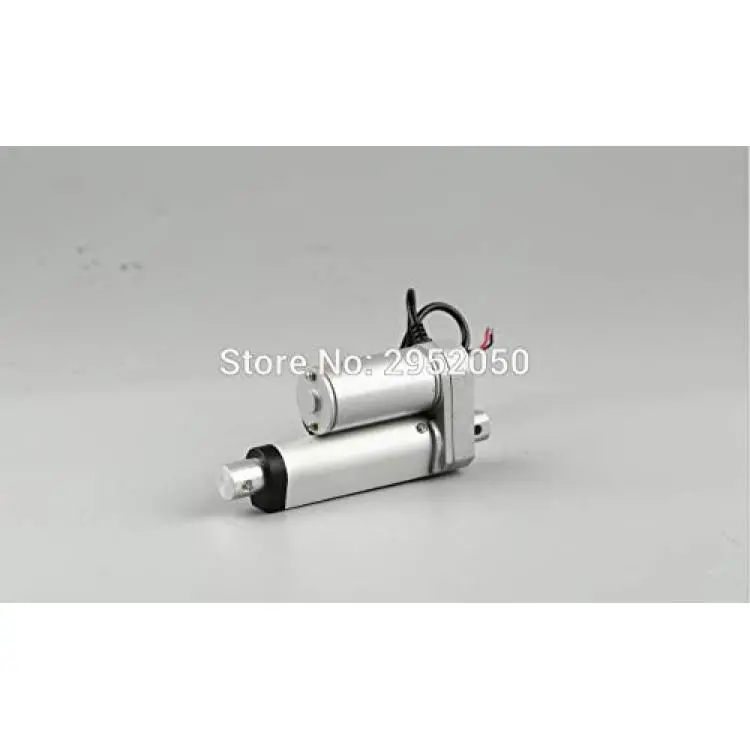

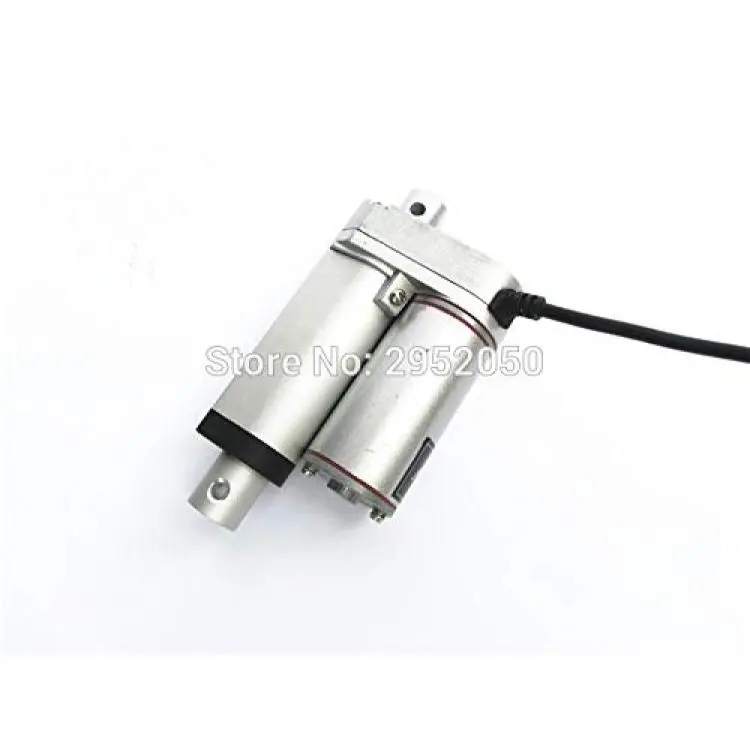

Ochoos Electric Linear Actuator 12v 100mm Stroke 1500N DC Motor Linear Motion Controller with Limit Switch XJ-TGZ-U2

We will be the default delivery 24v 100mm  1500 N  ,no-load speed at 10mm/s  linear actuator.
If you have other requirements,such as Stroke, Load, Speed, Voltage. My engineers will provide you special product and service.
Qty:1pc linear actuator

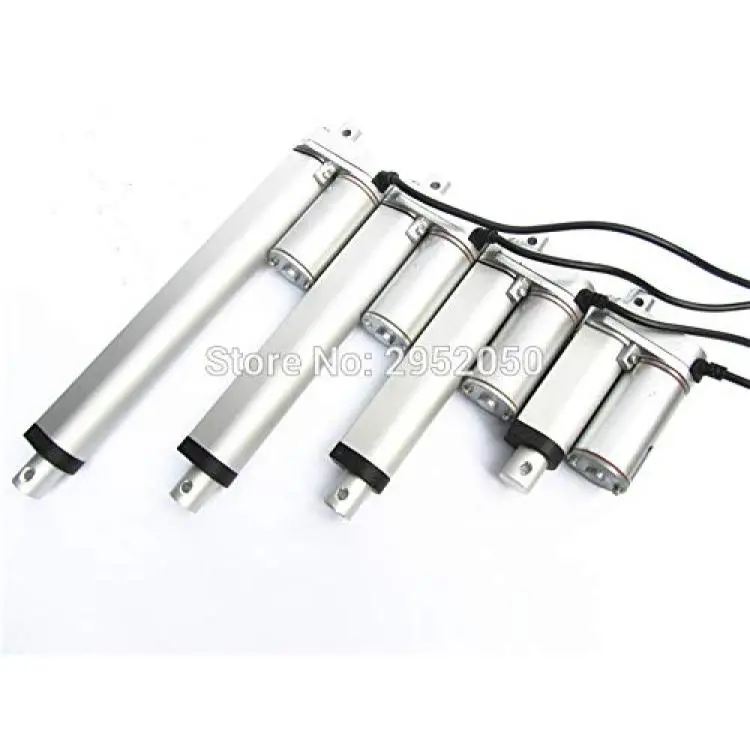

We can make any stroke  linear actuator (stroke 30mm---1000mm)
If you need other models please contact us  thank you!
if you want other parameter ,you can choose the following parameters:
12V   100MM   900N      6MM/S
12V   100MM   700N    10MM/S
12V   100MM   600N    20MM/S
12V   100MM   400N    25MM/S
12V   100MM   300N    30MM/S
12V   100MM   200N    40MM/S
12V   100MM   100N    40MM/S
(Leave message which speed you need)
Product parameters:
Drive voltage: 12VDC  or 24VDC (it can choose)
Maximum Thrust: 90KG/900N
Minimum installation size (fully retracted around in the middle of the distance between the two holes):                                    L1= Stroke+105 mm
Maximum installation size (fully extended around the middle of the distance of the two holes):                                                L = 2xS(stroke)+105mm
Ambient temperature :-26  to +65 degree
Protection class: IP 54
Built-in limit switches(When completed stroke, linear actuator automatically stops!)
Low noise design, noise levels below 42 db
Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest.                            If lower load can extend work time.
Maximum self-locking force 2300
Item specifics:
Model number: XJLA100
