Motor Regulator, PWM Speed Controller Easy to Carry Small Size Reversible Copper Clad Laminate with Indicator Light for Industry

Feature:
1. Excellent Quality Material: This motor regulator speed controller is made of high quality copper clad laminate material, with large bearing capacity, fatigue resistance, high strength and good heat resistance
2. High Performance: This motor speed controller has good practicability, can be used for long time, allows more current, high torsion, forward and reverse reversible
3. Portable: This motor speed controller is high accuracy and small in size, which is easy to carry and storage

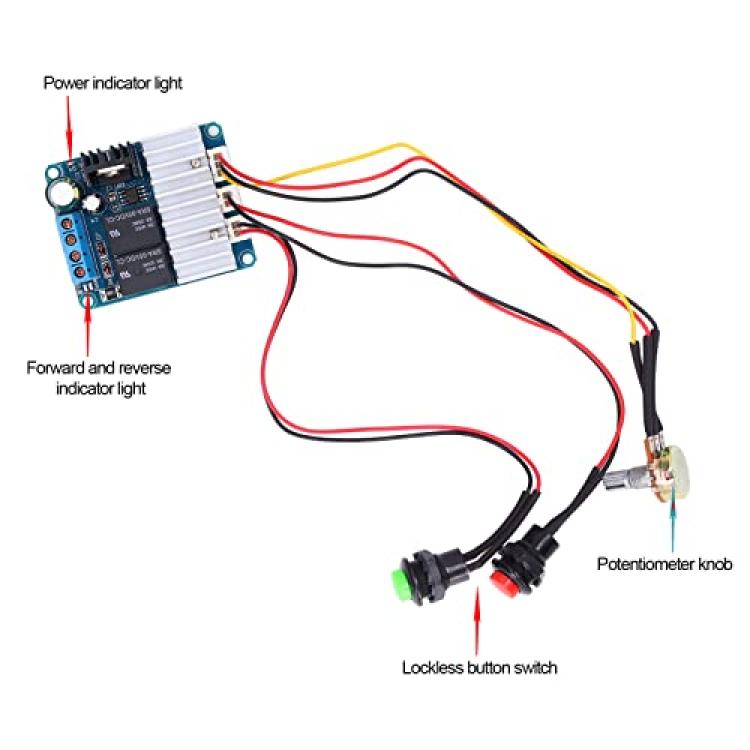

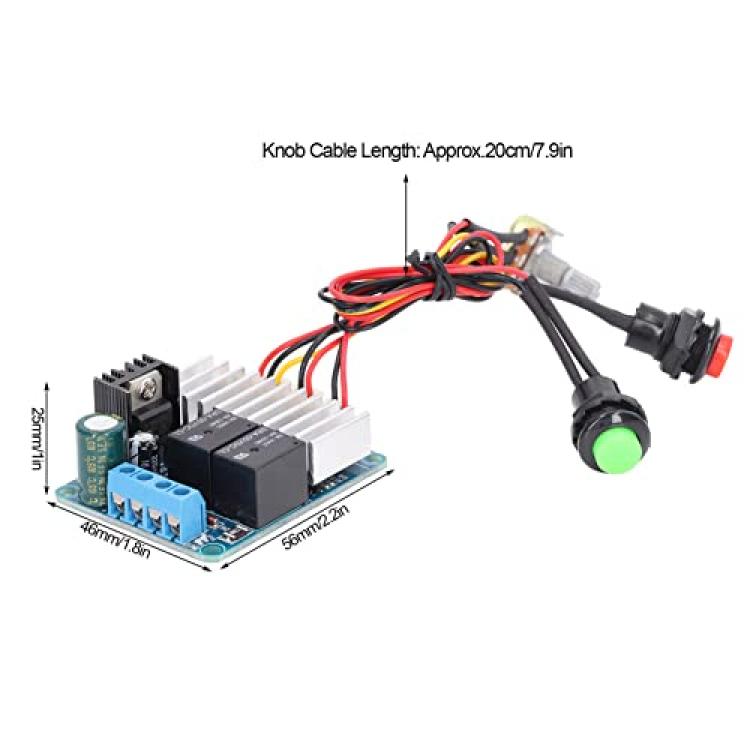

4. Configuration: The speed controller is with approx. 20cm/7.9in cable, and also has power, forward and reverse indicator light, which is convenient for installing
5. Wide application: This motor speed controller is widely used in TV, industrial motor, conveyor belt, lighting, computer power cooling, electric fan, etc.


How to Use:

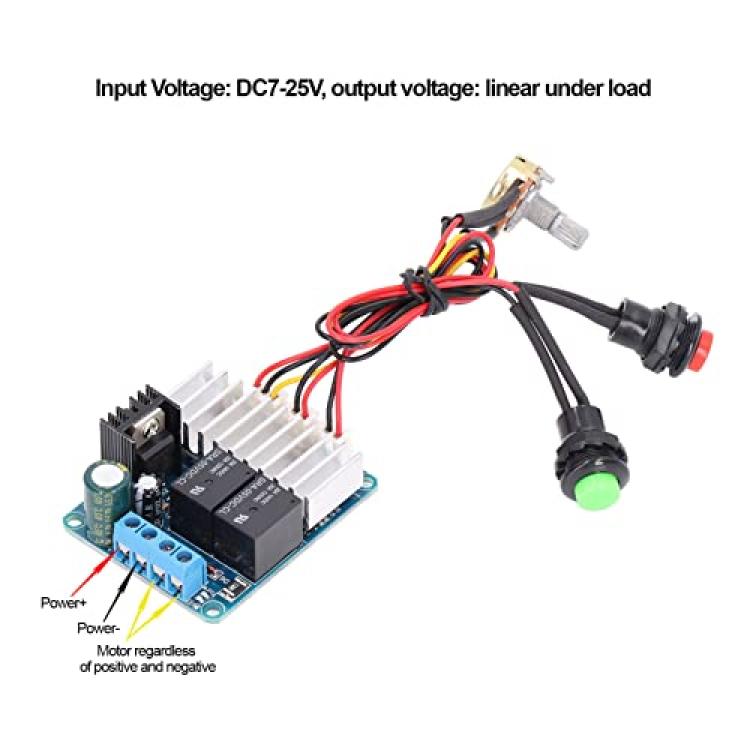

1. Connect the DC power supply according to the positive and negative poles, the power indicator light is on, ensure that the DC power supply voltage is larger than 7V and less than 25V, and ensure that the output power of the power supply meets the needs of the motor.
2. Connect the motor, the motor wire can be positive or negative.
3. Press and hold the key switch without lock, the corresponding indicator light is on, the motor rotates forward or reverse, adjust the potentiometer knob to control the motor speed.
4. Release the switch,&n
