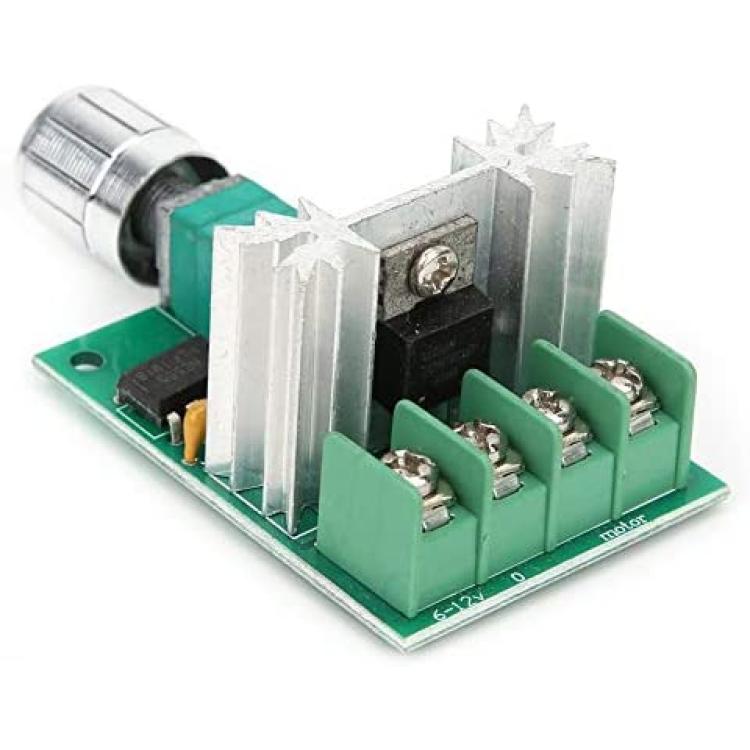

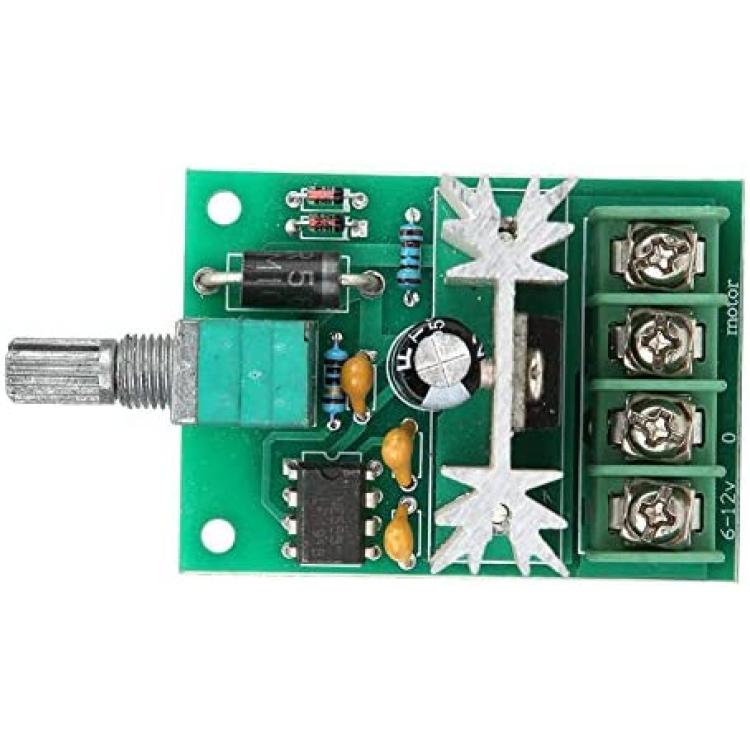

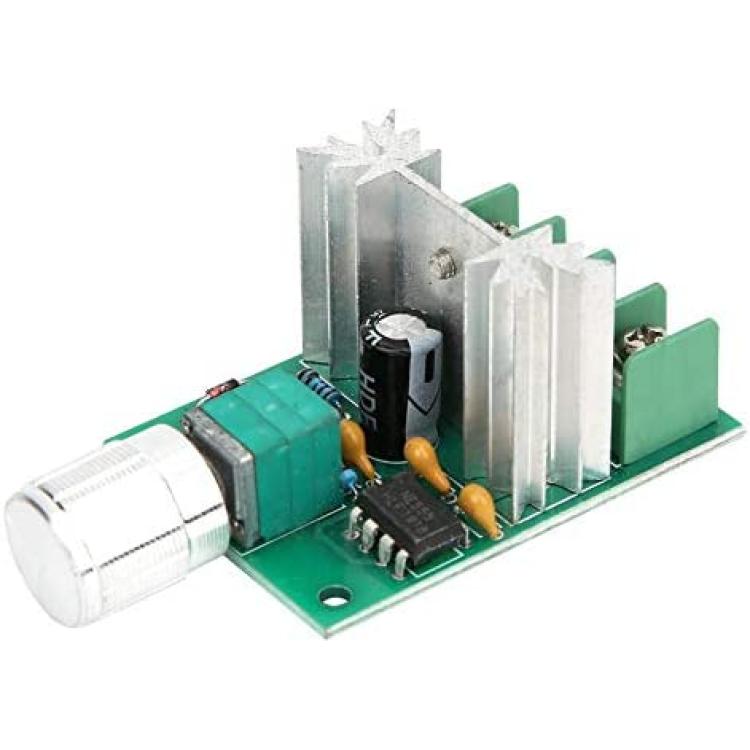

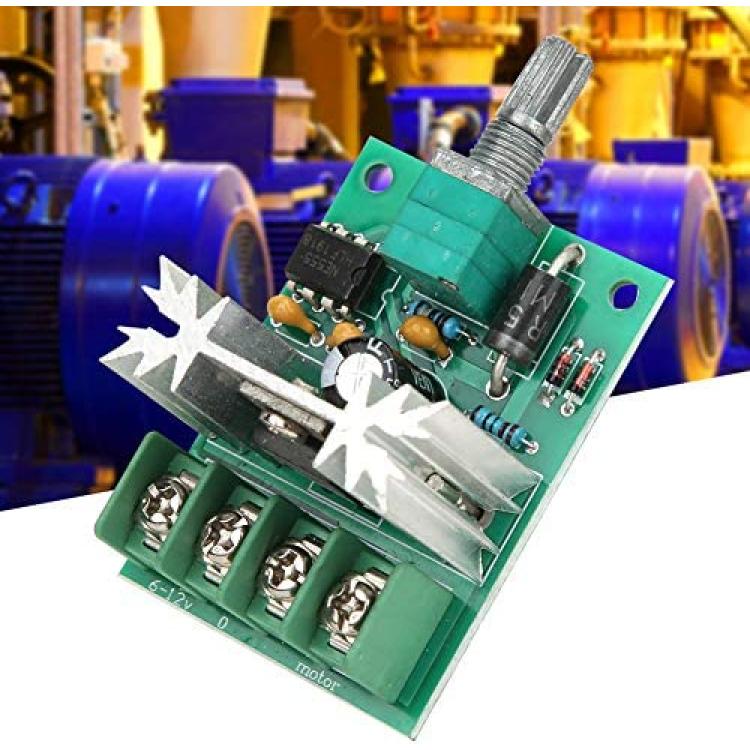

PWM DC Motor Speed Controller , Controllers Motor Speed Controllers DC6-12V Motor Controller Board Large Power Speed Temperature Light Regulator Switch
About this product
*PWM DC motor speed controller has DC 6-12V Input voltage and rated 7A adapted current.
*The speed adjustment range of motor controller is 0%-100%, when the speed is less than 5%,it will stop the motor by turnning off the potentiometer switch automaticly.
*The DC motor speed controller allows the use of a fully adjustable pulse width modulation (PWM) DC voltage with a duty cycle between 5% and 100% to control the direction of the DC motor.

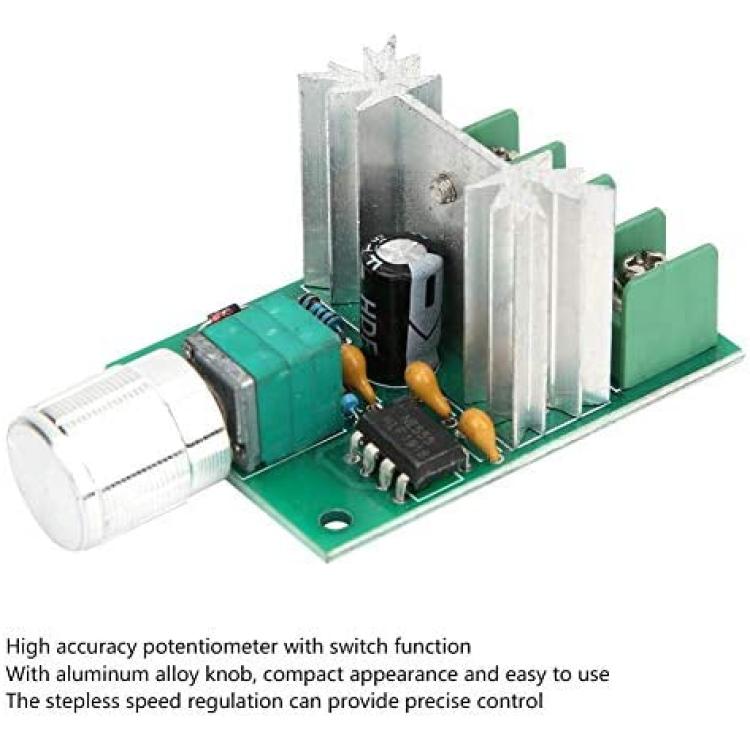

*Motor controller is equipped with a aluminum alloy knob, compact appearance and easy to use
*We strive to provide you with the highest quality product and the best customer experience, if youre not entirely satisfied, please just feel free to contact us at any time.
Description
Specification:
Item Type: Speed Controller
Input Working Voltage DC: 6-12V
Rated Current: 6A
Speed Range: 0%-100%
Weight: Appprox. 35g / 1.2oz
Size: Appprox. 6.6 x 3.8 x 3cm / 2.6 x 1.5 x 1.2in

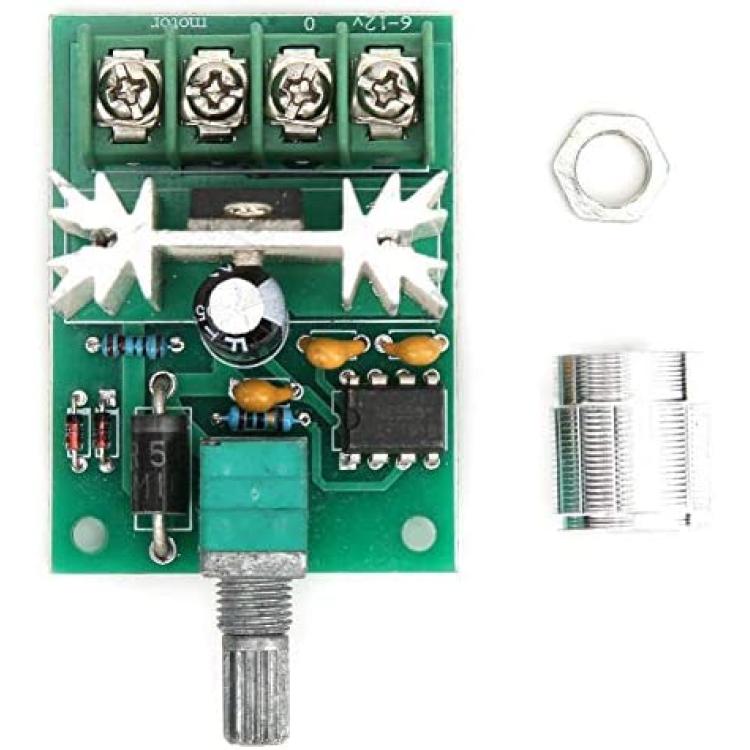

Package List:
1 x Speed Controller
1 x Nut1 x Knob
Note:
1. DC motor governor input is DC, not directly connected to AC

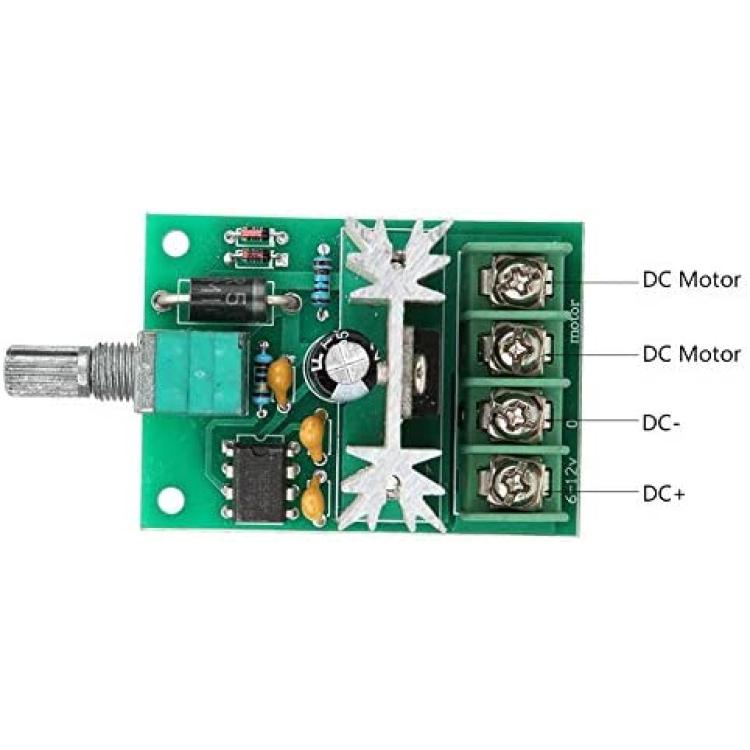

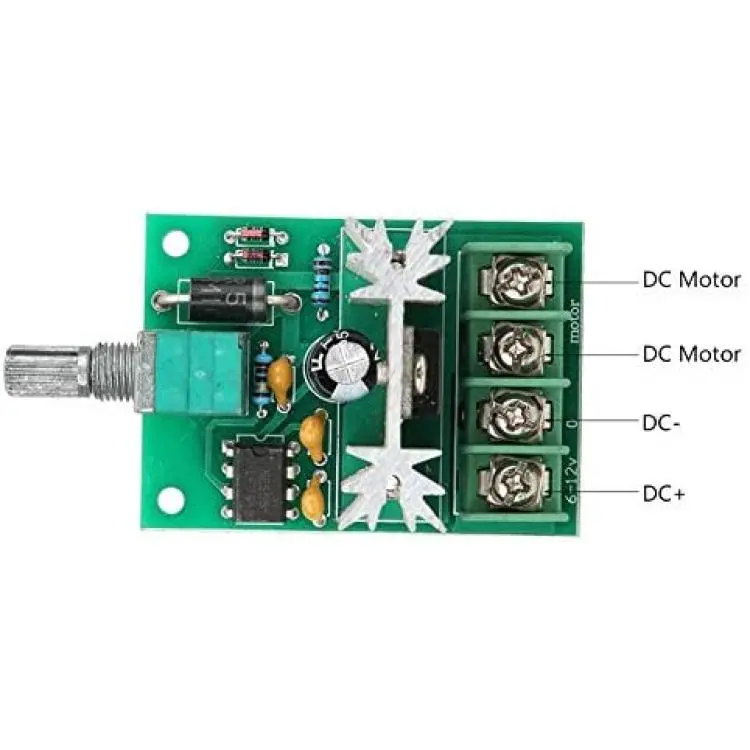

2. Do not reverse the positive and negative terminals of the DC power supply, otherwise the governor may be damaged.
3. The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the cable sequence.
4. Adjust the potentiometer knob to change the duty cycle of the governor. When the motor speed changes the wiring, the cable must not touch the heat sink.
5. The potentiometer is adjusted CW, the larger the value
