12V-60V 70A DC PWM Motor Speed Controller High Power Speed Control Driver Switch
About this product
*Adjustable Voltage: The adjustable voltage range can be truly smooth and adjustable from 12V to 60V.
*Wide Application: Suitable for DC motors within 70A.
*High Quality: Using high quality and delicate metal shell, no rust, safe and convenient to use.
*Durable Performance: High quality circuit board ensures stable and durable performance.
*Easy to Use: Easily control voltage and speed via the adjustable rotary knob.
Description

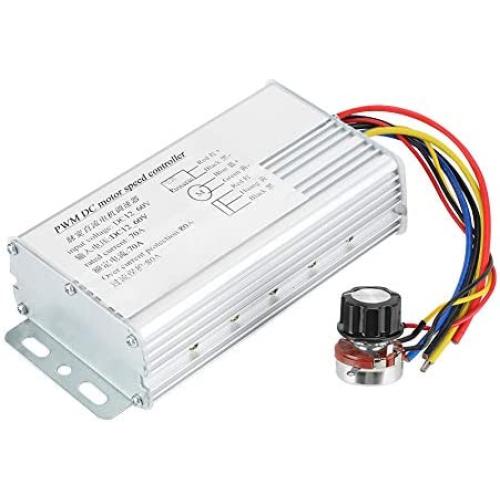

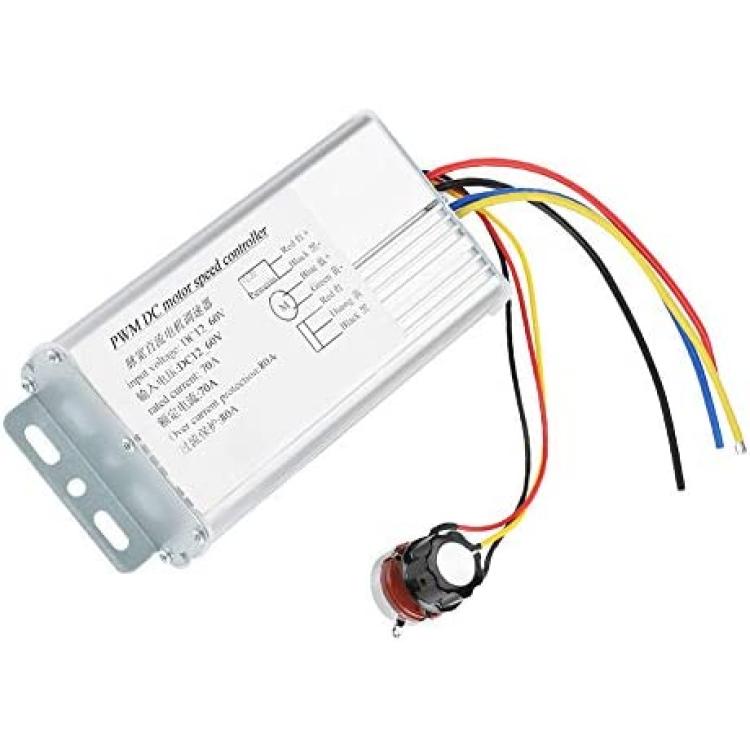

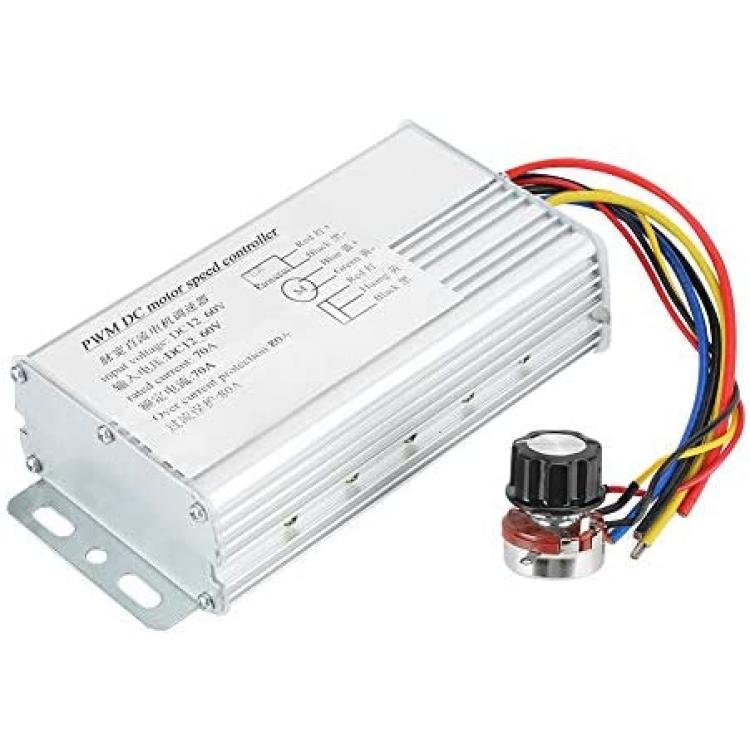

This is a simple and easy-to-use DC motor speed controller with mini size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 12V to 60V and output voltage is 0-100% of the input voltage. This speed controller is quite convenient to use.
Specifications:
Model: PWM 70A-220S
Color: Silver
Material: Metal
Input Voltage: DC 12-60V
Output Current: 0-70A
Power: 4000W
Rated Current: 70A
Speed Adjustment Type: Current Adjust
Adjustable Speed Range: 0-100%

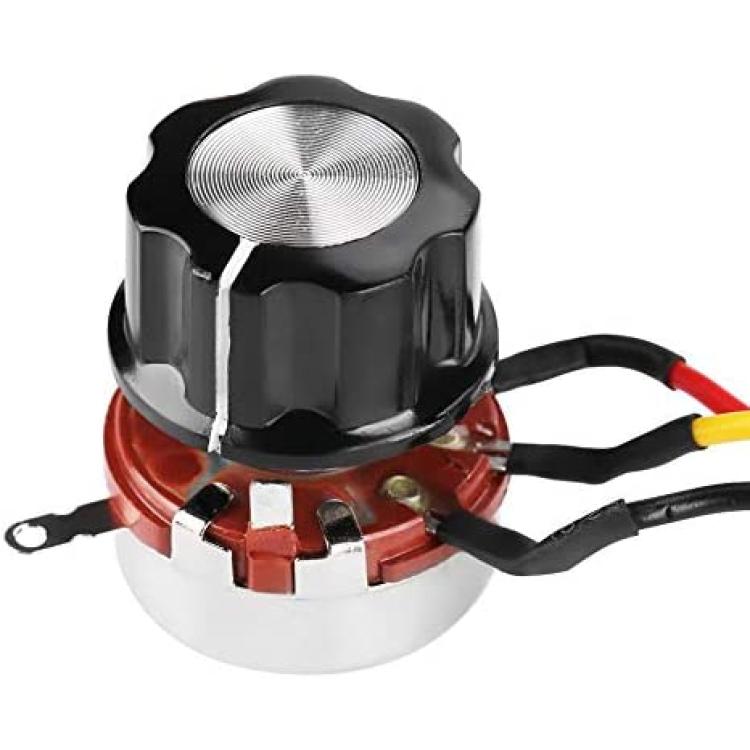

Speed Adjustment Way: Potentiometer (linear)
Output Voltage: Linear under load
Over current Protection: 80A

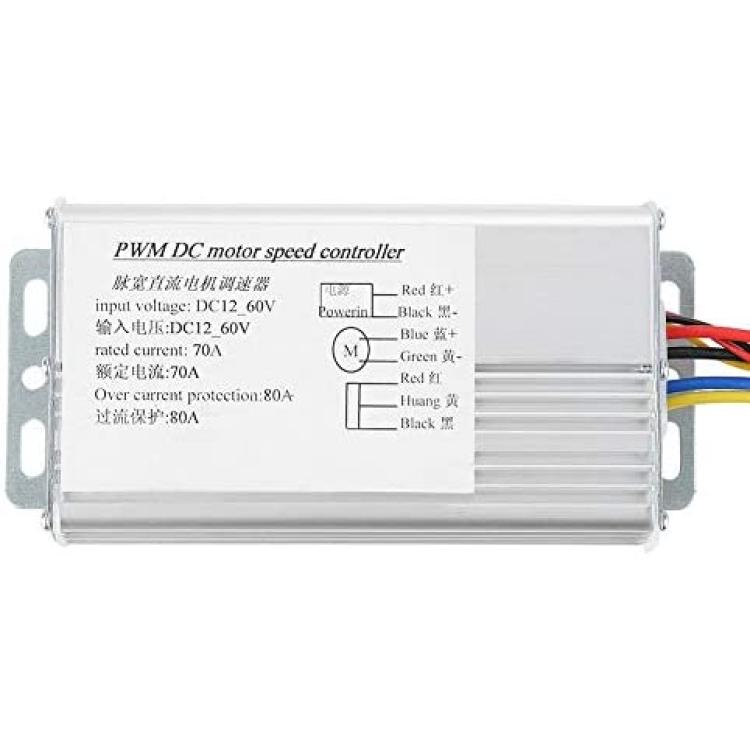

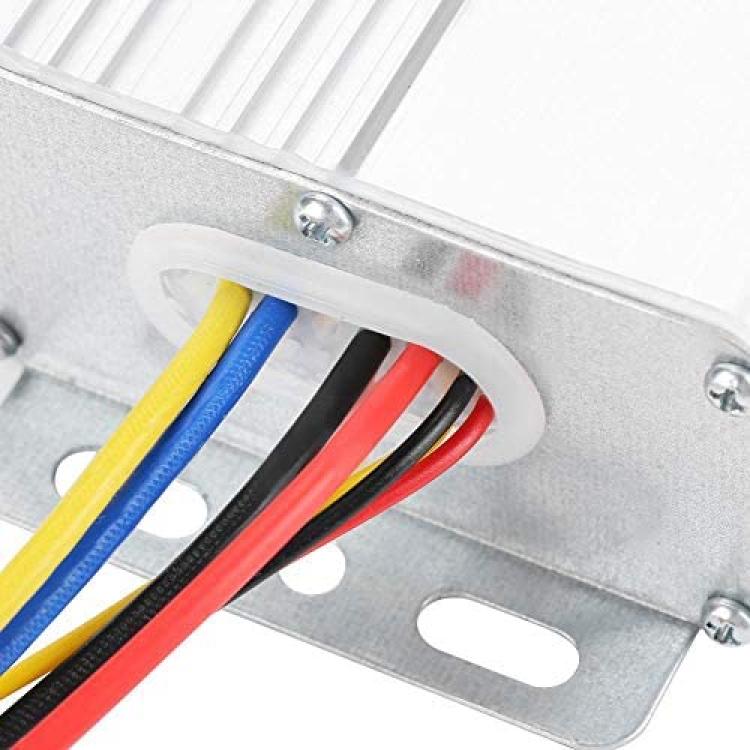

Red Wire: "+"
Black Wire: "-"
Panel Cutout Diameter: 10mm / 0.4inch
Size: Approx. 150*85*45mm/5.9*3.3*1.8inch
Weight: Approx. 586g / 20.7oz
Package List:
1 x Speed Controller
Note:
1. This DC motor controller input is connected to direct current, CANNOT be connected to alternating current, or it will be burnt.
2. Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.
3. Please allow small size error due to manual measurement. Thanks for your understanding.
