FTVOGUE DC10‑50V Motor Speed Controller PWM HHO RC Motor Regulator ,Automated Industry

Specification:

Type: Motor Speed Controller

Material: Plastic

1. Working Voltage: DC10V-DC50V wide working voltage range
2. Control Power: 0.01-3000W (the maximum instantaneous starting current is 60A, and the long-term working current should be controlled within 30A.)
Different operating voltages correspond to different control power as follows:
12V x 60A =720W when working voltage is 12V
24V x 60A =1440W when working voltage is 24V
36V x 60A =2160W when working voltage is 36V
40V x 60A =2400W when working voltage is 40V
50V x 60A =3000W when working voltage is 50V
3. Quiescent Current: 0.04A (when the working voltage is between DC10V and DC50V, the quiescent current will not exceed 40ma)
4. PWM Duty Cycle: 5%-100%
5. PWM Frequency: 15khz
6. Working Temperature: -20°C - 40°C (ambient temperature minus 20°C to minus 40°C) The speed governor is of industrial grade quality and can work stably in an environment below zero
7. Circuit Board Size(L x W x H): Approx. 122 x 87 x 32mm/4.8 x 3.4 x 1.3in (not including the adjustment part of the potentiometer)

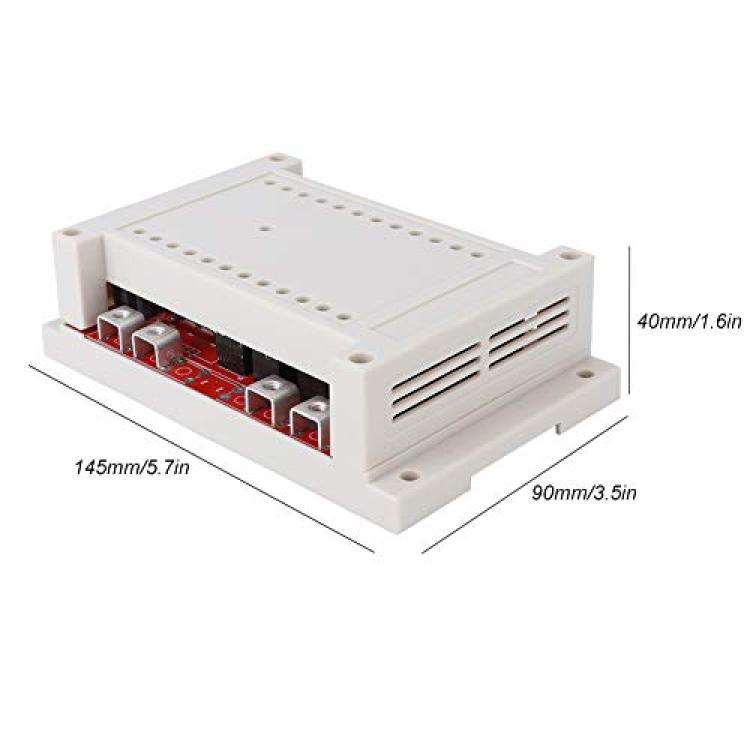

8. Shell Size(L x W x H): Approx. 145  x 90 x 40mm/5.7 x 3.5 x 1.6in
Wiring Instructions:
B+ B- connect the positive and negative poles of the power supply
M+ M- connect to the positive and negative poles of the motor

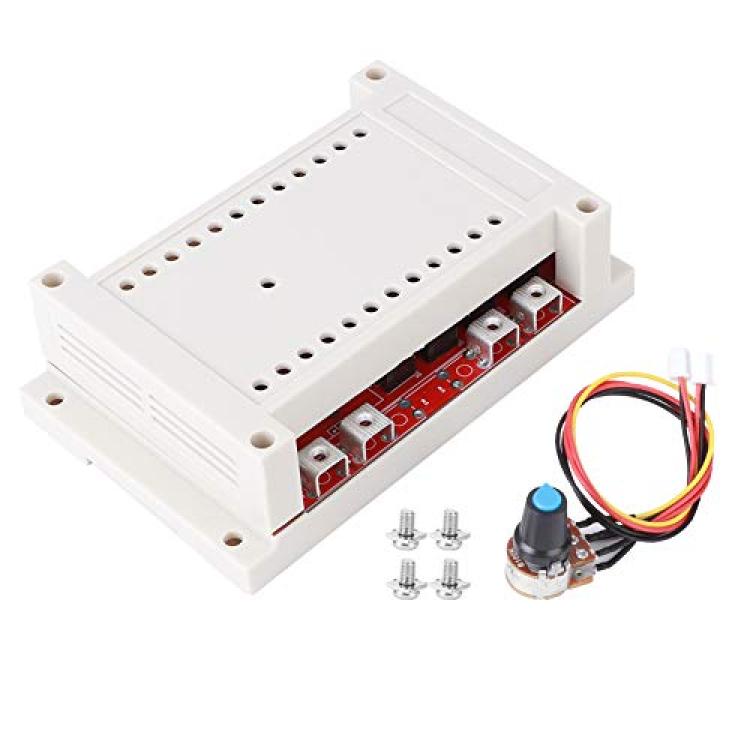

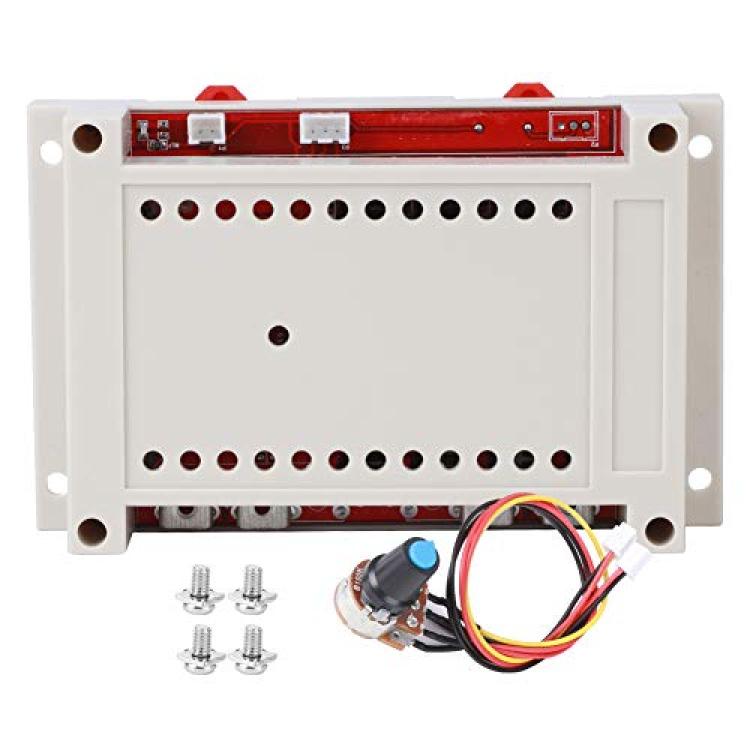

1 x Switching Power

4 x Screw
