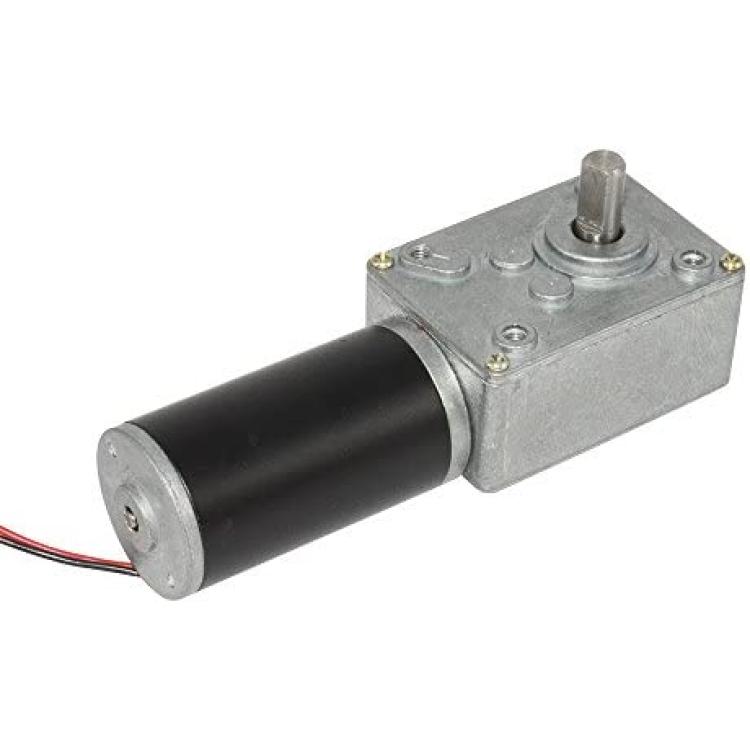

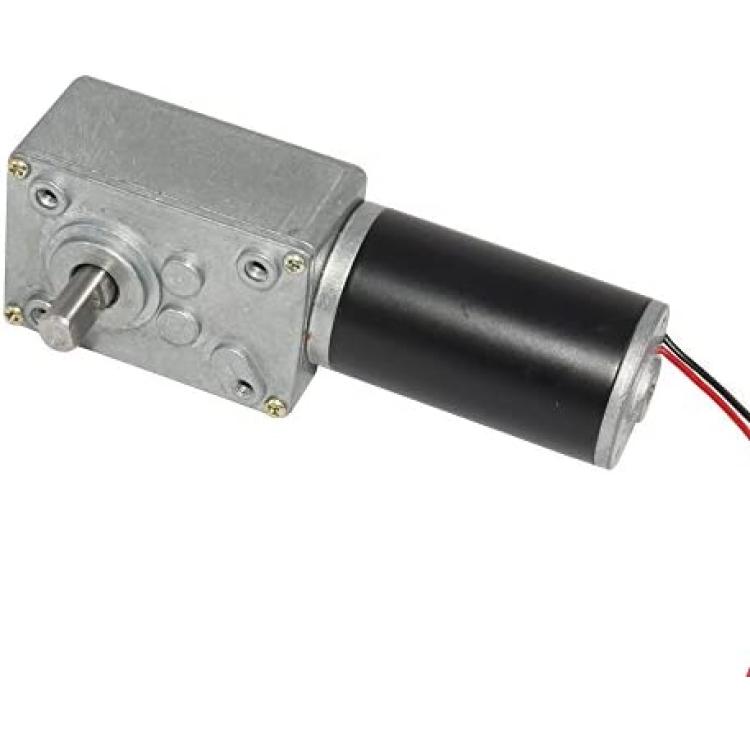

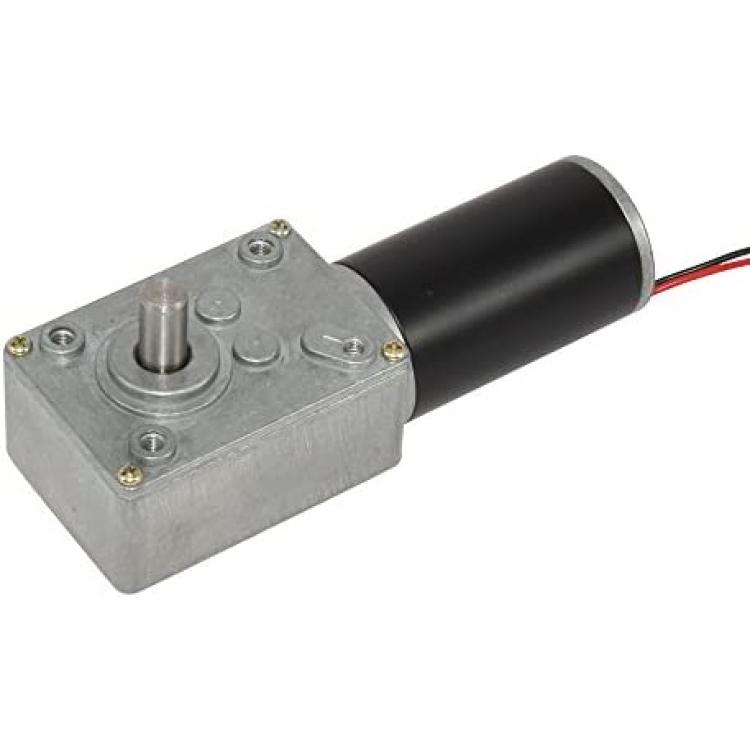

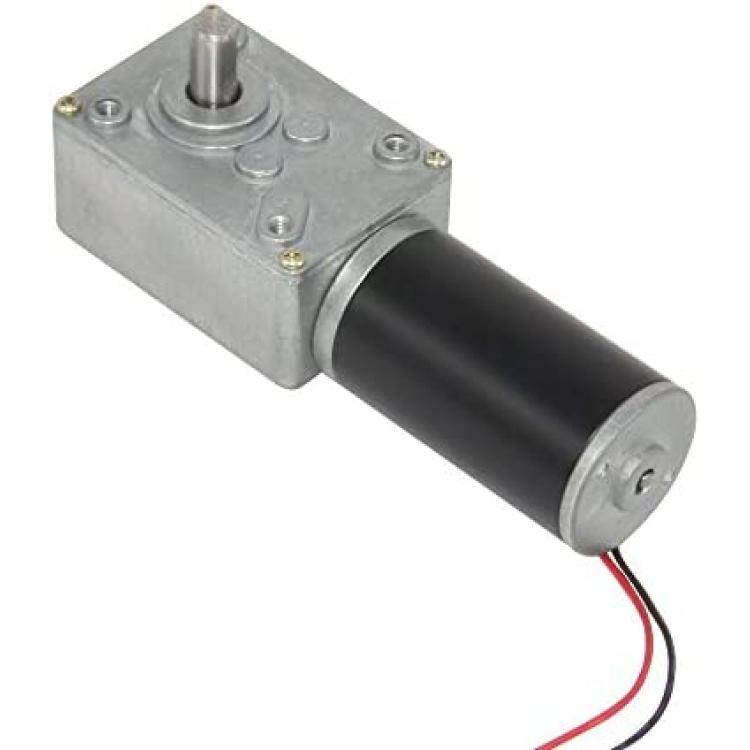

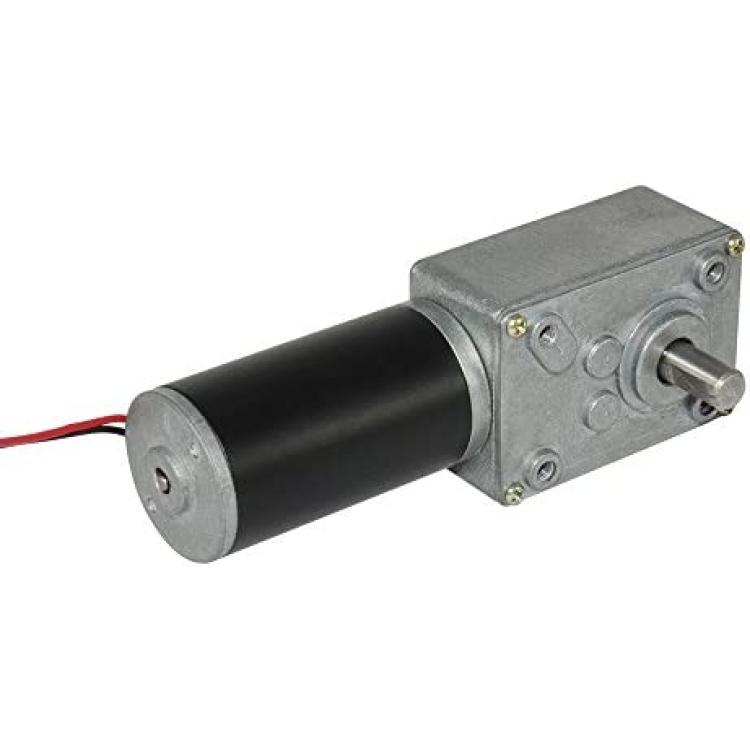

Electrical Motor 12V Reversible 27RPM PMDC Worm Geared Motor with Metal Gear Reducer Gearbox
About this product
*✔Rated voltage: DC12V; No-load speed: 27RPM; Rated torque: 12kg.cm; Stall Torque: 48kg.cm; Reduction ratio:1/290;
*✔DC Motor Body Dimensions: 31 x 57mm/ 1.22" x 2.24"(D*L); Gear Box Dimensions: 58.1 x 40.1 x 35mm/ 2.28"x1.58"x1.37"(L*W*H);
*✔Output Shaft Dimensions:8 x 15mm/ 0.31" x 0.59"(D*L) with 1x 13mm/ 0.039*0.51(H*L) flat cut off; Wire Length: 19mm/7.4"; is_customized: Yes;
*✔Protection class: IP54; Low noise: db
*✔Package: 1PCS x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.
Description
This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics:
(1)With self-locking, the output shaft can't rotation when switch off, that is self-locking.
(2)Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.
