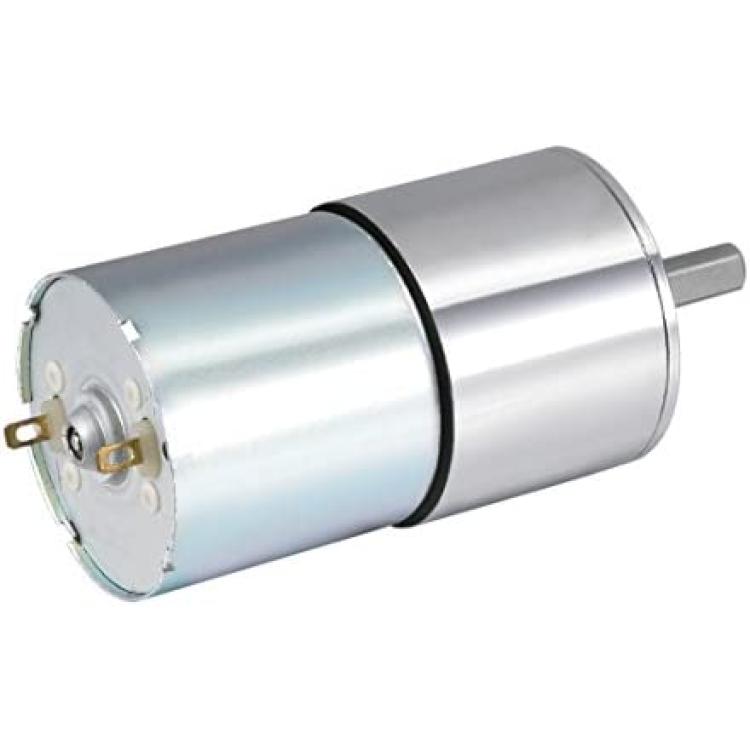

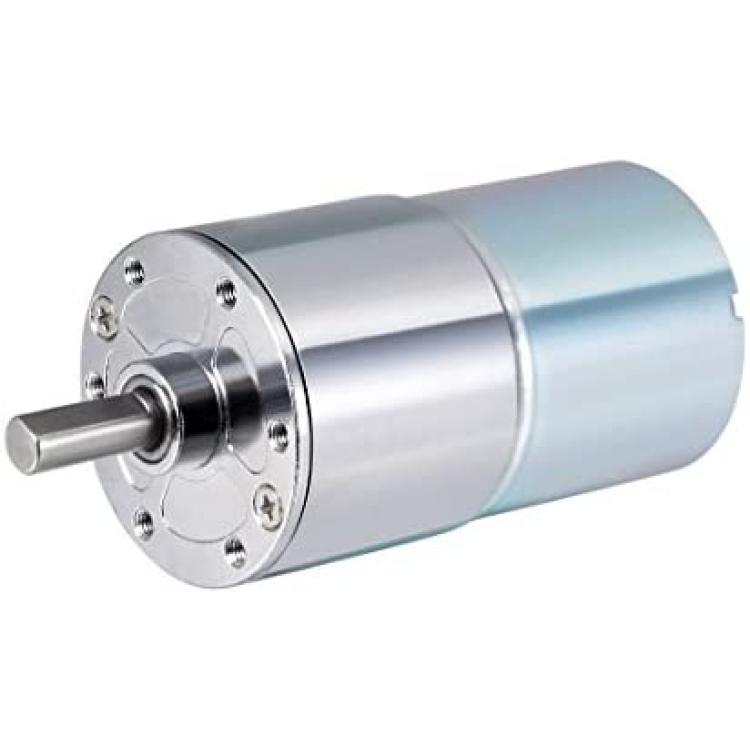

uxcell 12V DC 22RPM Gear Motor High Torque Electric Reduction Gearbox Centric Output Shaft
Description
This is our new low cost, but extremely DC Gear Motor.
Specification:
No-load Speed: 22RPM at 12 Volts;
kg.cm: 10
Power: 7.2W;
No-load Current: 0.15A;
Load Current: 0.6A;
Reduction Ratio: 1: 244

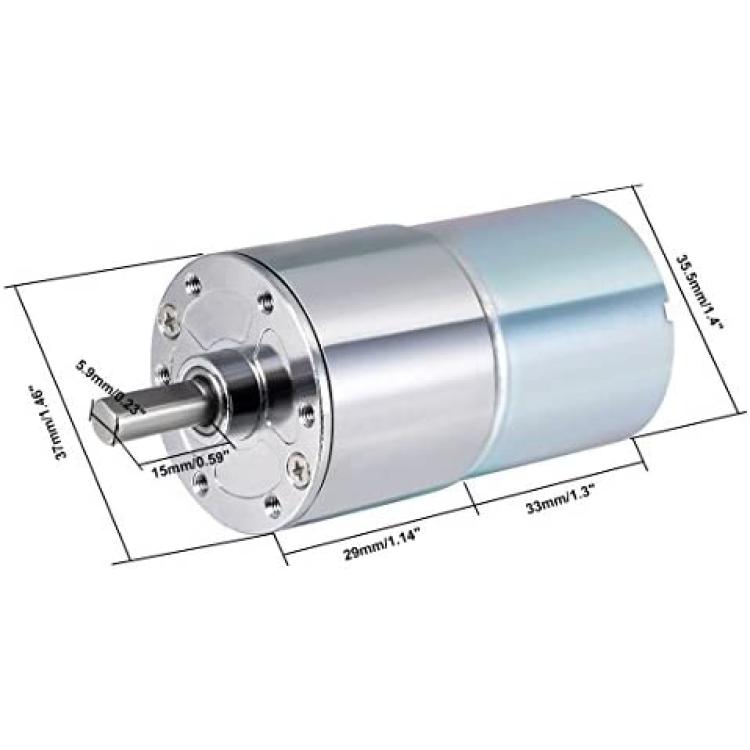

D Shaft Size: 15mm x 5.9mm/0.59 x 0.23 inches (L*D);
Gearbox Size: 29mm x 37mm/ 1.14 x 1.46 inches (L*D);
Motor Size: 33mm x 35.5mm/1.3 x 1.4 inches (L*D);
Mounting Hole Size: M3 (not included).
