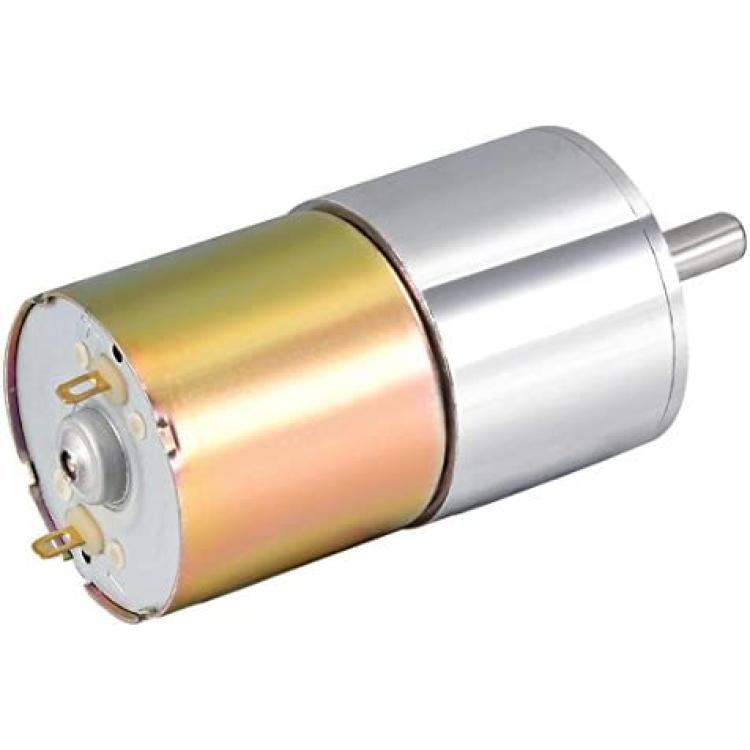

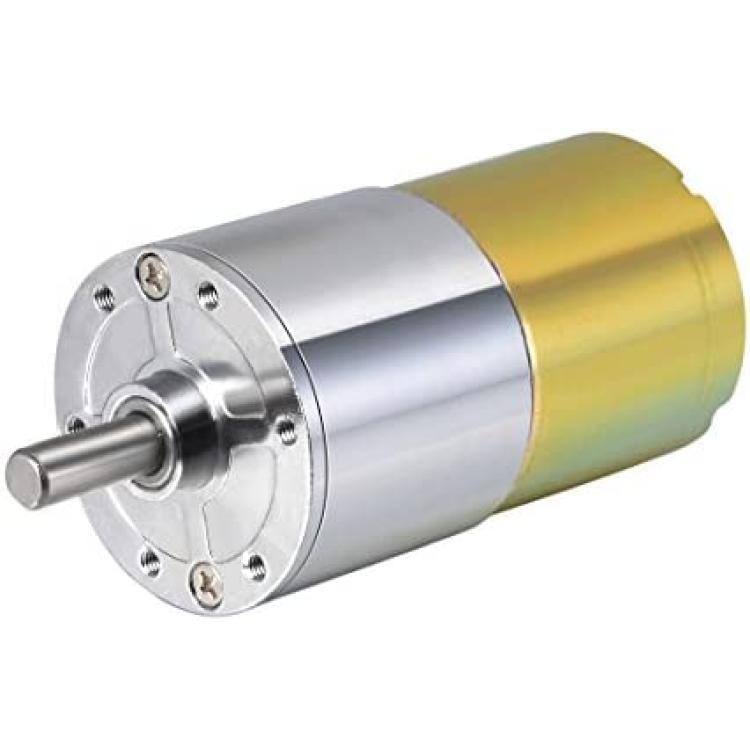

uxcell 24V DC 20 RPM Gear Motor High Torque Electric Reduction Gearbox Centric Output Shaft

uxcell 24V DC 20 RPM Gear Motor High Torque Electric Reduction Gearbox Centric Output Shaft

Name: uxcell 24V DC 20 RPM Gear Motor High Torque Electric Reduction Gearbox Centric Output Shaft
Brand: ‎uxcell
SKU: MM2062
Availability: InStock

Brand: ‎uxcell
Product Code: MM2062
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*QUALITY UPGRADED - Galvanized surface treatment, high-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body. With precision winding technology, the geared motor power instant increased by 30%.

*Specification: No-load Speed: 20RPM at 24 Volts; kg.cm: 7 Power: 7.2W; No-load Current: 0.1A; Load Current: 0.3A; Reduction Ratio: 1: 244 D Shaft Size: 15mm x 5.9mm/0.59 x 0.23 inches (L*D); Gearbox Size: 29mm x 37mm/ 1.14 x 1.46 inches (L*D); Motor Size: 33mm x 35.5mm/1.3 x 1.4 inches (L*D); Mounting Hole Size: M3 (not included).

*GREAT LITTLE MOTOR - Small size dc gear motor with low noise and high torque, give your DIY projects a new lease of life! This motor is solidly constructed and ready to install in numerous applications.

*SPEED ADJUSTABLE - The speed can be adjusted by dc motor speed controller, but if you need a lower or higher speed motor, pls choose the right rpms meets your needs. This motor is reversible so that you can switch positive and negative.

*WHAT YOU GET - A pretty small little motor, has gear reduction box and motor in one small but very well built package.

Description

This is our new low cost, but extremely DC Gear Motor.

Specification:
No-load Speed: 20RPM at 24 Volts;
kg.cm: 7
Power: 7.2W;
No-load Current: 0.1A;
Load Current: 0.3A;
Reduction Ratio: 1: 244

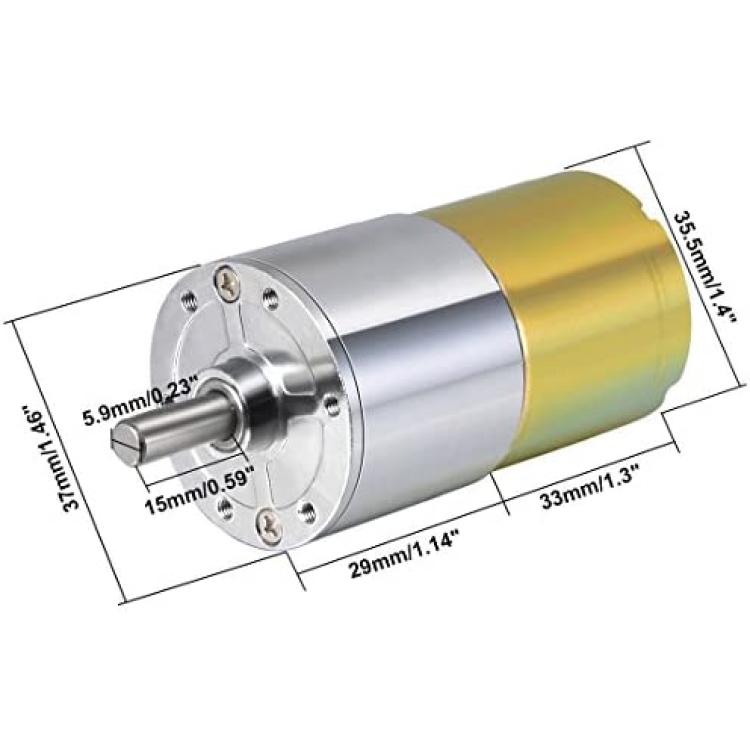

D Shaft Size: 15mm x 5.9mm/0.59 x 0.23 inches (L*D);
Gearbox Size: 29mm x 37mm/ 1.14 x 1.46 inches (L*D);
Motor Size: 33mm x 35.5mm/1.3 x 1.4 inches (L*D);
Mounting Hole Size: M3 (not included).

Tags: DC Gear Motor, Reduction Gearbox, 24V Motor, High Torque Motor, Small DC Motor, 20RPM Motor, 1:244 Reduction Ratio, DIY Projects, Electric Motor, Gearbox, uxcell
