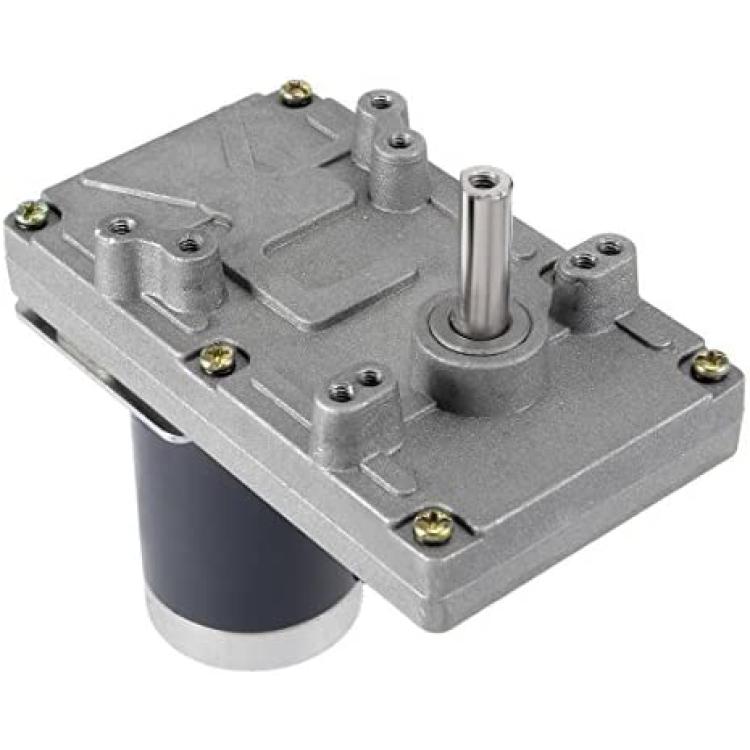

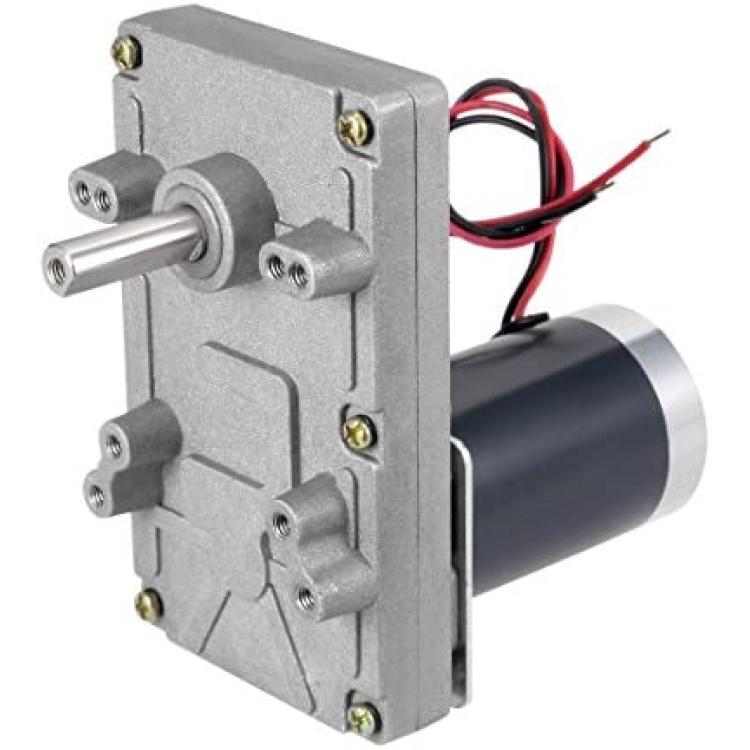

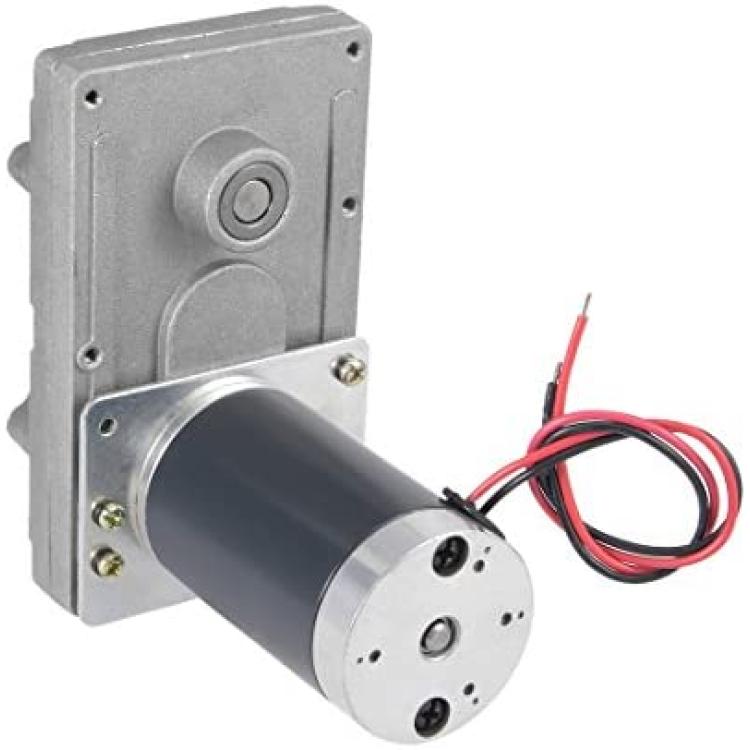

uxcell 24V DC 70 RPM Gear Motor High Torque Electric Reduction Gearbox Eccentric Output Shaft

uxcell 24V DC 70 RPM Gear Motor High Torque Electric Reduction Gearbox Eccentric Output Shaft

Brand: ‎uxcell
Product Code: MM813
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*No-load Speed: 70RPM at 24 Volts; Torque: 23.14 kg.cm;

*No-load Current: 0.5A; Load Current: 1.257A;

*D Shaft Size: 8mm x 24mm/0.31inch x 0.94inch(D*H);

*Gearbox Size:102mm x 60mm x 33.7mm /4.02 x 2.36 x 1.33 inches (L*W*H); Motor Size: 64mm x 38mm/2.52 x 1.5 inches (L*D);

*Mounting Hole Dia:3.3mm/0.13inch; Wire Length:21cm/8.27inch.

Description

This is our new low cost, but extremely DC Gear Motor.

Specification:
No-load Speed: 70RPM at 24 Volts;
kg.cm: 23.14;
No-load Current: 0.5A;
Load Current: 1.257A;
D Shaft Size: 8mm x 24mm/0.31inch x 0.94inch(D*H);
Gearbox Size:102mm x 60mm x 33.7mm /4.02 x 2.36 x 1.33 inches (L*W*H);
Motor Size: 64mm x 38mm/2.52 x 1.5 inches (L*D);
Mounting Hole Dia:3.3mm/0.13inch;
Wire Length:21cm/8.27inch.
