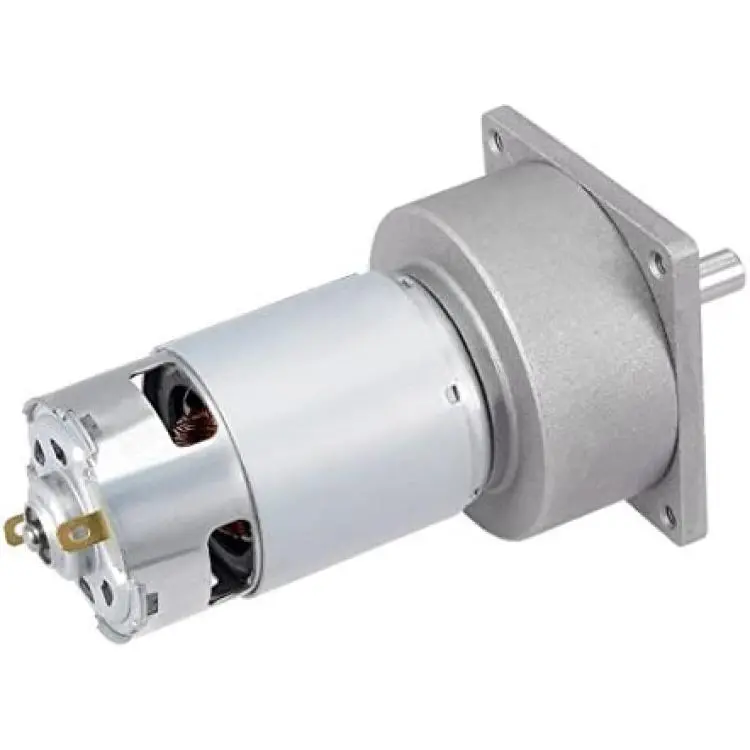

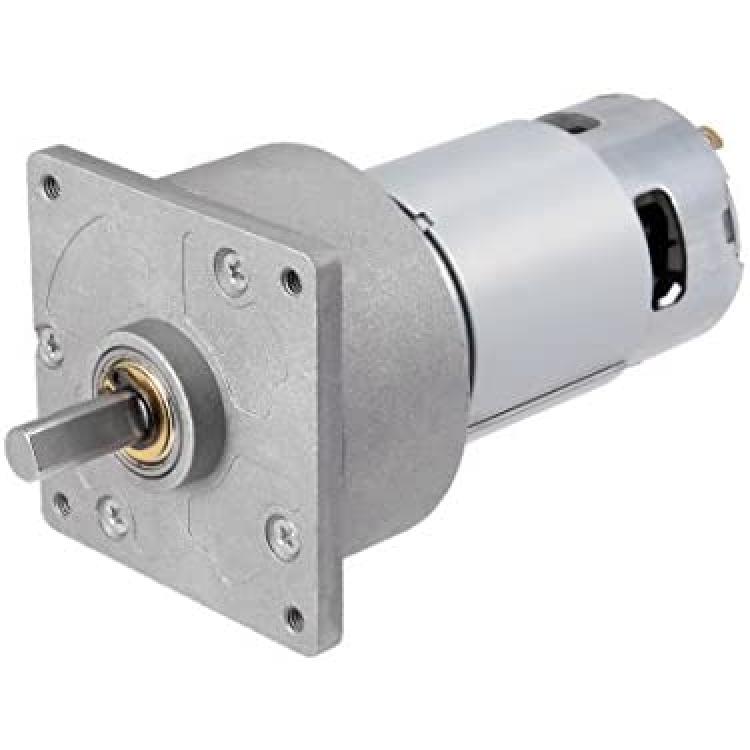

uxcell® 12V DC 150 RPM Gear Motor High Torque Electric Reduction Gearbox Centric Output D Shaft
About this product
*No-load Speed: 150RPM at 12 Volts
*Torque: 0.213 kg.cm

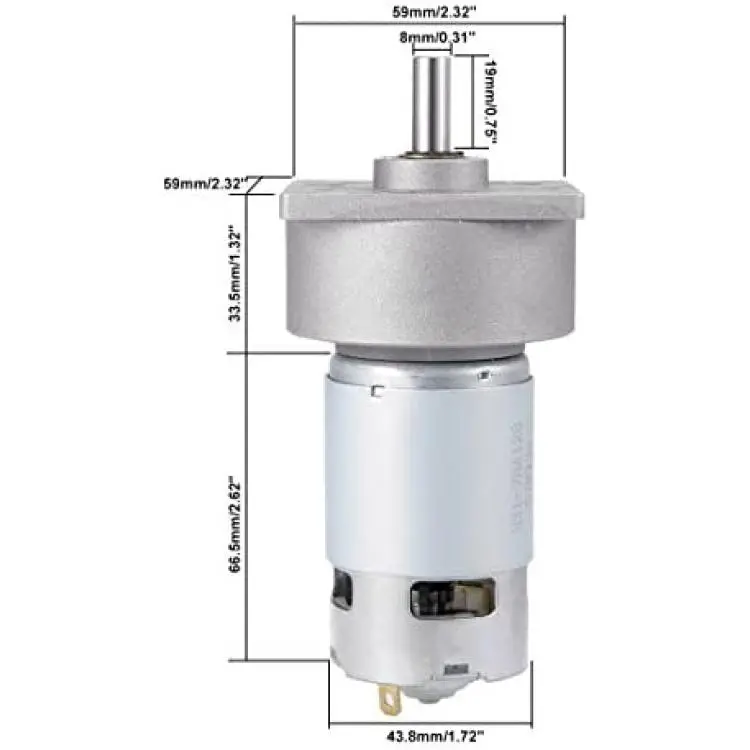

*Gearbox Size: 59 x 59 x 33.5mm/ 2.32 x 2.32 x 1.32inches (L*W*H)
*Motor Size: 66.5 x 43.8mm/2.62 x 1.72inches (L*D)
*Mounting Hole Dia:3mm/0.12inches
Description
Specification:
No-load Speed: 150RPM at 12 Volts;
kg.cm: 0.213
No-load Current: 0.385
Load Current: 0.867

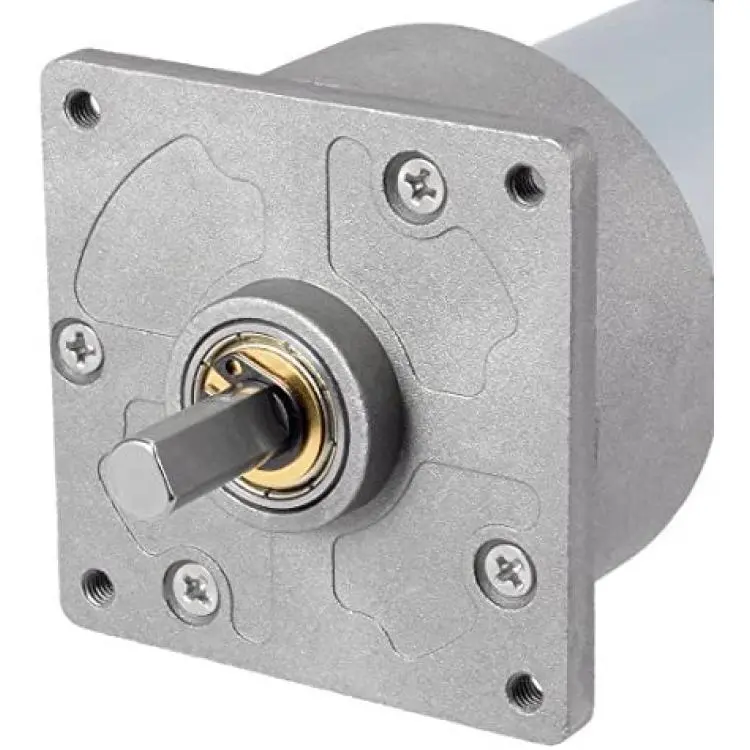

D Shaft Size: 19mm x 8mm/0.75 x 0.31 inches (L*D);
Gearbox Size: 59mm x 59mm x 33.5mm/ 2.32 x 2.32 x 1.32inches (L*W*H);
Motor Size: 66.5mm x 43.8mm/2.62 x 1.72inches (L*D);
Mounting Hole Dia:3.3mm/0.13 inch
