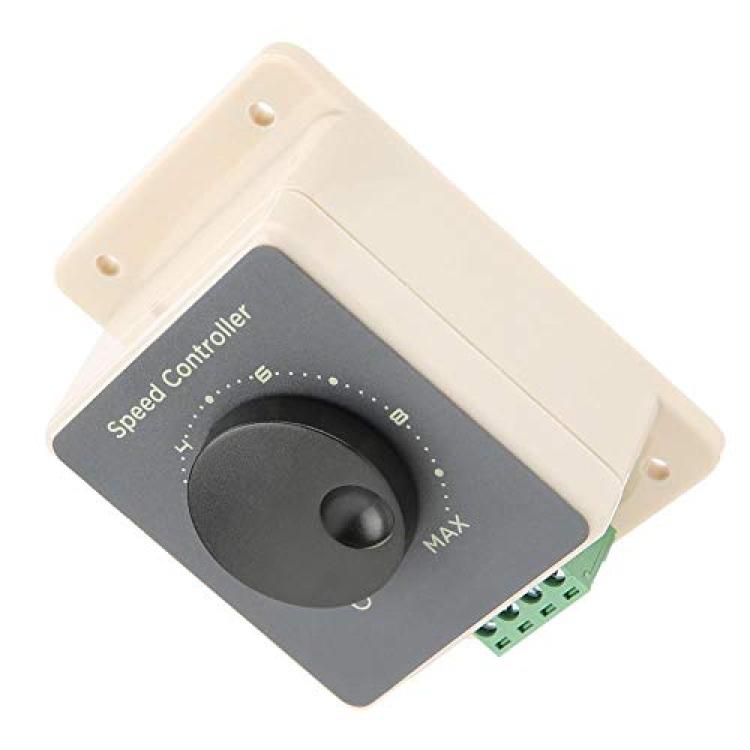

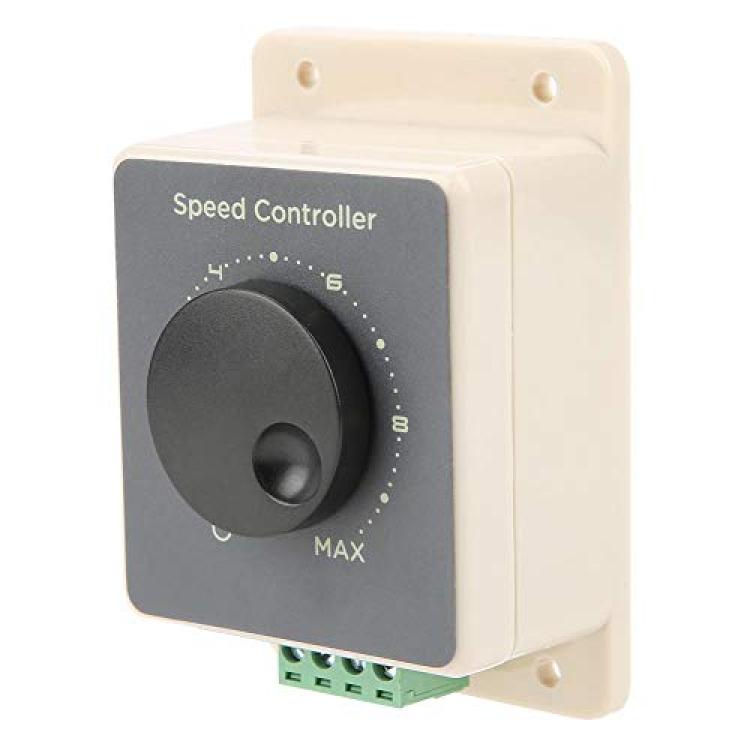

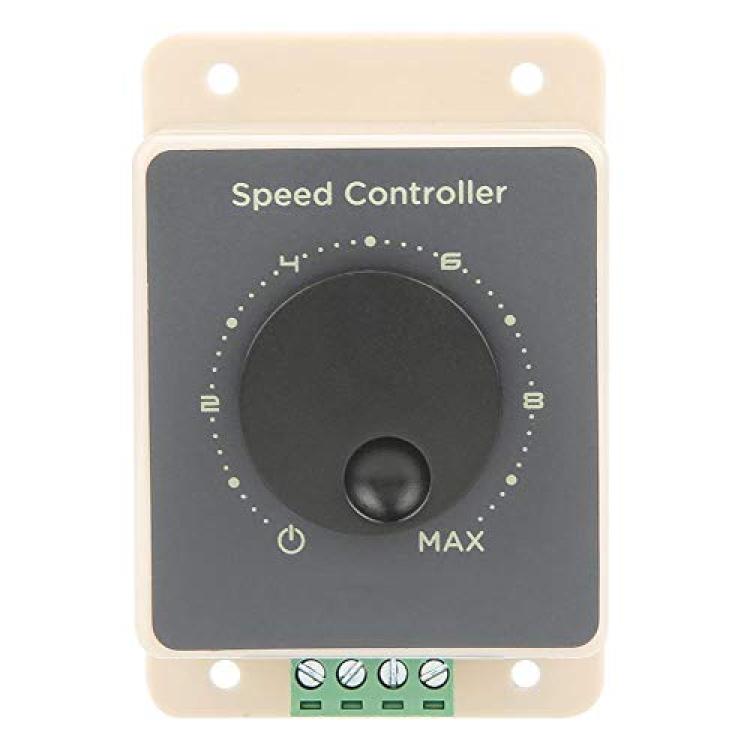

PWM Dc Motor Governor High Power, PWM Dc Motor Governor, Elegant Appearance for Quick Wiring Changing Rotation Direction

Features:

1. This is a simple and easy-to-use DC motor speed controller of elegant appearance and stable performance.

2. Speed controller is made with high quality circuit board which ensures a longer service life.

3. This speed controller can change rotation direction of DC motor by adjusting the line sequence.

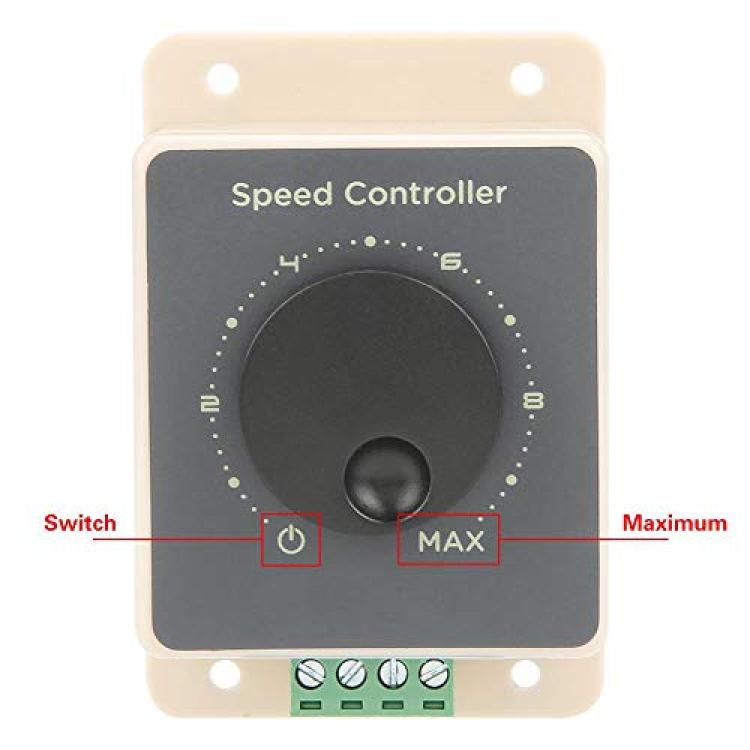

4. Easy to use, simply rotate the knob to change output so to change the rotary speed of DC motor.

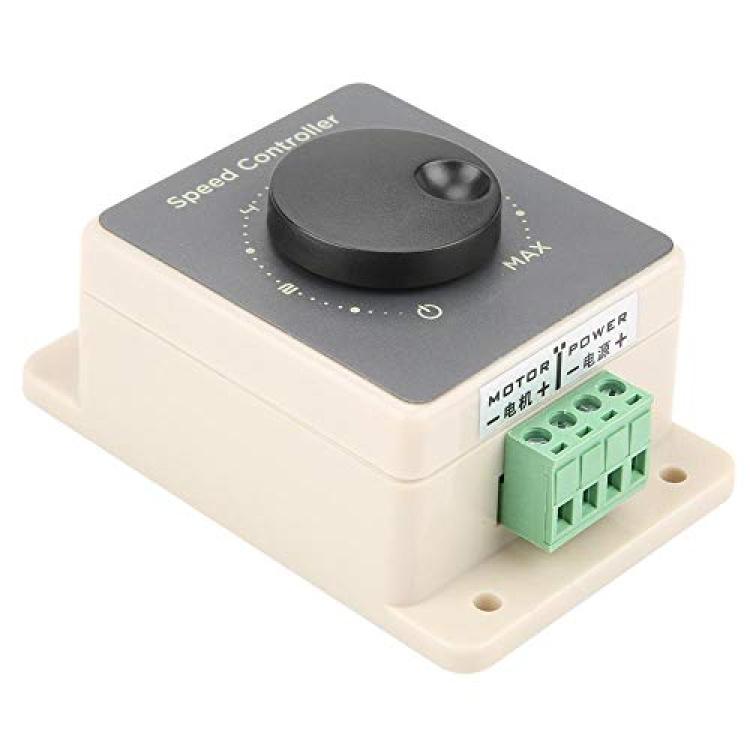

5. Designed with convenient screw terminals for quick wiring.



Specification:

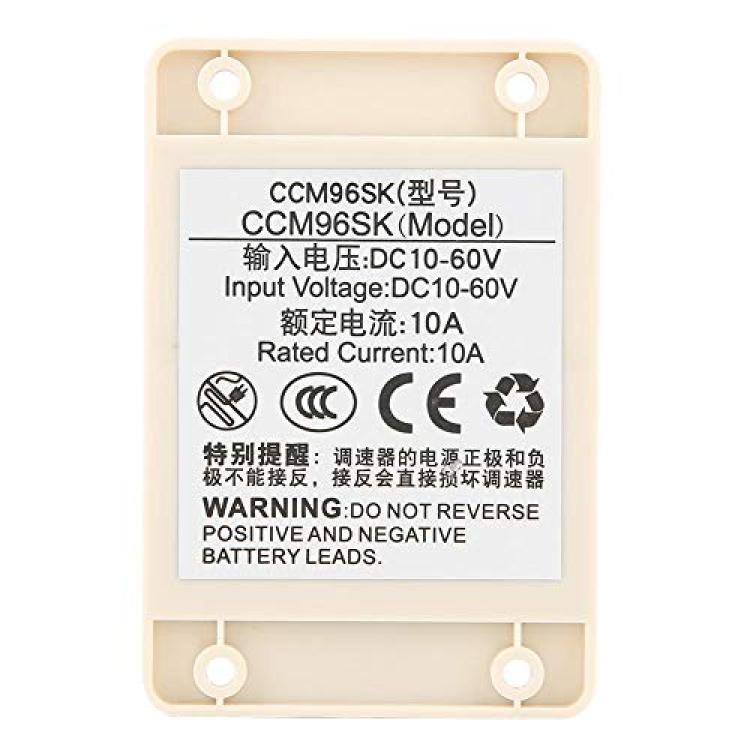

Model: CCM96SK

Input Voltage: DC 10-60V (Output voltage is about 0-100% of input voltage)

Control Power: 12V*10A=120W, 24V*10A=240W, ...

Rated Current: 10A

Maximum Current: 20A

Speed Adjustment Range: 5%-100%

Potentiometer: resistance B100K; opening 8mm

PWM Frequency: 25kHz

Size: 88*59*35mm / 3.46*2.32*1.38in

Package weight: Approx. 98g/3.4oz



PackageList:

1 * DC Motor Governor



Note:

1. DC motor speed controller can not be directly connected to AC, or it will burn out.

2. DC power supply can not reverse the positive and negative pole, otherwise the governor will be damaged.
