Samfox PWM DC Motor Governor, 12V/24V/36V/48V 20A High Power Motor Speed Control Switch

Features:

New PWM DC Motor Governor, with elegant appearance and stable performance, simple operation and easy to use, widely used.

Speed controller is adopted with high quality circuit board which ensures a longer service life.

This speed controller is designed to change rotation direction of DC motor by adjusting the line sequence.

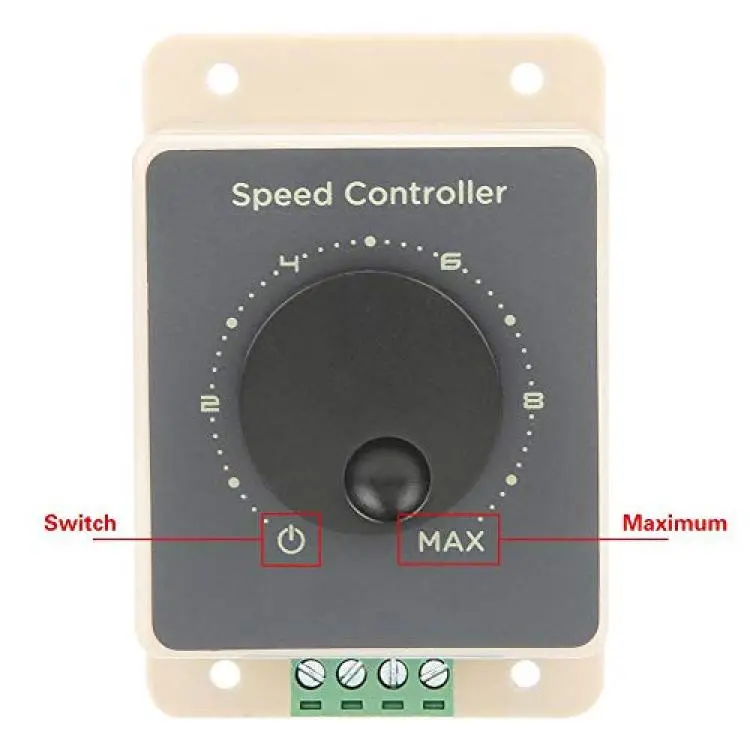

Simply rotate the knob to change output so to change the rotary speed of DC motor.

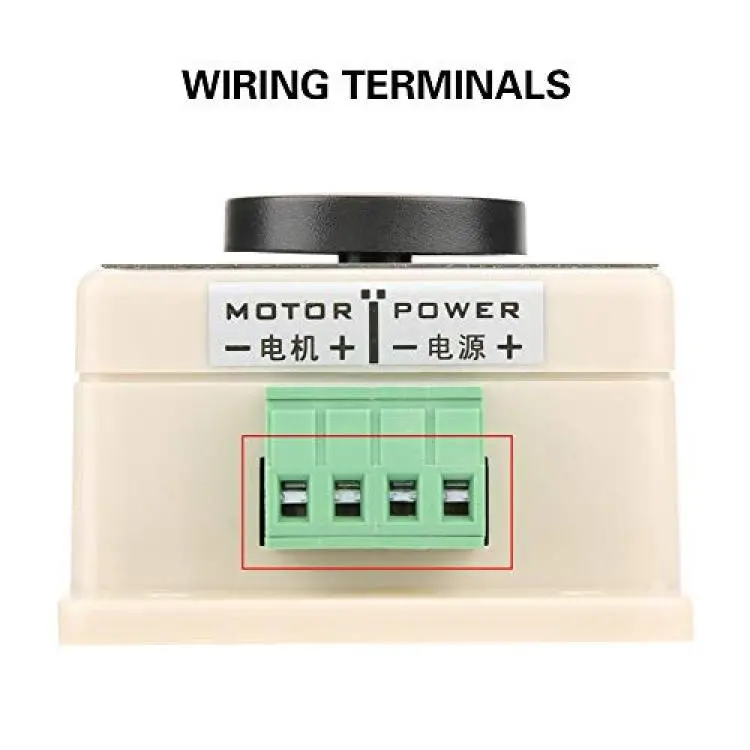

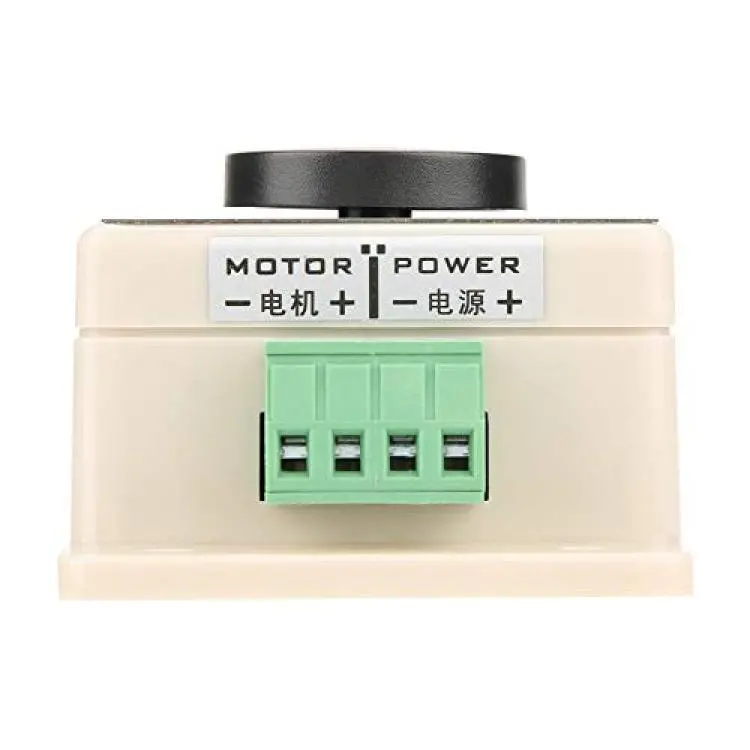

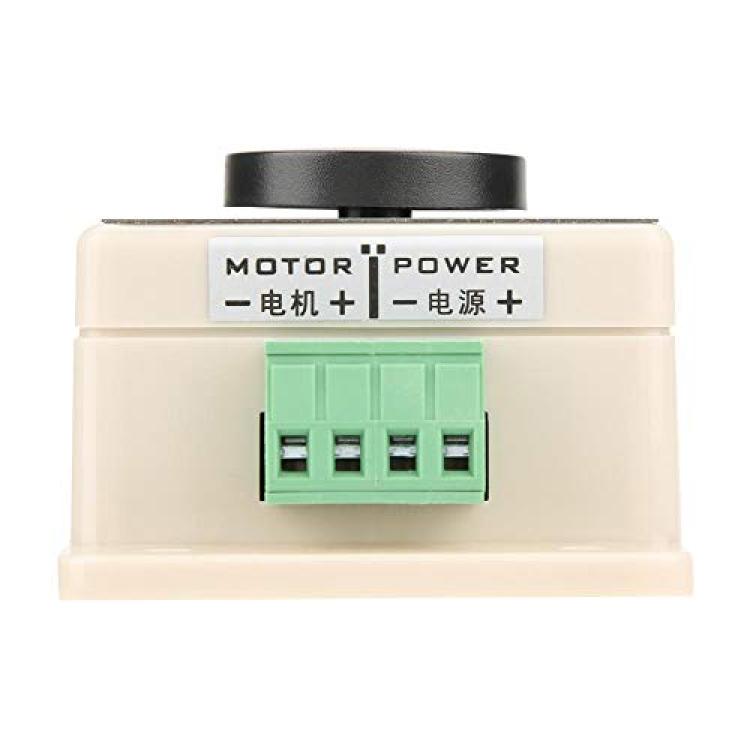

Equipped with convenient screw terminals for quick wiring.



Specification:

Model: CCM96SK

Input Voltage: DC 10-60V (Output voltage is about 0-100% of input voltage)

Control Power: 12V*10A=120W, 24V*10A=240W, ...

Rated Current: 10A

Maximum Current: 20A

Speed Adjustment Range: 5%-100%

Potentiometer: resistance B100K; opening 8mm

PWM Frequency: 25kHz

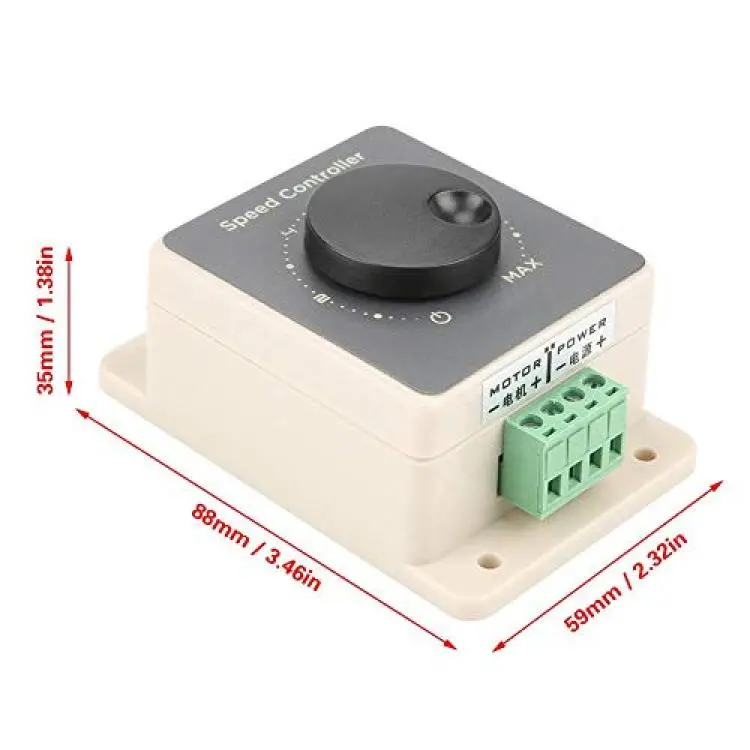

Size: 88*59*35mm / 3.46*2.32*1.38in

Package weight: Approx. 98g/3.4oz



Package List:

1 * DC Motor Governor



Note:

1. DC motor speed controller can not be directly connected to AC, or it will burn out.

2. DC power supply can not reverse the positive and negative pole, otherwise the governor will be damaged.
