JWDAWN Diagnostic Tools for ZAPI FZ2009B Handset Digital Console Programming Unit Programmer for ZAPI H0 H2B Dual AC2 Motor Speed Controller

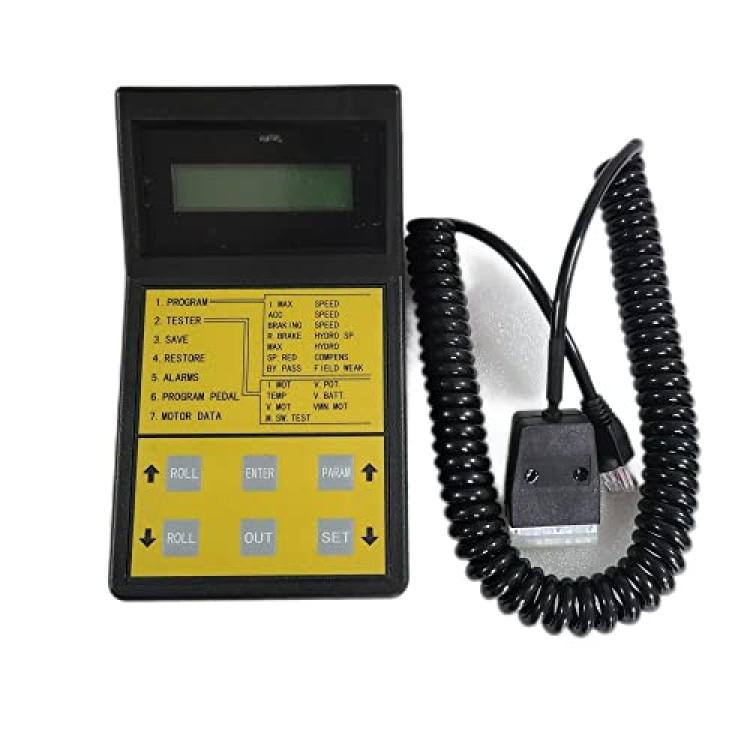

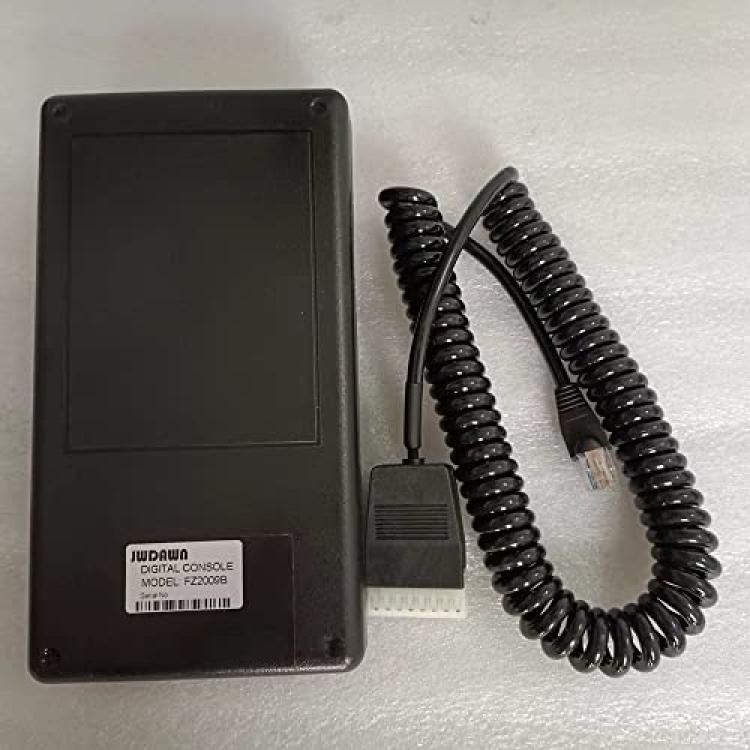

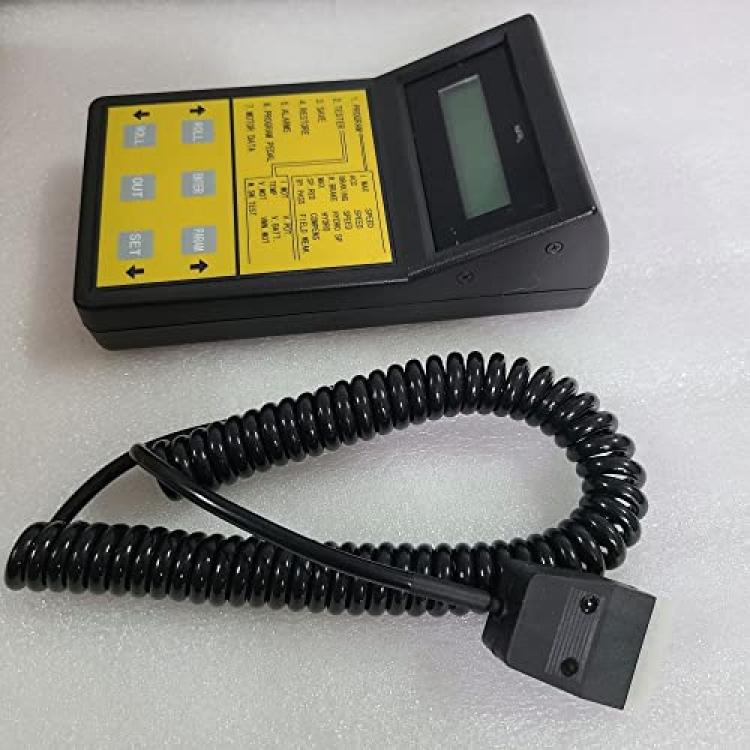

ZAPI FZ2009B Digital Console Digital Console Zapi controllers all have a serial output that is able to communicate with the external systems, such as personal computers. Zapi has developed an intelligent microprocessor based console, with a liquid crystal display, and various programming keys. Technical details: PROGRAMMING PARAMETERS: maximum current, braking, acceleration rate, creep speed, 1st level of speed reduction, 2nd level of speed reduction. TESTER: provides a visual display of the analogue and digital measurements within the chopper (battery voltage, motor voltage, motor current, temperature, potentiometer voltage). RESTORE: enables a fast and digital return of previously set parameters. This may be used to programme machines that need to have the same operating characteristics. ALARMS: this function visually displays the last 5 faults. DIMENSIONS: 100 x 190 x 60 mm
