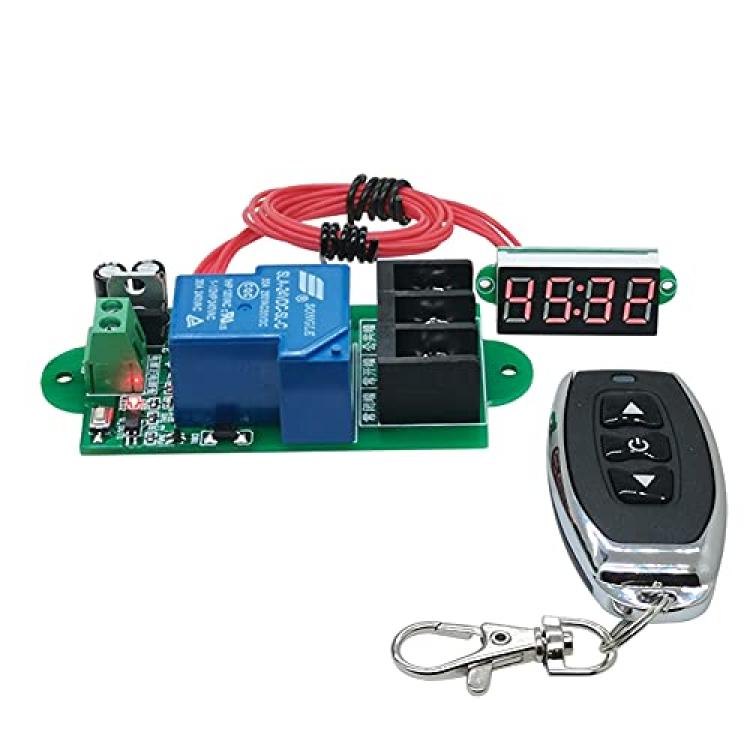

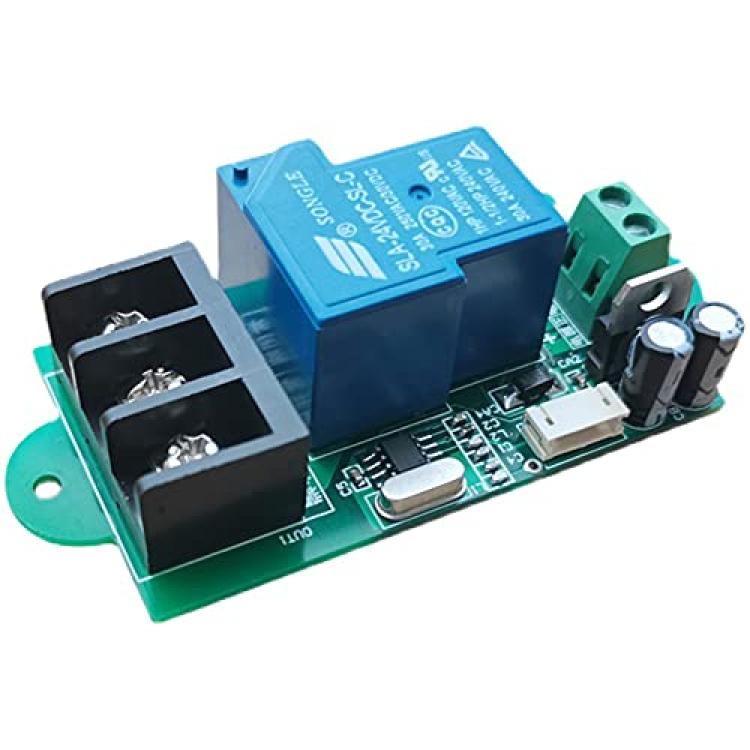

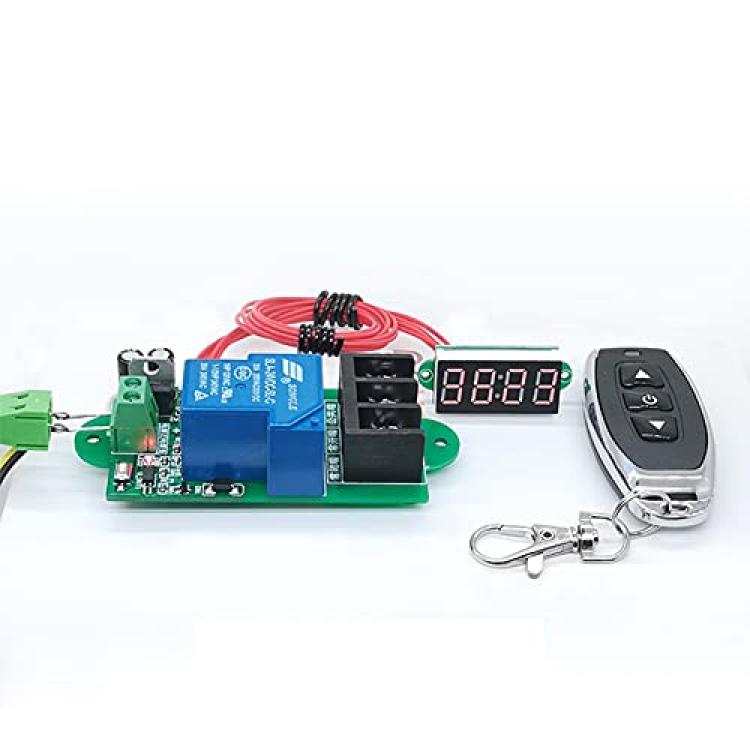

Taidacent Smart Remote Timing Controller 30A Large Current Switch Relay Module Digital Remote Control Switch for Water Pump Motor Wireless Remote Transmitter Controller (6-7.4V)

Parameter
Product name: remote control switch module
Working mode: Delay
Control method: Support one control multiple or multiple control one
Time range: 1S-100mins
Working voltage: DC5V, 6-7.4V, 12V, 24V optional
Output current: 30A
Digital tube line: external length 30mm
Ambient temperature: -40°C-70°C
Remote control distance: 50 meters in open area (support customization)
Product size: 71.5*40*22mm

Introduction to working methods
?Function: Press the start button to start the relay output for N time (N time can be set). The output stops at the end of N time. During the output period, press the start key again, the output will stop immediately and the time will be reset.
?Key setting instructions: Short press the up key to increase the delay time value, long press the up key to enter the time unit value switch.
?Up button: increase time
?Down button: Decrease time
?Middle button: start/stop
