Calvas AC 220V RF Wireless Remote Control Switch System UP&DOWN Remote control/Motor reversing controller 1 Receiver + 1 Transmitter
About this product

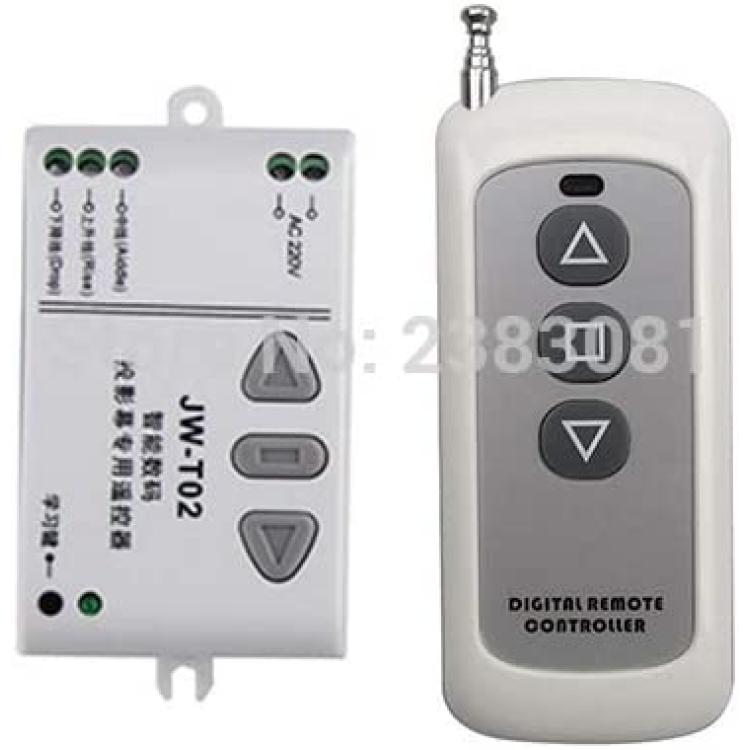

*Package Includes: 1 x Receiver | 1 x Transmitter (with battery) |
*AC 220V motor ,220VRemote control electric curtain.
*1.Transmitter
*Channel: 3CH
*Remote Control Distance: 10-05m
Description
It is a learning code wireless remote control switch (receiver),the output way /working way can be change as you like ,it is easy to match the transmitter .
The wireless RF remote control, no direction, the signal can pass through walls.
Applications:
AC 220V motor ,220VRemote control electric curtain.
1.Transmitter
Channel: 3CH
Remote Control Distance: 10-05m
Encode: 2262 : 2264 : 1527
Size: 120mm x 40mm x 16mm
Power Supply: 1 x 23A-12V battery
2.receive :
Decode: SCM program
Power Supply (Operating Voltage): AC 220V
Relays: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
sensitivity:-105 dBm
Note:Â 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequencyÂ
3.Package includes:
1 x Receiver
1 x Transmitter (with battery)
Item specifics:
Model number: XHYA-470
Channel: 2
Package: No
Wireless communication: RF
Use: Universal
Frequency: 315MHz/433MHZ
Working voltage : AC220V
Channel : 2CH
Working frequency : 315MHz/433MHZ
