Calvas AC 220V Motor RF Wireless Remote Control Switch UP&DOWN 5pcs Remote controller Motor Forwards Reversing Remote Switch

AC 220V Motor RF Wireless Remote Control Switch 220V UP&DOWN  Remote controller Motor Forwards Reversing Remote Switch
1. Input Voltage: AC220V
2. Output Voltage: 2 pcs Live Line
3. Function: Manual & Remote Control
4. Transmitter & Receiver Button for "Up Triangle" Up/Motor Forward. Button " Down Triangle" for Down/Motor Reverse. Button "Square" for Stop.
5. Applicative Motor: AC220V 500W or less 3 Lines Forward Reverse Motor
(Forward Line +Reverse Line+ COM Line)
6. Output State: Latched
Latched------------------
Press button"Up Triangle", the Motor Forward, Press Button "Square" is stop. Press Button " Down Triangle" , the Motor Reverse, Press Button"Square"is stop
7. Encoding Type: Learning Code (Learning Button to add Transmitter)
8. Receive Size: 83 x 51 x 24mm (L x W x H)
9. Transmitter Size: 120 x 45 x 18mm (L x W x H)
10. Transmitter: 50m Transmitter with a base for fixed it on the wall
11. Learning Code
Input AC220V for the receiver, press the receiver learning button, the LED indicator flash, then press the transmitter button, the LED indicator OFF, it means the learning is successfully. When you press the Up Stop Down Button, you will hear the sound of the relay.
12. This Controller Perfectly suitable for Tubular Motor, the controller Terminal for Tubular Motor 4 pcs Lines,( Tubular Motor Yellow Green Line connect to GND).This controller with no limited switch Terminal, Tubular Motor itself with Limited Switch

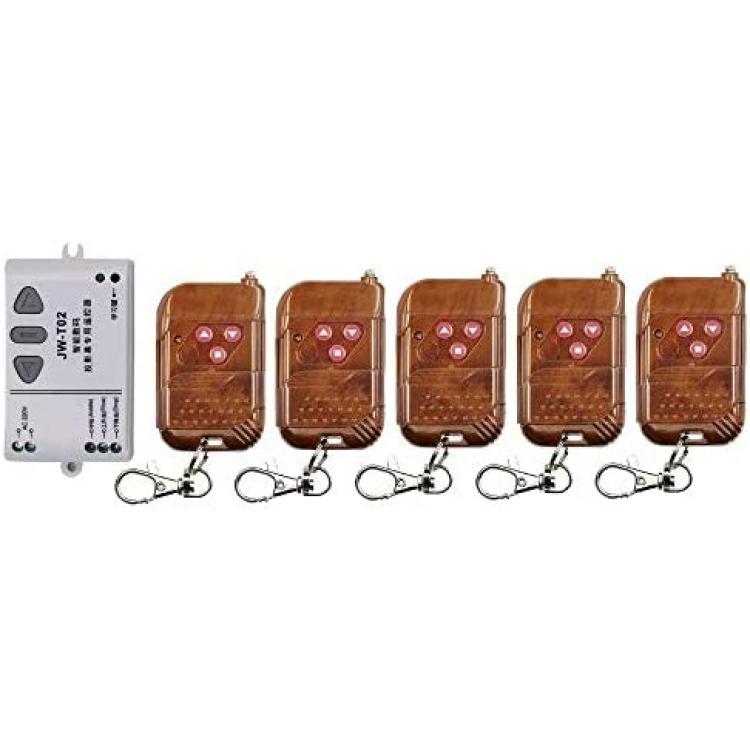

Package includes:
1 x Receiver
5 x Transmitter (    with battery    )

Item specifics:
Use: Projectors
Model number: JW-T02
Channel: 2
Package: No
Wireless communication: RF
Frequency: 315mhz/433mhz
