Calvas 220V AC 1CH 30A Relay Remote Control Switch RF Wireless Remote Controller LED Lamp Motor Waterpump 3000W High Load Power Remote
About this product

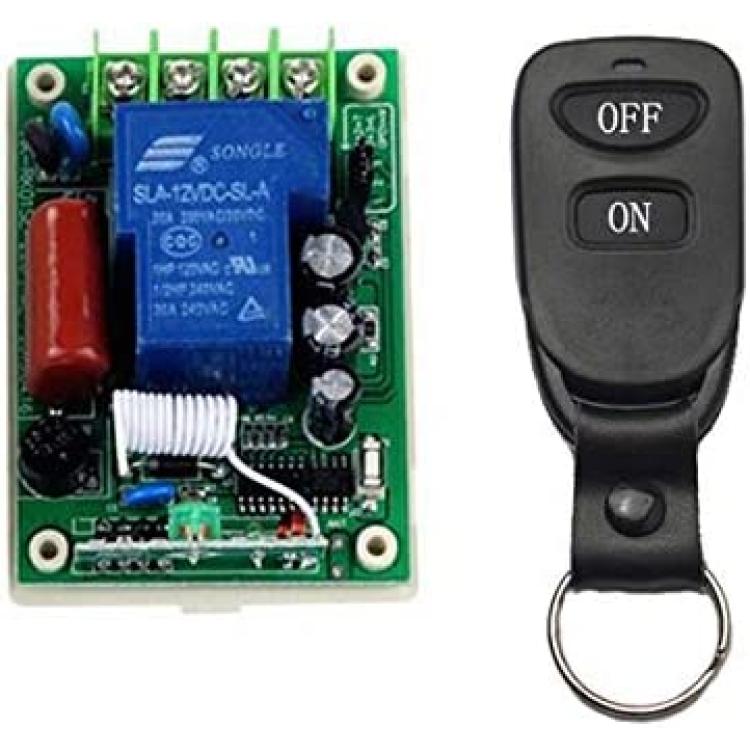

*Package Includes: 1 x Receiver(with cover) | 1x Transmitter (with battery) |
*Channel: 1
*Package: No
*Model number: 220V-1ch
*Wireless communication: RF
Description
220V AC 1CH 30A Relay Remote Control Switch RF Wireless Remote Controller LED Lamp Motor Waterpump 3000W High Load Power Remote
RK01SD-220Â
1.Working Voltage: AC220V
2.Max Load:30A Relay, Resistive load?25A, Inductive load?20A
3.Channel: 1CH
4.Working Frequency : 315MHZ/433.92MHZ OptionalÂ
5.Receiver sensitivity: : -105Db
6.Working temperature : -10'C - +60'C
7.Output way : Momentary. Toggle .Latched Adjusted by JumperÂ
8.Code type: Learning code Add Controller by the Learning Button on the receiver

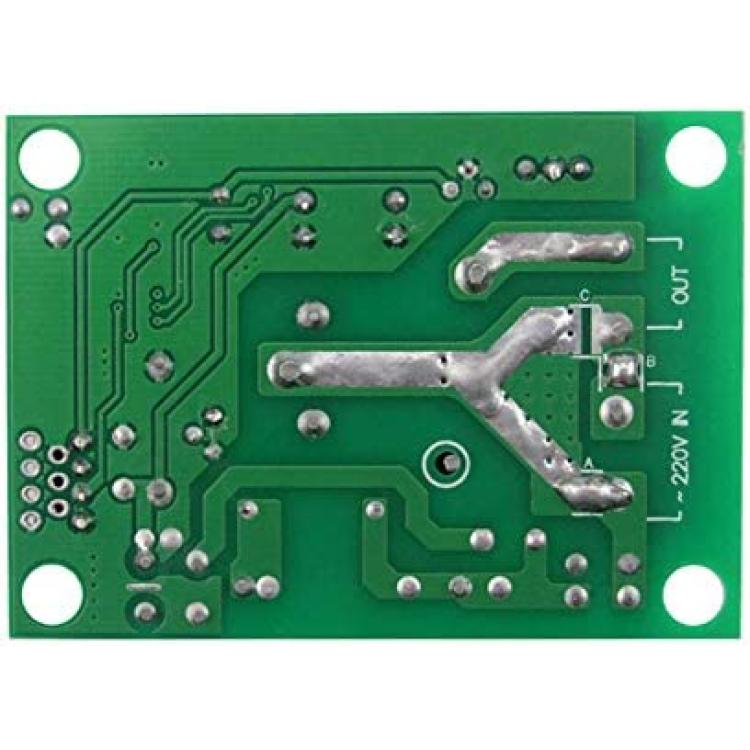

9.PCB Size : 70*50*18mm
Output State:
It is adjusted by the Jumper on the Receiver Board,
A: Momentary-----------Put the Jumper on 1 Pin or take away the Pin
B: Toggle------------put the Jumper on “1&2”
C: Latched------------- Put the Jumper on "2&3"
Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A. the receiver relay A is OFF,
Toggle---------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF,
Latched------------Press transmitter button A, the receiver relay A is ON, Press transmitter button B, the relay A OFF.
Learning Code
Input AC220V for the Receiver ,the receiver power indicator ON, Press the Learning Button until the Led indicator OFF. Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.
Clearing Code
 press the Learning Button and hold, the LED indicator from OFF to ON, it means clearing is successfully.
Note: Â 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency
Package includes:

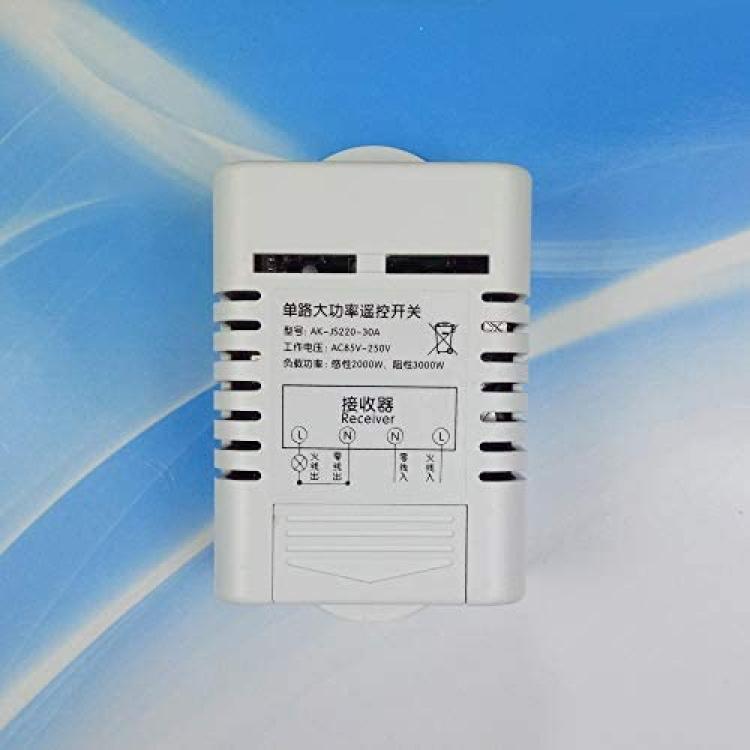

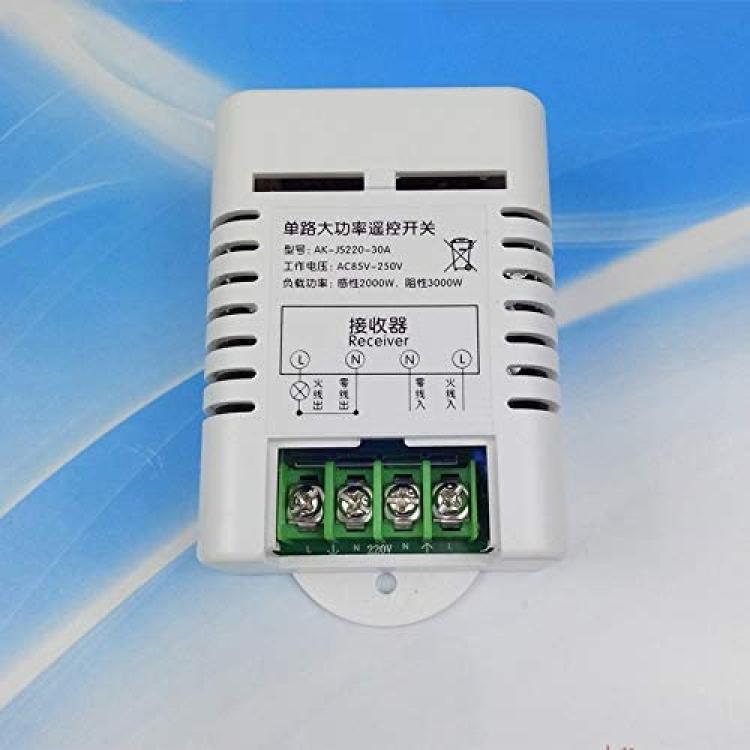

  1 x Receiver(with cover)
   1x Transmitter (with battery)
Item specifics:
Channel: 1
Package: No
Model number: 220V-1ch
Wireless communication: RF
Use: Universal
Frequency: 315mhz /433mh
