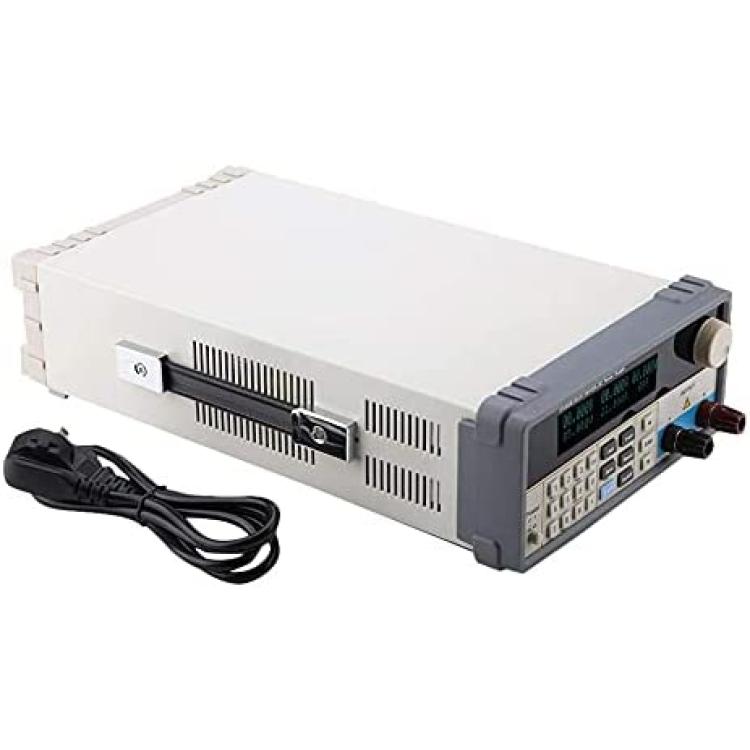

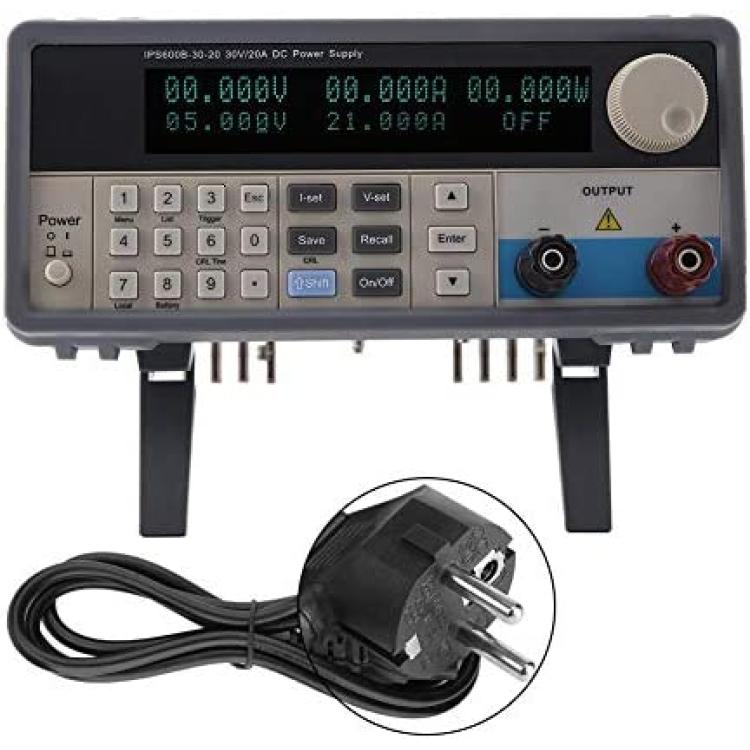

AC Power Supply Variable Digital Power Supply, IPS-600B-30-20 30V 20A Programmable AC Power Supply 220V Lab Power Supply
About this product
*High accuracy and high resolution 1mV/1mA
*High brightness, vacuum VFD display
*Constant voltage / constant current automatic switching
*With output control switch, control is more flexible

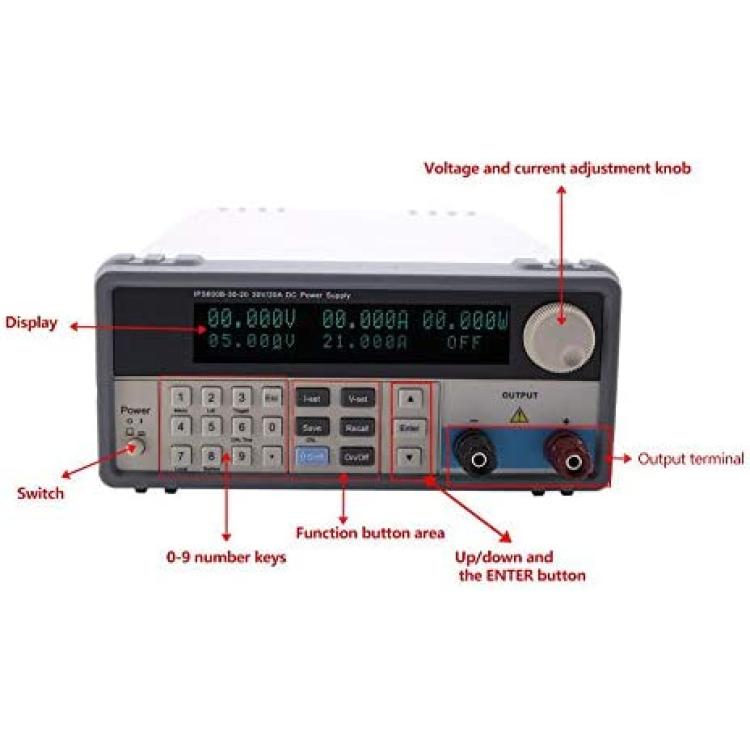

*Convenient and fast operation and setting interface, high-speed adjustment knob and digital button input
Description
Specification:
Condition: 100% Brand New
Model: IPS-600B-30-20
Voltage: 0-30V
Current: 0-20A
Overvoltage Protection: 0.1-34V
Overcurrent Protection: 0.1-24A
Output Voltage
Power supply effect: ?0.01%+4mV
Load effect: ?0.1%+5mV
Recovery time: ?1.5ms (50% load change)
Ripple and noise: 2mVrms, 30mVpp
Temperature coefficient: ?300ppm/?
Setting accuracy: ±(0.03% of reading + 10mV) (25±5?)
Setting resolution: 1mV
Output Current
Power supply effect: ?0.2%+3mA
Load effect: ?0.2%+5mA
Ripple and noise: ?10mArms
Setting accuracy: ±(0.3% of reading + 10mA) (25±5?)
Setting resolution: 1mA
Display
Voltage: 5 digits display
Current: 5 digits display
Voltage resolution: 1mV
Current resolution: 1mA
Reading accuracy: ±(0.02% of reading +5mV) (25±5?); ±(0.05% of reading +10mA) (25±5?)
 Protection: Overload protection, polarity reverse protection, overvoltage protection, overcurrent protection, over-temperature protection
Remote sensing: Maximum compensation voltage 0.1V
Charging Battery: Lithium battery curve Charging
Lock keyboard: Yes

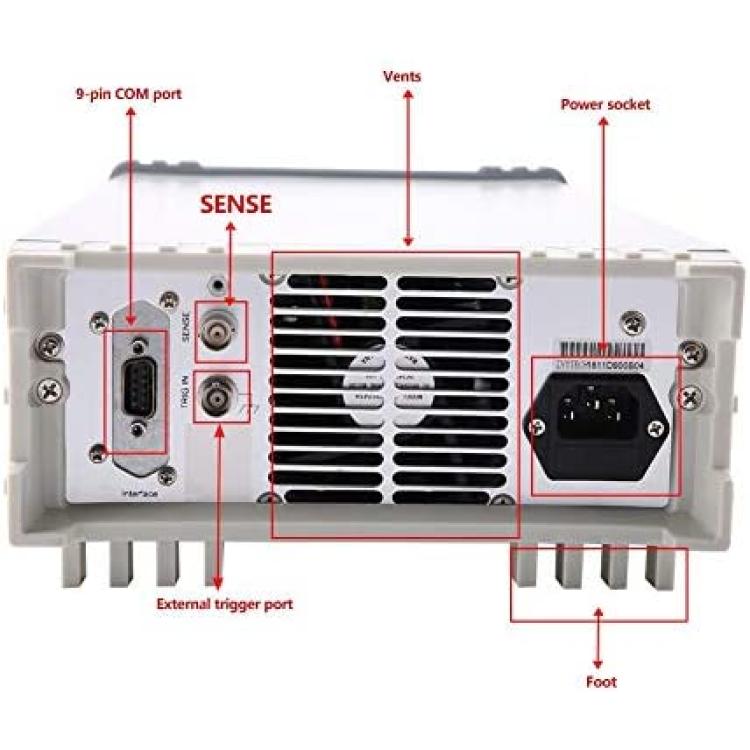

Interface: Standard RS232, support SCPI instruction set, optional analog control interface, RS485 interface
Operating Environment: Indoor use,Altitude:?2000m,Environment temperature: 0~40?
Relative Humidity: ?80%
Storage environment
Environment temperature: -10-70?,Relative Humidity:?70%
Plug: EU Plug
Weight: Approx. 5250g / 185.2oz
Size: Approx. 412 * 215 * 89mm / 16.2 * 8.5 * 3.5in
Package List:
1 * Power Supply
1 * Power Cable
Note: Please kindly make a note if you need any plug adapter.
