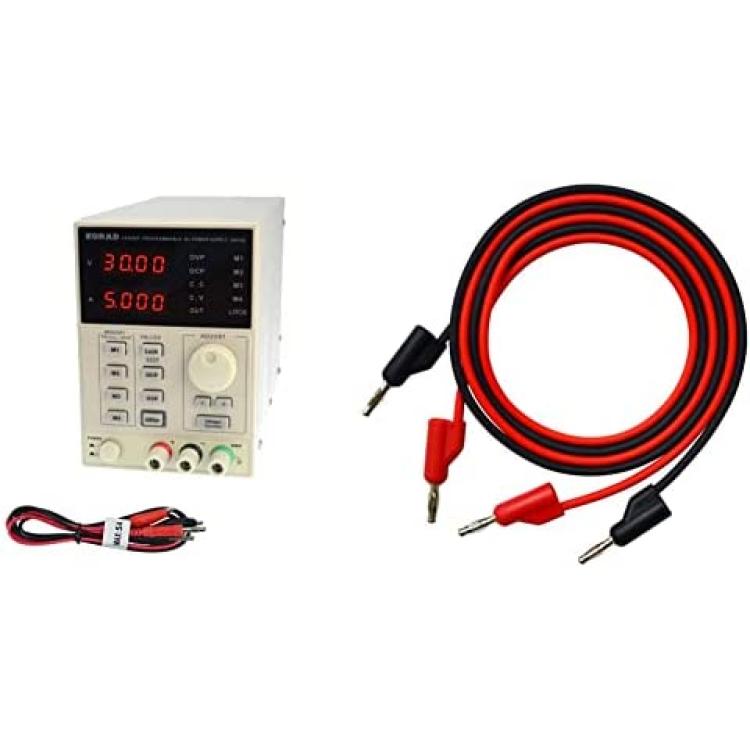

KORAD KA3005P - Programmable Precision Variable Adjustable 30V, 5A DC Linear Power Supply Digital Regulated Lab Grade & Elenco Banana to Banana Test Lead Set - TL-18
Availability: Pre-Order, Inquiry Price
About this product
*Product 1: ◆ HIGH PRECISION INSTRUMENT WITH MANY UNIQUE FEATURES - Very Easy setup with a rapid adjustment knob. There are buttons to switch to course or fine adjustment and a button to switch to voltage or current selection. The input voltage is switchable between 110/220 Volts for use in all countries. It has 4 Memory Recall buttons so you can save time setting up the supply to your required conditions.
*Product 1: ◆ 4 DIGITS READINGS WITH BACK-LIT LED DISPLAY - With a 0.001V and 0.001A resolution, 4 digits provide more accurate and clearer visible readout for the voltage and current values with only 1 knob, extremely durable and easily visible even in low-light usage, meeting the needs of most people, ideal for business, small labs or the hobbyist at home.
*Product 1: ◆ HIGH-QUALITY WITH ESSENTIAL SAFETY - Grounding wire, thermal protection, voltage and current overload and short-circuit protection ensure the safety. The built-in quiet variable fan reduces the operational noise and prolongs the life of product. There is a load on and off button so you can safely connect your load to the supply. There is also a lock button to prevent accidental changes.
*Product 1: ◆ CONSTANT VOLTAGE & CURRENT OPERATION MODE - Easy to dial in the desired voltage with the encoded-controlled adjustment knob and then you choose the mode with one of the constant buttons.
*Product 2: Stackable 3-Way Banana Plug Test lead
Description

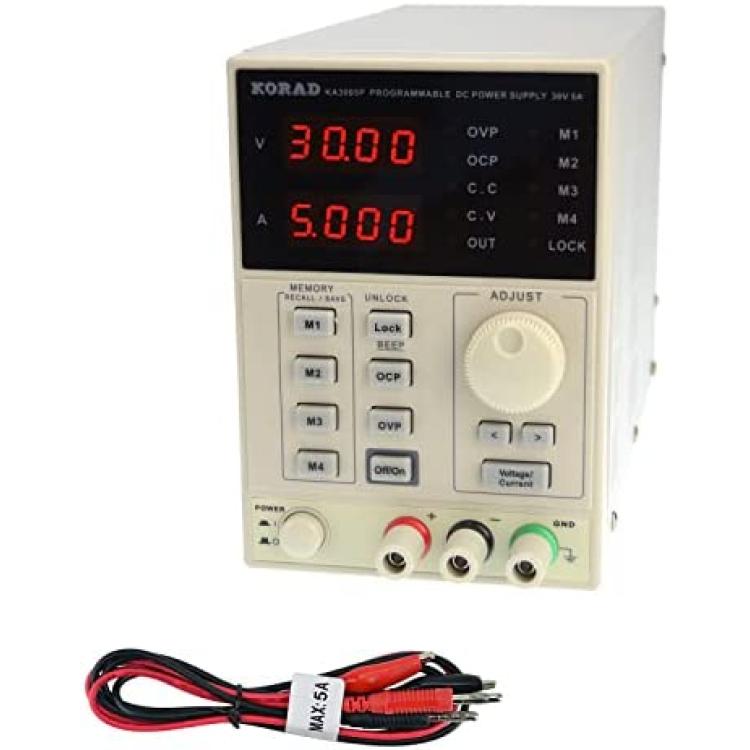

KORAD KA3005P - Programmable Precision Variable Adjustable 30V, 5A DC Linear Power Supply Digital Regulated Lab Grade
This is packed with features and at a cost that can't be beat!!  It has an easy to read 4 digit LED is used to display the voltage and current values and 4 programmable storage setting.
Â
This is a heavy duty single-channel, constant-voltage and constant-current Linear power supply with low ripple and noise, high reliability and high accuracy.
Â
The voltage and current are continuously adjustable.
   It is designed for use in labs, colleges and in production.
Â
USB and RS232 Interface for remote control of the Supply
Â
Operating Conditions:
Â
Input voltage:110V +/-10% switchable to 220VÂ Â +/-10%Â Â
Frequency range:Â 50-Â 60HzOperating temperature:Â 32-104Â F Â (0-40Â ºC)
Operating humidity:Â
Storage temperature:Â 32-158Â F Â (0-70Â ºC)
Storage humidity:Â
Â
Stable Voltage:
Â
Output Voltage Range: 0-30V Continuously adjustableSetup Resolution: 10 mV
Setup Accuracy:
Ripple:Â
Read back Accuracy:Â 10 mV
Temp. Coefficient:Â
Read back Temp. Coefficient:Â
Stable Current:
Â
Output Current Range: 0-5A Continuously adjustableÂ
Setup Resolution:Â 1 mA
Setup Accuracy:Â
Ripple:Â
Read back Accuracy:Â 1 mA
Temp. Coefficient:Â
Read back Temp. Coefficient:Â
Weight:Â 9.5 lbs. (4.3 Kg)
Dimensions: 4.3 x 6.1 x 10.25 inches  (110 x 156 x 260mm)
Â
Includes:Â user's manual, power cable, CD and test leads
Â
2 Year Warranty!
Â
Elenco Banana to Banana Test Lead Set - TL-18
Stackable 3-Way Banana Plug Test lead - Length - 36". For 30 years Elenco has been using their strong engineering and design skills to develop reliable, affordable electronic test equipment, tools, and educational kits
