DTECH FTDI USB to Serial Adapter RS485 RS422 to USB C Cable with Breakout Board LED Indicators RS-422 RS-485 Cable Converter Supports Windows 11 10 8 7 XP Mac (6 Feet)

6ft USB to RS485 adapter cable devices with FTDI chipset allows you to connect a RS422 or RS485 serial devices to your computer via USB type C connector.

Automatically identify RS422 or RS485 communication mode. Fit for twisted-pair cable or shielding wire connection, DB9 breakout board design is convenient to disassemble. 4 wire RS422 Full-duplex communication connection: T/R +, T/R and RXD +, RXD - ; 2 wire RS485 half-duplex communication connection: T/R +, T/R -. RS485 cable to USB serial adapter is the ideal solution for connecting industrial devices such as motor controller, CNC, laboratory testing and measuring equipment, monitoring devices, material handling equipment, and many more devices where mission critical applications are required.

Specific

RS422/RS485 TIA/EIA Standard
USB-C 3.0
Baud rate: 300bps to 460800 bps

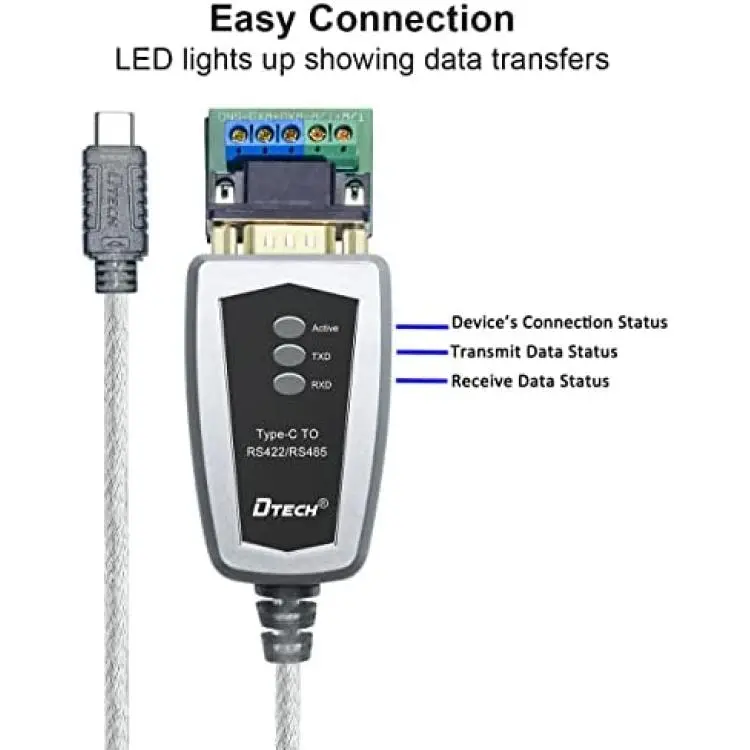

Indication LED's for Power, TX and RX
No IRQs, DMA or required; No IRQ Conflicts
Automatic send data control. Auto detection of data speed; Zero delay automatic transmission
Automatic hand-shaking protocol supported
Built-in static and 600W surge protection; 15KV ESD protection (Electro-Static discharge)
RS422 to USB converter supports multiple terminals up to 32 RS-485 or RS-422 devices
Transmission distance: max 1200 meters for RS-485/422 end
Working modes: asynchronous; point-to-point or point-to-multipoint; 2-line half duplex and 4-line full duplex.
Application fields: Factory automation system, Distributed control system, Other 485/422 serial device wireless network, LED INFO display equipments, PLC control and management, SCADA, measuring instruments and monitoring system, CNC management, Medical treatment/medication automation, Building automation, Check on work attendance/ Human resource management.

What’s Included

1 x 6 feet USB to RS-422 RS-485 Adapter

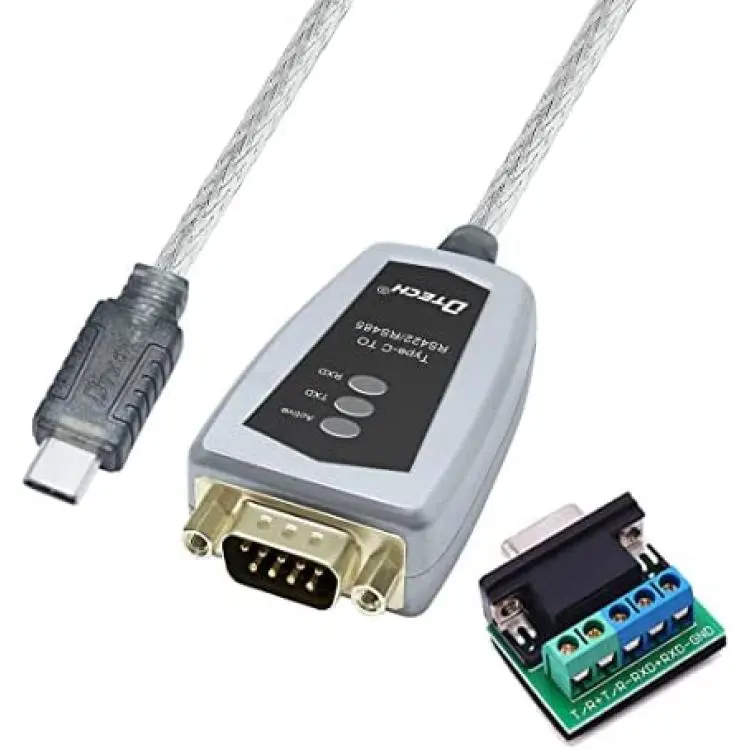

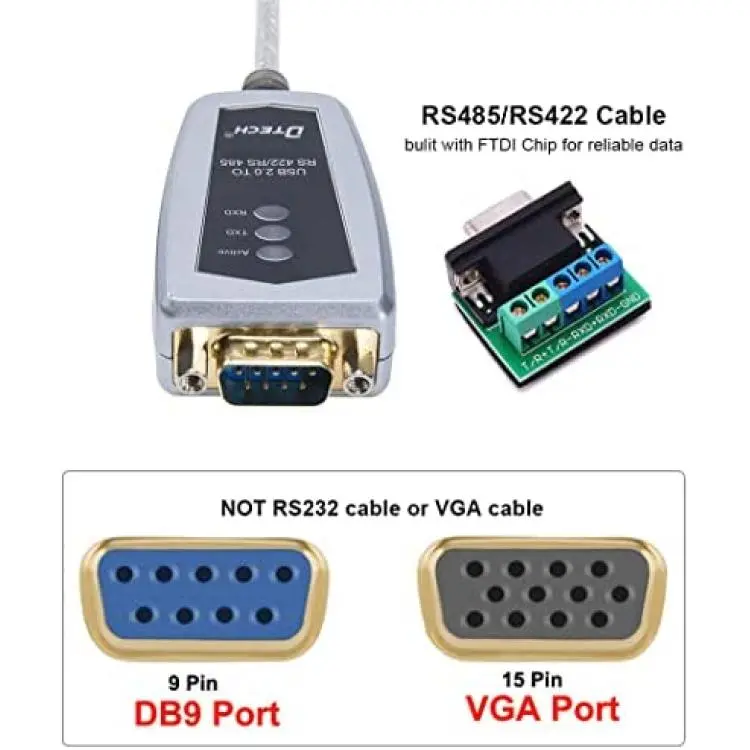

1 x 9 Pin female to 5 position Terminal Board
1 x CD driver
