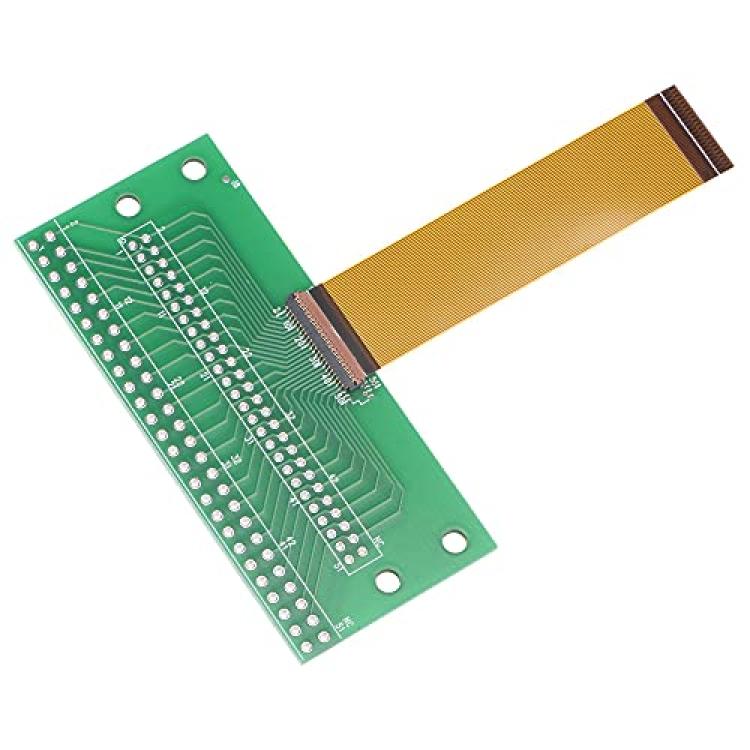

uxcell Flexible Flat Ribbon Cable with Converter Board 0.3mm 45P 60mm DIP 2.0mm 2.54mm

Description:
The term FFC(Flexible Flat Cable) usually refer to the extremely thin flat cable often found in high density electronic applications.

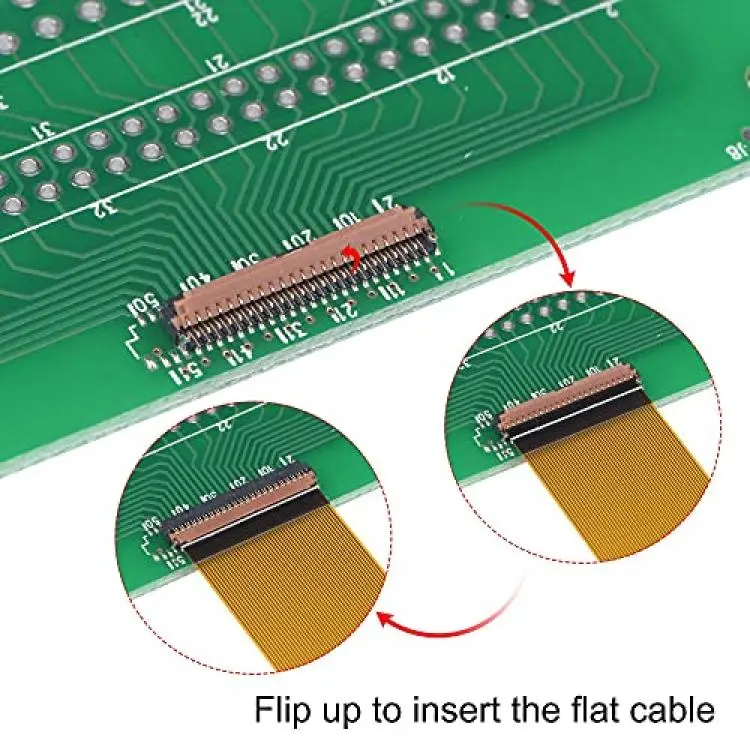

The each end cable is reinforced with a stiffener to make insertion easier.
The stiffener makes the cable slightly thicker.
Applying to various of the LCD screen, such as digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, etc.

Note:
The carrying board is original for a 51 pin seat, but the board you will purchase is ready for a 45 pin converter seat.

Specification:
FPC Type: A type (Pin on the Same Side)
Pins: 45 Pin
Pitch: 0.3mm
Flat Cable Length: 60mm
External Material: Plastic
Cable Color: Brown, Copper Tone
Board Color: Green
Cable Size: 60 x 14 mm / 2.36 x 0.55 inch(L*W)
Board Size: 67 x 30 x 1.15 mm / 2.64 x 1.18 x 0.05 inch (L*W*H)

Package Content :
1 x FPC Extension Connector with Flat Cable
