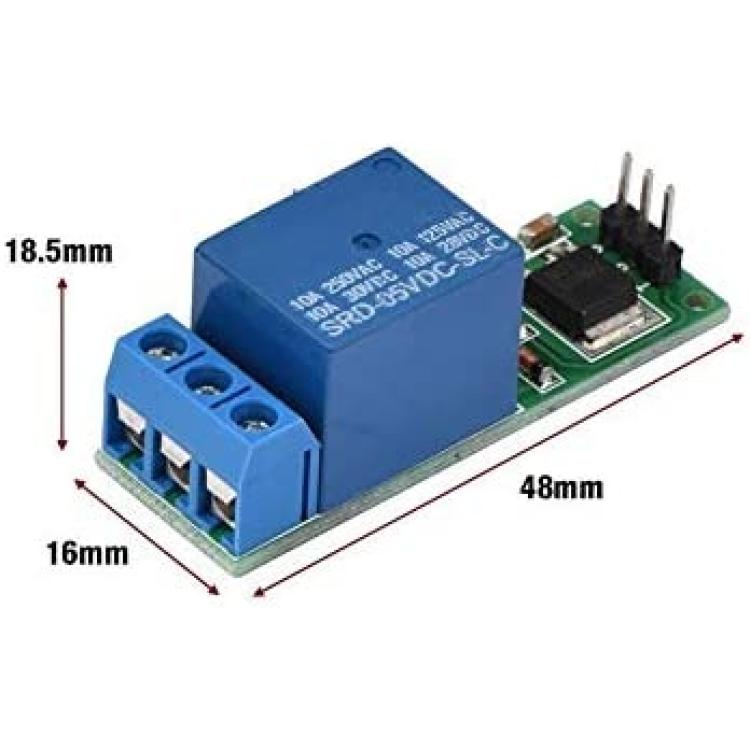

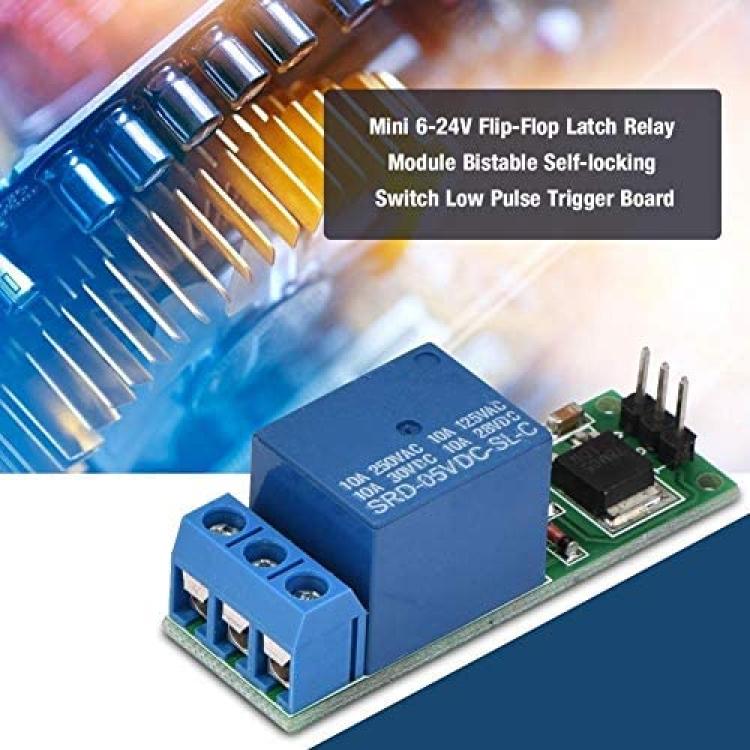

Enrilior Mini 6-24V Flip-Flop Latch Relay Module Bistable Self-Locking Switch Low Pulse Trigger Board

Features:
Adopted of high quality electronic components, and precision process, ensure for the durability
100% brand new and high quality

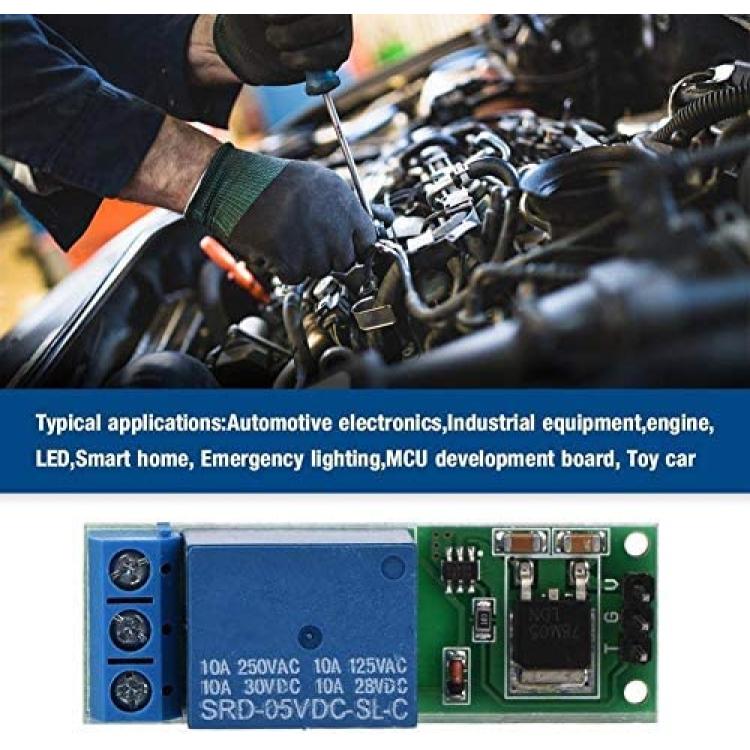

Typical applications:Automotive electronics,Industrial equipment,engine, LED,Smart home, Emergency lighting,MCU development board, Toy car
This is a bistable (self-locking) relay module that triggers once the relay pulls (and holds); Trigger again, relay release (and hold)
USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

Specification:
Working voltage: DC 6-24v
Operating current: 60-70mA
Standby current: 1UA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: low pulse trigger
Weight: Approx.15g/0.5oz

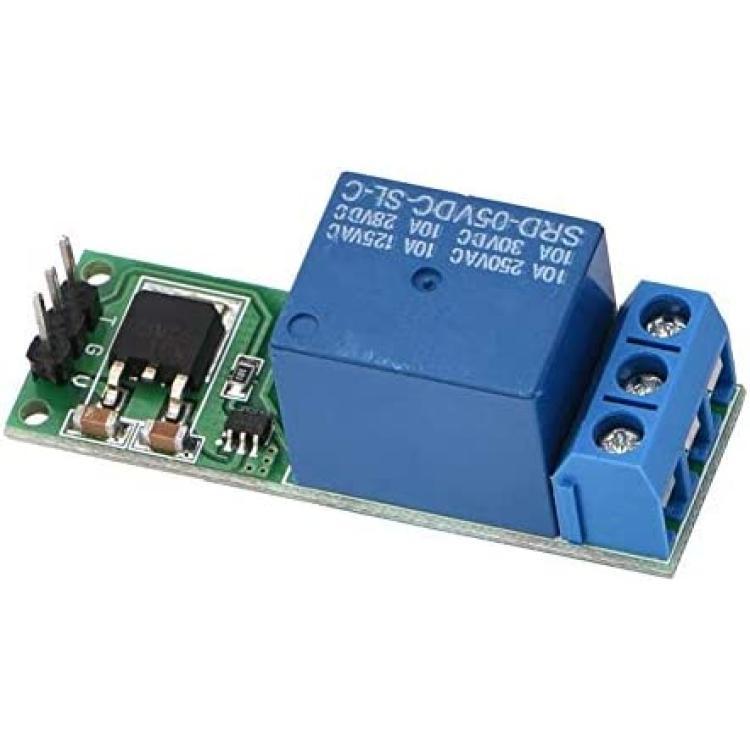

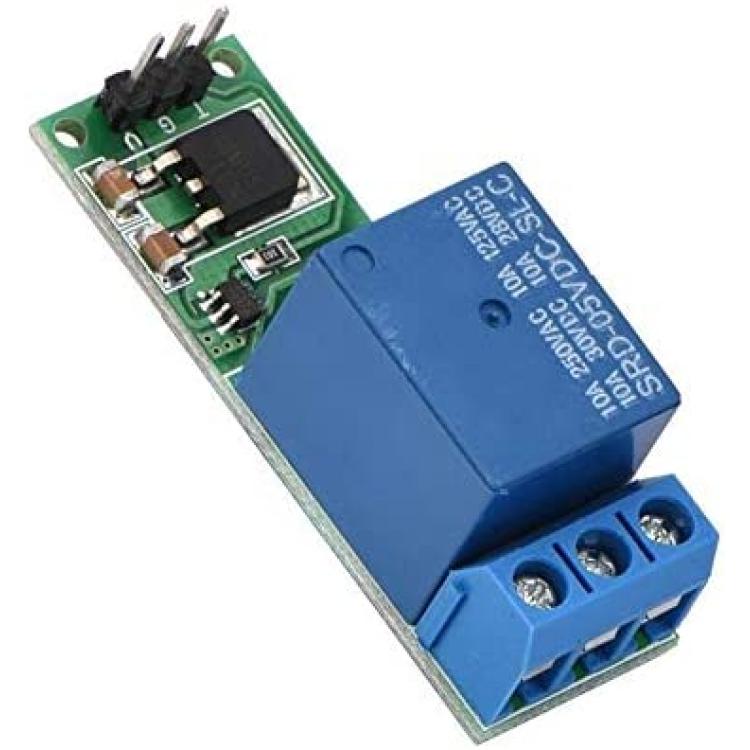

Module interface:
1. VCC: positive power supply (VCC)
2. GND: negative power supply (GND)
3. T : Low pulse trigger
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

Package list:
1 x Low Pulse Trigger Board
