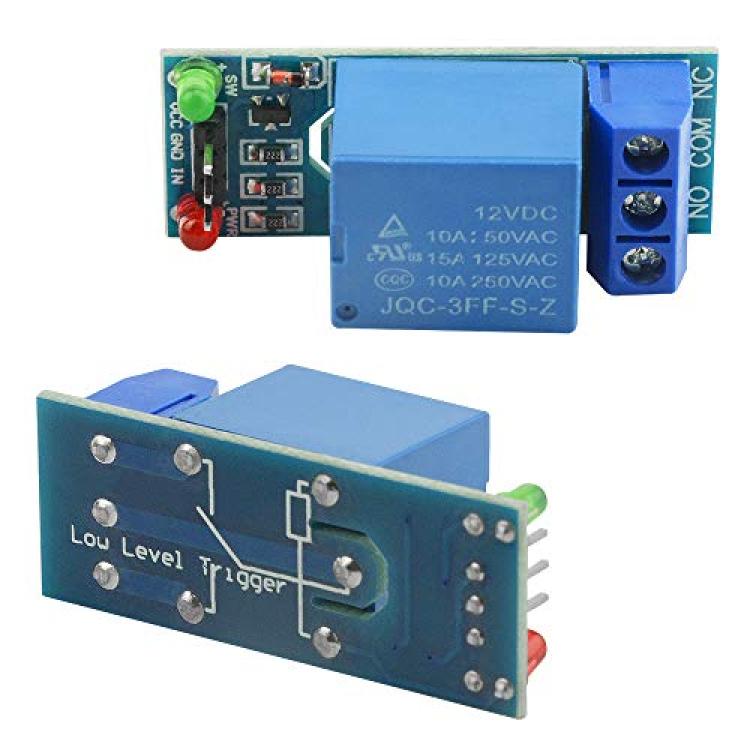

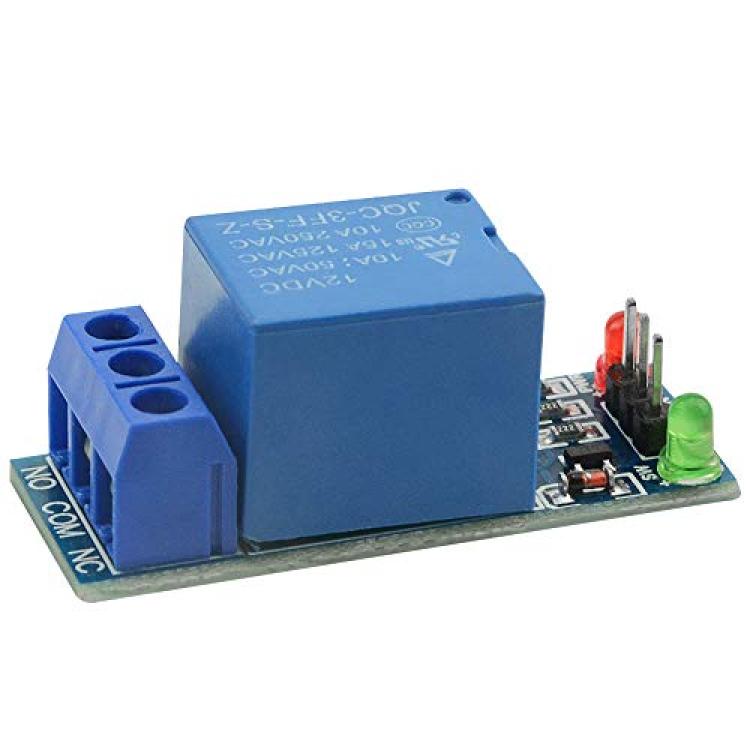

XINGYHENG 10PCS One Channel Relay Module 12V Low Level Trigger Relay Expansion Plate Load Controlled Relay Switch Module for Industrial Automation Process

Features and benefits:
Product introduction:

1. This module conforms to international safety standards, and there is an isolation slot between the control area and the load area;

2. With power supply and relay action indication, suction and bright, not bright;

3. When there is a signal at the signal input end, the common end and the normal beginning will be switched on;

5. Can be used as a MCU development board module, can be used as home appliances control;

6. Control dc or ac signal, can control 220V ac load;

7. There is a normally open and a normally closed contact;

8.Blue KF301 terminal is more convenient to connect to the control line.

Electrical parameters:
The module Operating voltage: 12V

Static current: 5.5ma

Static current: 42mA8.

Trigger voltage: 0-4v8.

Trigger current: 3mA8.

Working temperature: -20 ° C ~ +85 ° C

Indicator light: LED

Installation: Screw fixation

Size: 58mm/2.3’’ ×45mm/1.77’’ ×26mm/1’’(Length×Wide × Height)

Weight: about 0.1KG

Package including:

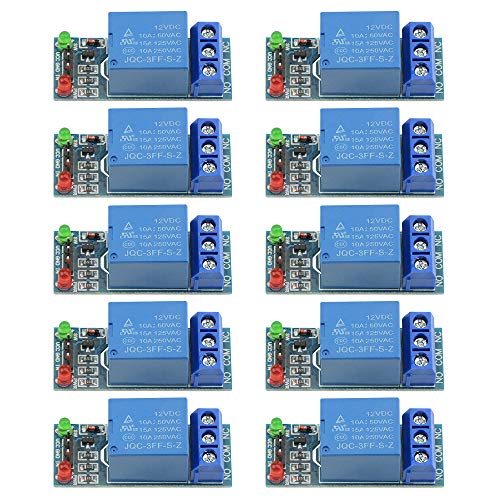

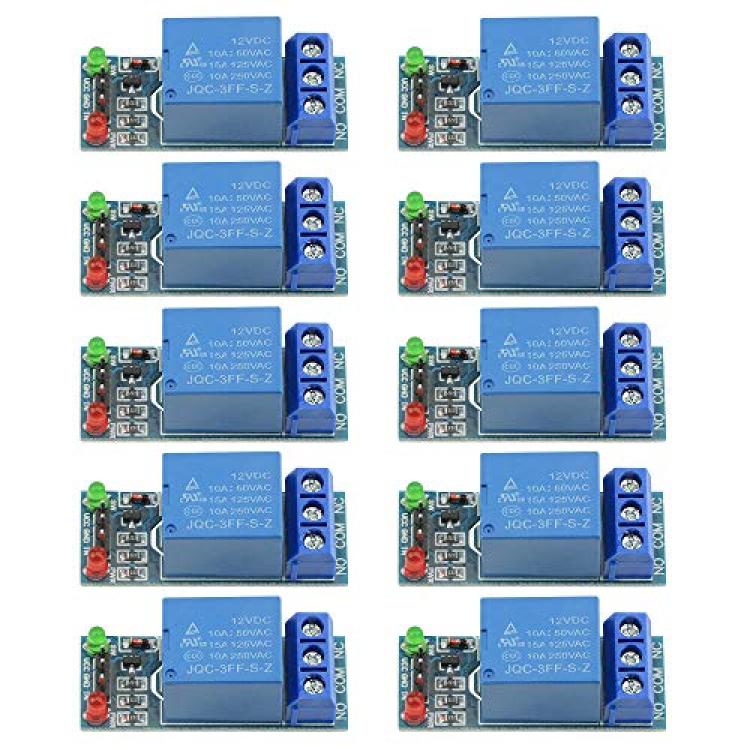

10 x relay module
Note: High level trigger refers to the trigger mode with voltage between the signal input terminal and the ground,
which can be understood as a short-circuit trigger mode between the signal input terminal and the VCC positive pole.

Low-level trigger means that the voltage between the signal input end and the ground is triggered by OV,
which can be understood as a short circuit trigger between the signal input end and GND negative pole
