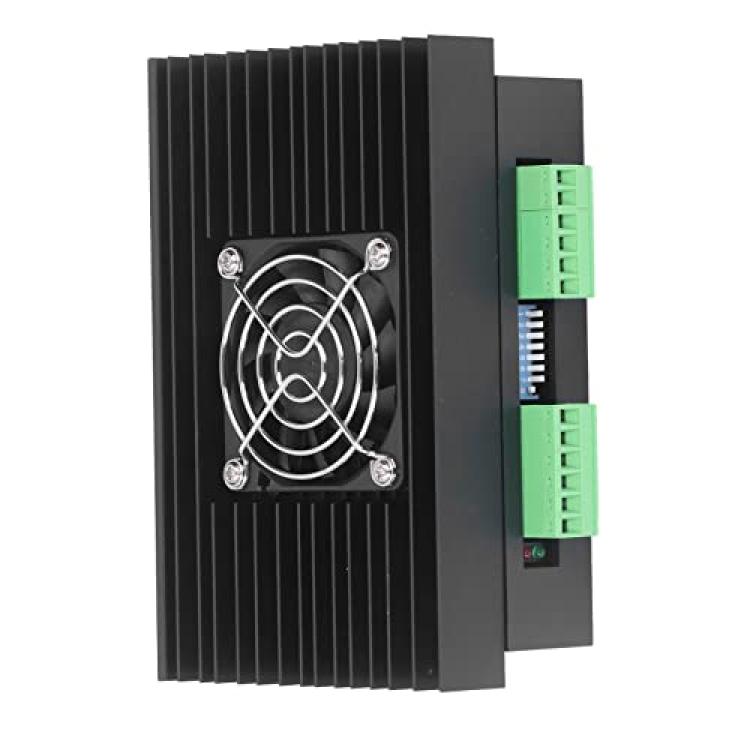

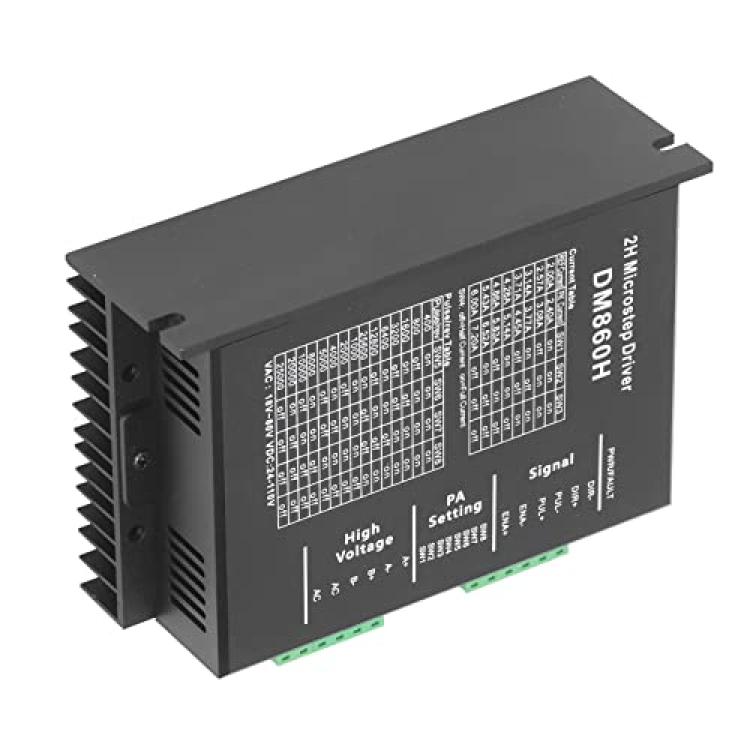

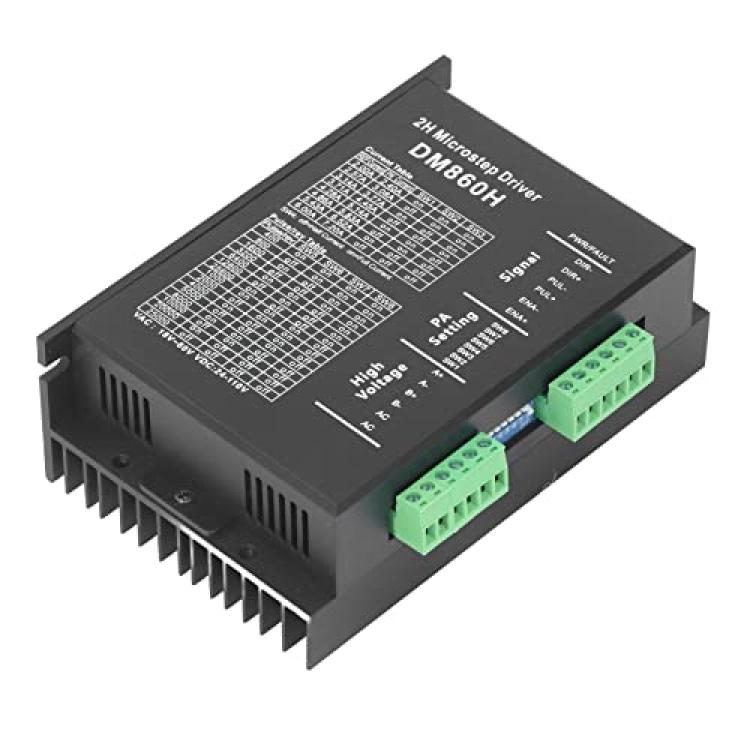

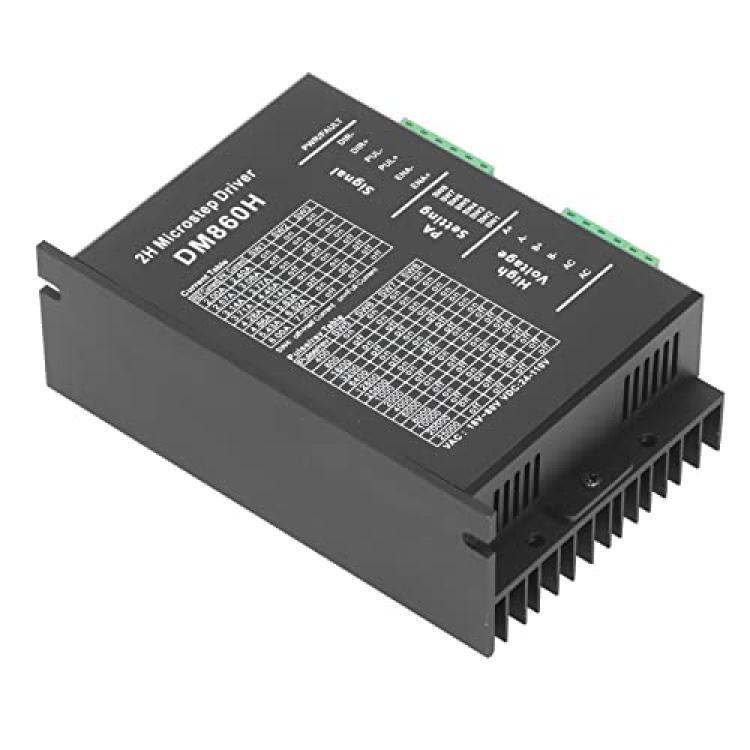

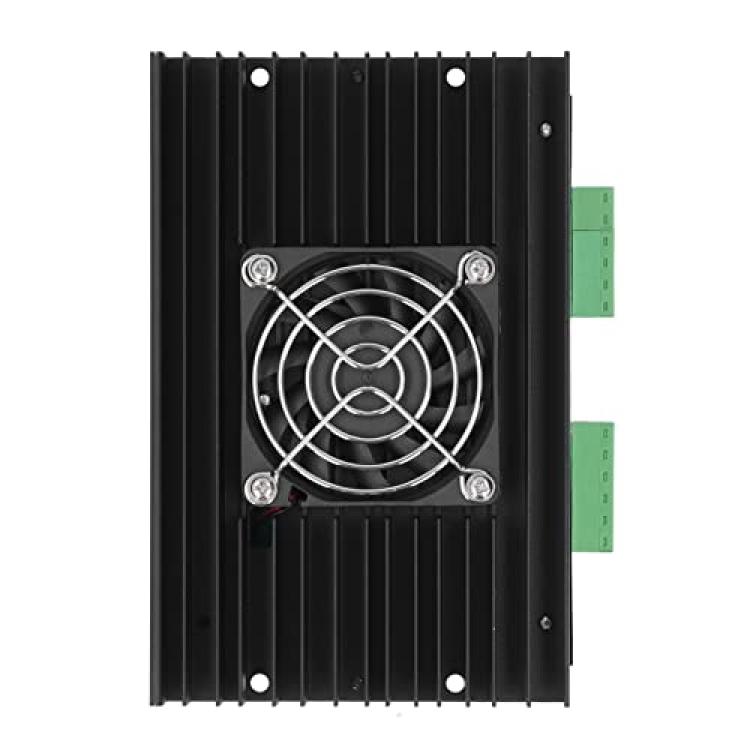

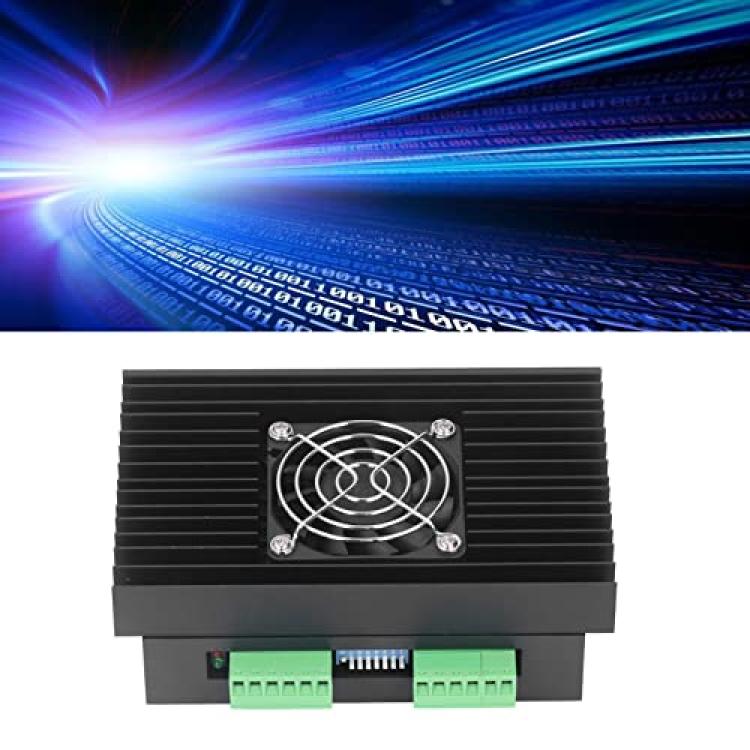

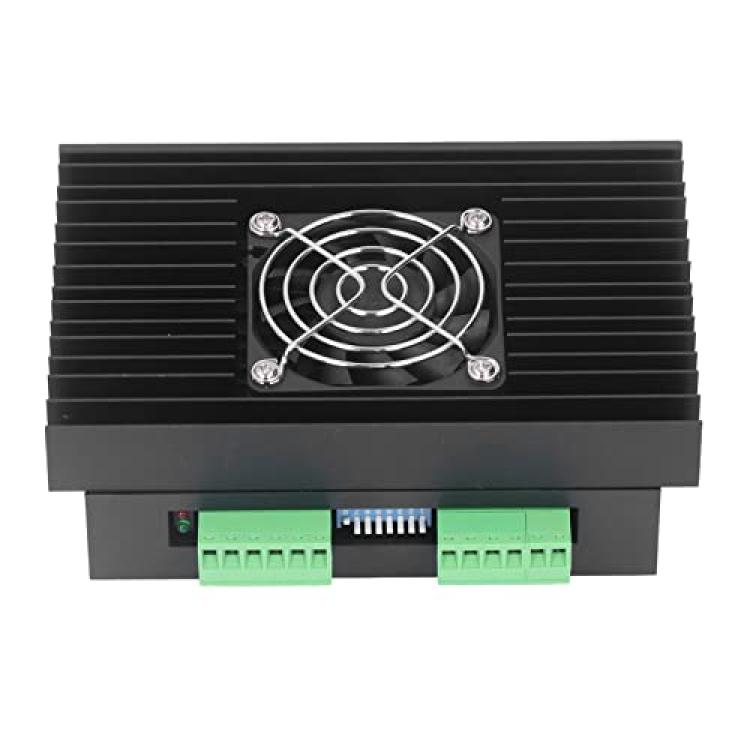

Stepper Motor Driver, DM860H Adjustable Output Motors Drivers Controller for Equipment
Availability: Pre-Order, Inquiry Price
About this product
*Input Currents: 24‑80V DC power supply, the capacity is no less than 200VA, and the typical value is DC 36V.
*Output Current: 2.4A‑7.2A with 8 adjustable gears, and the resolution is 0.5A, makes the operation simpler.
*Stable Driving: Dual constant current PWM output drive output ensures stable work performance with .
*Better Designs: The insulation resistance is less than 500MΩ, while insulating strength can get to 500V/min.
*Easy to Install: Comes with a light weight as well as a compact size, the installation is very convenient.
Description
Feature:
1. Input Currents: 24?80V DC power supply, the capacity is no less than 200VA, and the typical value is DC 36V.
2. Output Current: 2.4A?7.2A with 8 adjustable gears, and the resolution is 0.5A, makes the operation simpler.
3. Stable Driving: Dual constant current PWM output drive output ensures stable work performance with .
4. Better Designs: The insulation resistance is less than 500M?, while insulating strength can get to 500V/min.
5. Easy to Install: Comes with a light weight as well as a compact size, the installation is very convenient.
Specification:
Item Type: Step Motor Driver
Material: Aluminium Alloy
Model: DM860H
Colour: Black
Supply Voltage: DC12-36V or AC12-24V
Driving Current: 0.3-2.0A
Subdivision Accuracy: 1-128 Subdivision Options
Input: Optically Isolated Signal Input
Operating Noise: Motor Noise Optimization Function
Application: Can drive any 2 phase or 4 phase step motor with current below 2.0A.
Frequency: 200KHz Chopper Frequency
Operating Temperature: 0?~+50?
Ambient Humidity: <80% RH, no condensation, no frost.Â
Package List:
1 x Step Motor Driver
Note:
1. Application: Avoid dust, oil mist and corrosive gas.
2. The maximum vibration should not exceed 5.7m/s2.
