Nema17 42 Stepper Motor 40mm 64oz.in (45Ncm) 1.7A 1.8 Degree 2phase with 1M 4-pin Cable& Connector for 3D Printer Hobby CNC Router Engraving Milling Machine 17HS4401J
Availability: Pre-Order, Inquiry Price
About this product
*Is Discontinued By Manufacturer : No
*Package Dimensions : 5.9 x 4.5 x 3.5 inches; 12.8 Ounces
*Date First Available : August 12, 2017
*Manufacturer : Changzhou Rattm Motor Co.,Ltd
Description
Package Including:

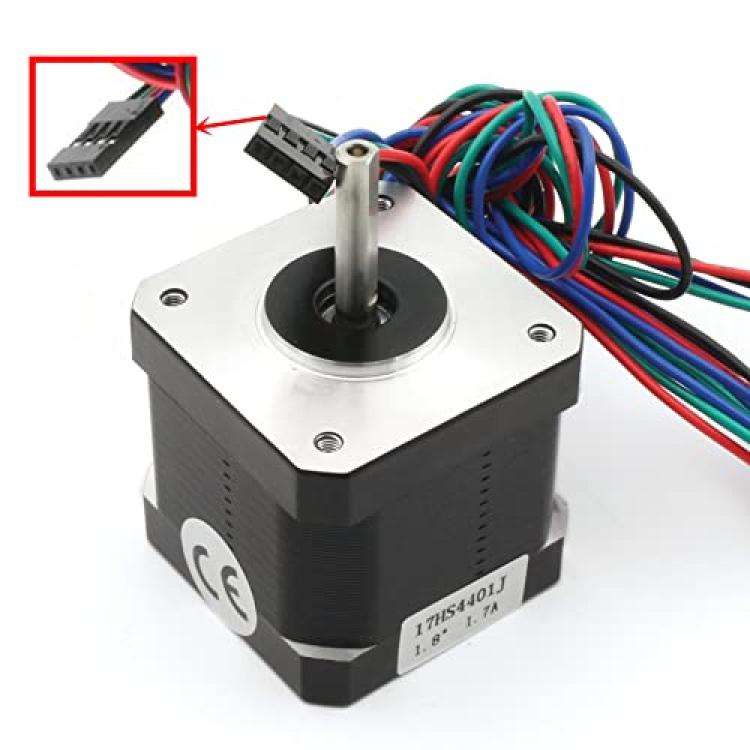

1 x 17HS4401J Nema17 Stepper Motor with a 1 metre long power cable with a 4-pin connector
Stepper motor Specification:
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg.
Holding Torque: 0.45Nm(64oz.in)
Rated Current:1.7A
Frame Size:1.6 x 1.5 x 1.6 inches
Size (L * W * H): ca. 42 * 42 * 40mm
Weight: 380g
features
Nema17 Stepper Motor 64 oz.in (45 Ncm) 40mm Body 1.8 degree with 1M 4-pin Cable DIY 3D Printer CNC Robot.
It's ideal for the RepRap Prusa, Mendel 90, Rostock and similar 3D printers, as well as CNC and robotics applications.
This is high torque Nema 17 stepper motor with 1.8 deg.Rated Current is 1.7A, holding torque of 45Ncm(64oz.in).
The motor is supplied with a 1 metre long power cable with a 4-pin connector already fitted - ready to plug and print!
Connection: Black(A+), Green(A-), Red(B+), Blue(B-).
