RATTMMOTOR DM542 Stepper Driver CNC Microstep Stepper Motor Driver 1-4.2A DM542 Digital Nema17 Nema23 Stepper Motor Controller 20-50VDC for 3D Printer CNC Router Engraver Milling Machine

RATTMMOTOR DM542 Stepper Driver CNC Microstep Stepper Motor Driver 1-4.2A DM542 Digital Nema17 Nema23 Stepper Motor Controller 20-50VDC for 3D Printer CNC Router Engraver Milling Machine

Brand: ‎RTM
Product Code: MM27405
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Digital two-phase hybrid stepping motor driver controlled by DM542 DSP, suitable for four-wire, six-wire and eight-wire two-phase hybrid stepper with phase current below 4.2A and outer diameter 39, 42, 57, 60, 86mm Motor.

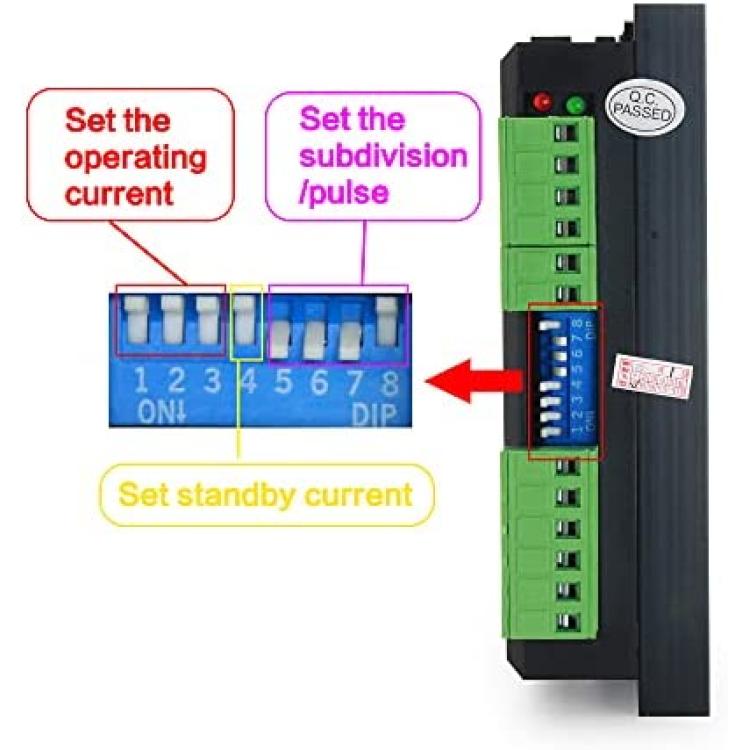

*Various subdivisions within 128 and various currents within 4.2A can be set, and a dedicated motor control algorithm is added internally, which can adopt corresponding operating parameters for different motors, so that the motor runs very smoothly with minimal vibration and noise.

*Built-in overheating, overcurrent, overvoltage detection, to protect the stable operation of the drive.

*Suitable for various automation equipment and instruments in the field of motion control, such as: 3D printers, laser processing equipment, engraving equipment, medical equipment, measuring equipment, electronic processing equipment, textile and clothing equipment, etc.

*It has strong anti-interference ability and can achieve high-precision positioning in the harsh environment of the power grid.

Description

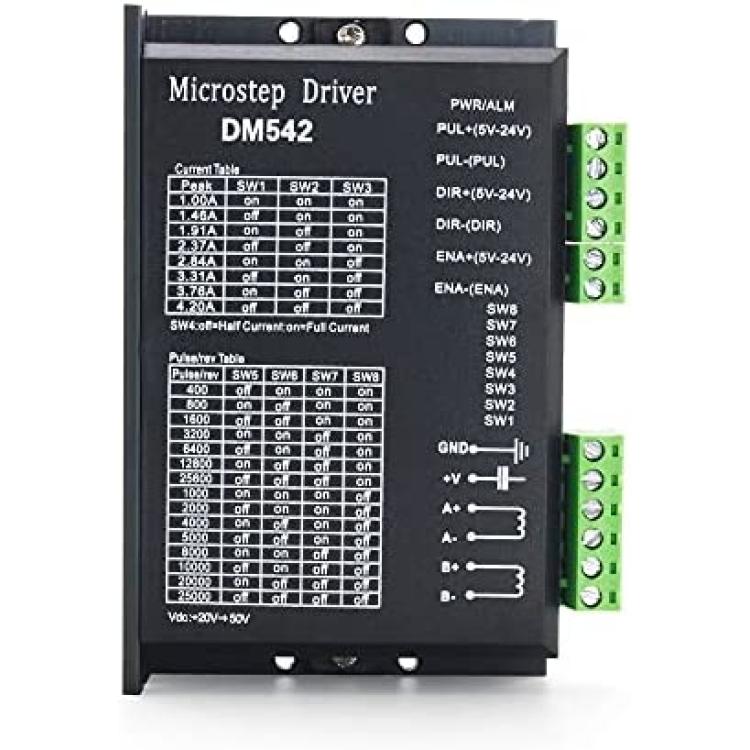

The driver integrates over-voltage, over-current, and wrong-phase protection fuctions.Strong-anti-interference ability, can achieve high-precision positioning in the harsh environment of the power grid.High reliability: power devices have enough margins, and they have strictly tested before leaving the factory.Cooling method: natural cooling or forced air coolingOccasion: Avoid dust, oil, corrosive gas, high humidity and strong vibrationPlace, no flammable gas and conductive dustTemperature: 0?—50?Humidity: 40-90%RHVibration: 10-55Hz/0.15mmStorage temperature: -20?—65? Input signal optical isolation Bipolar constant current chopping method DC power supply 20-50VDC (recommended 24-48VDC) Maximum driver current 4.2A Adjustable output current DIP switch Low speed and zero vibration, minimal noise High subdivision: 2, 4, 8, 16, 64, 128, 5, 10, 20, 25, 40, 50, 100, 125 V: DC power supply positive pole, range +20V—+50V GND: DC power supply negative A+ A-: Motor phase A winding B+ B-: Motor B-phase winding
