DC 10-60V MAX 20A PWM Motor Speed Controller Regulator Motor Driver Governor Stepless Variable Rotary Switches 12V 24V 36V 48V Pulse Width Modulator for 775 Motor and More
Availability: Pre-Order, Inquiry Price
About this product
*Soft Start Switch --- soft start can solve the damage caused by instantaneous high current to speed controller
*Blocking Protection(20A current limited) --- can limit the high current produced by the blocking of the motor, also with low voltage and stall/over-current protection

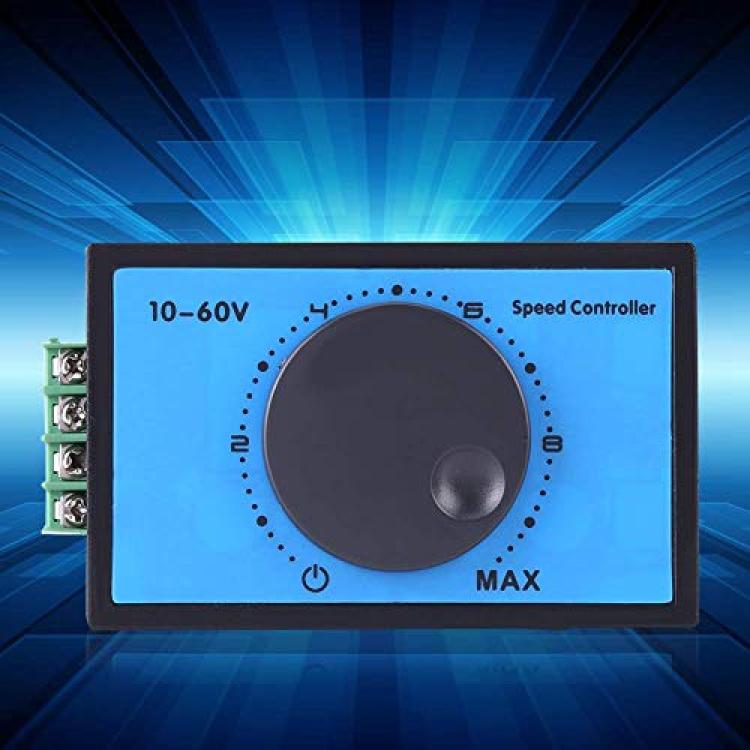

*Easy to Use --- Rotary panel switch control makes it more easy to control the speed steplessly with high accuracy
*Ultra-high Power Control --- The maximum current is 20A, it is recommended not to exceed it.

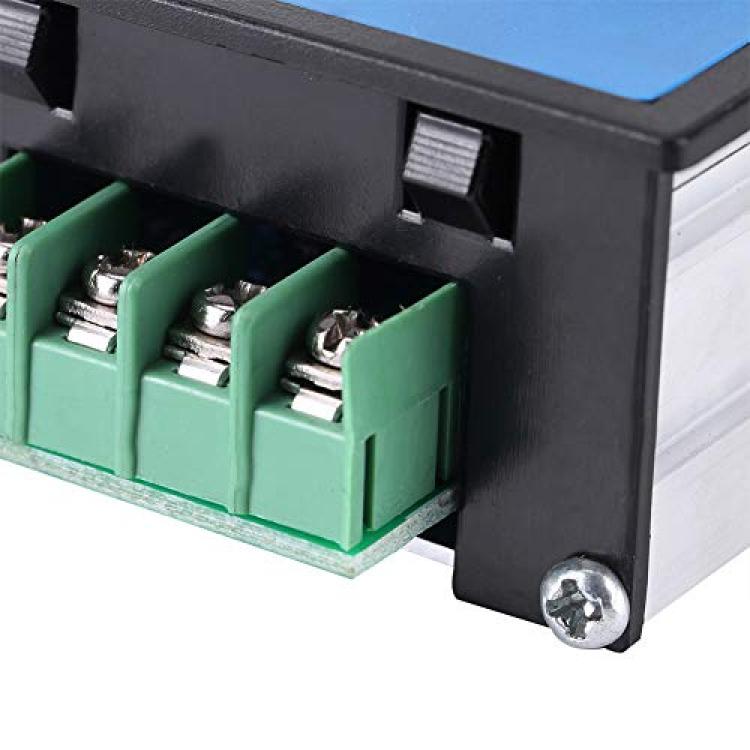

*Barrier Terminal Block Wiring --- Convenient for wiring connecting, ideal item for elctronics DIY
Description
The DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It features soft start, blocking and low voltage protection. It's high power dc motor controller, the maximum current is 20A. Equipped with a stepless rotary switch, it's easy for you to control your dc motor with high accuracy.
Specification:
Input voltage: DC 10-60V (The specific voltage must be the same as the rated voltage of the motor)
Output voltage: Linear output under load
Current: 0-20A (Limited value 20A) Â Â Â Â Â Â Â Â Â Â Â
Regulating type: regulating current
Regulating method: potentiometer(270° linear) Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Regulating speed range: 0-100%
Control frequency: 15KHZ
Knob: 10K(with switch) Â Â Â Â Â Â Â Â Â Â Â Â Â Â

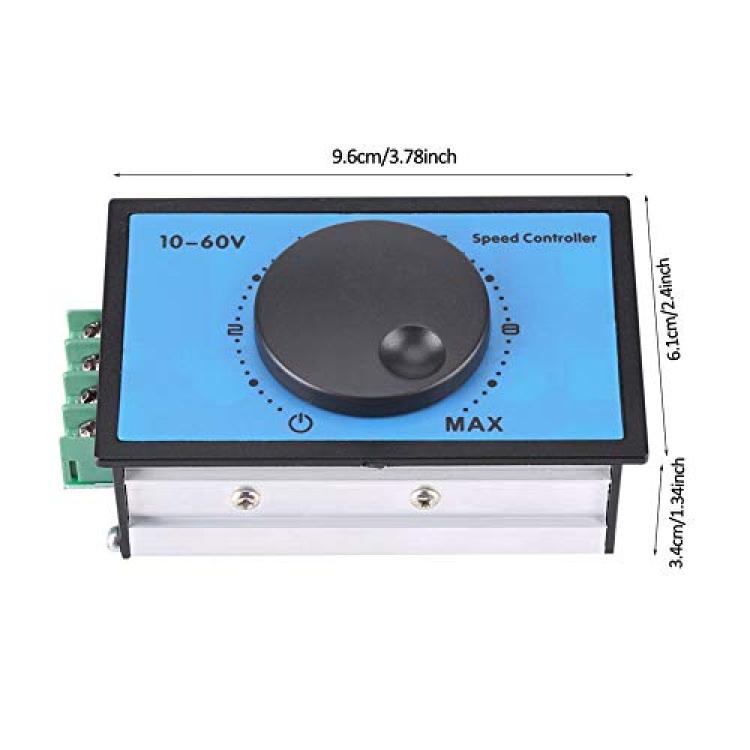

Size: Approx. 9.6 x 6.1 x 3.4cm / 3.78 x 2.4 x 1.34inch
Weight: 107g
      Â
Package Included:
1 x DC Motor Speed Controller
  Â
Note:

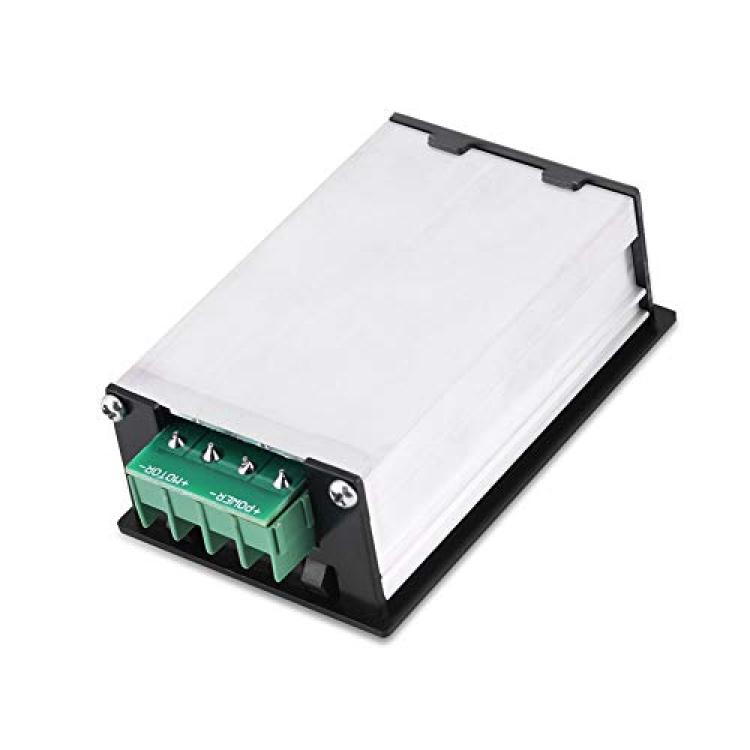

The input terminal must be divided into positive and negative input. The input voltage must be the same as the rated voltage of the motor(within DC 10-60V). Can not input AC 220V, or it will burn up the module directly. Blocking protection is not a power cut, it is the limited current value of 20A. Please allow 1-3cm differences due to manual measurement. Thank you for your kindly understanding.
