uniquegoods 9V 12V 24V 36V 48V 60VDC 20A PWM DC Motor Speed Controller Stepless Variable Speed Regulator With Metal Shell CCM5S
Availability: Pre-Order, Inquiry Price
About this product
*Item size:4.14*1.97*1.3",weight:4.45oz
*Input supply voltage: 9V-60VDC(max)
*PWM frequency: 25kHz; Duty Cycle adjustable: 5%-100%

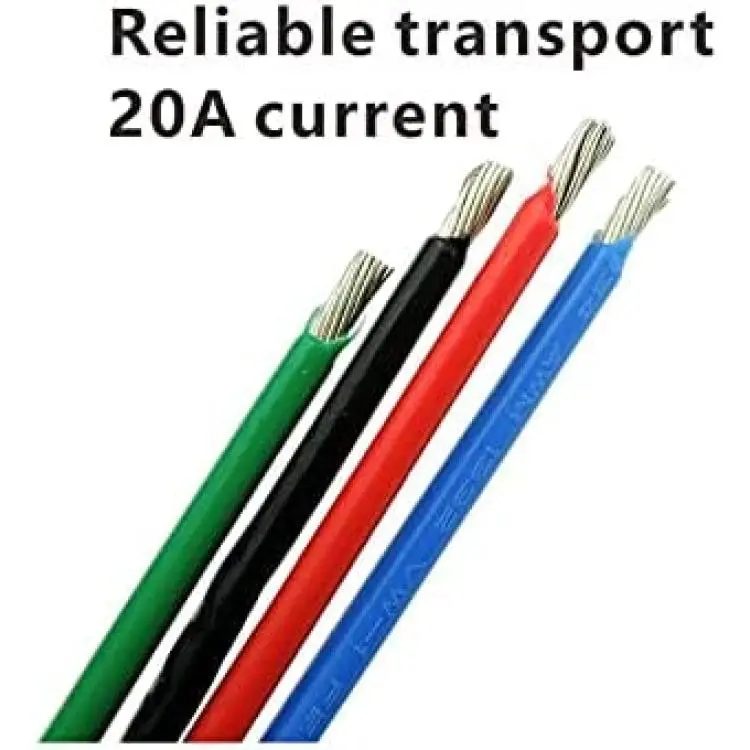

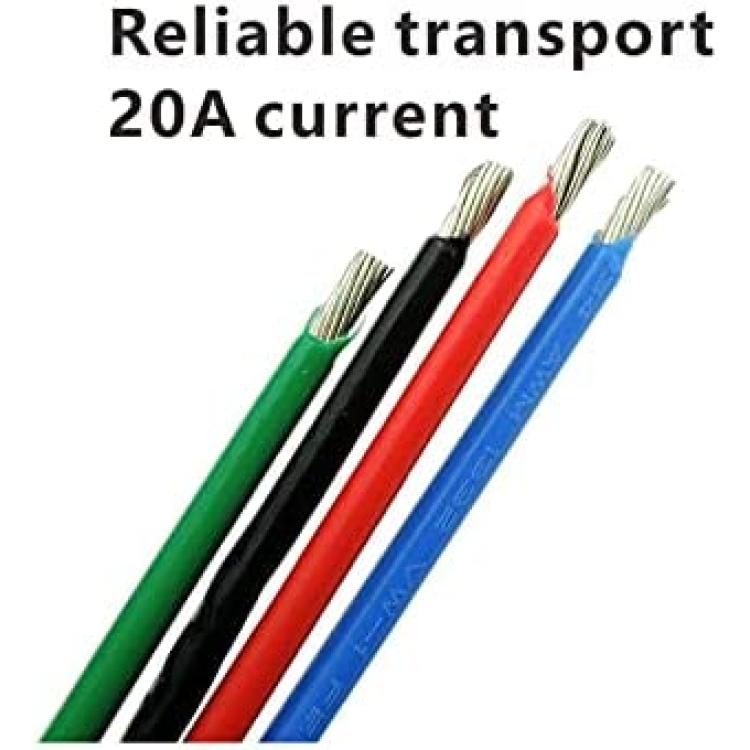

*Input current:10A,the max.20A.
*The item including button switch with metal shell and connective lable,easy to install and use.
Description

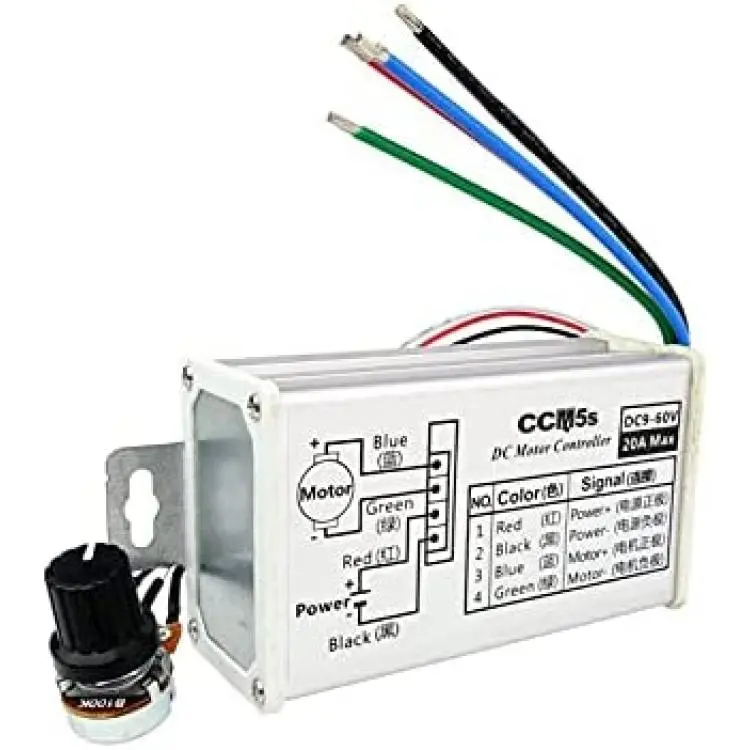

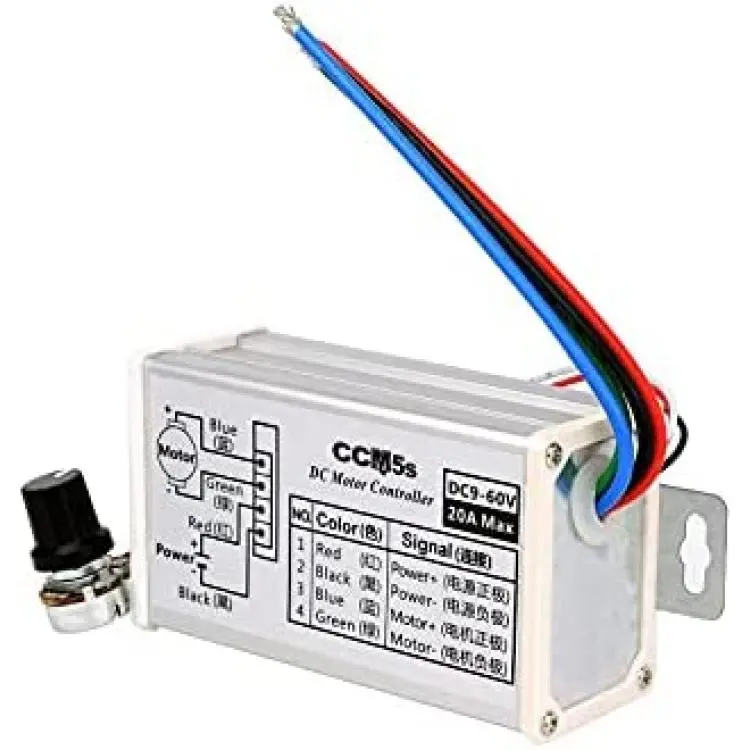

CCM5S DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
Suitable for the DC motor (or DC load) within 20A.
Adjustable speed range is from 0%-100%.
Potentiometer with adjust speed swtich function,and button swtich function.
Potentiometer cable length 20cm,Button swtich cable length: 0.79".
The item with metal shell and connective label,very easy to install and use.
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING:DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER. TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.

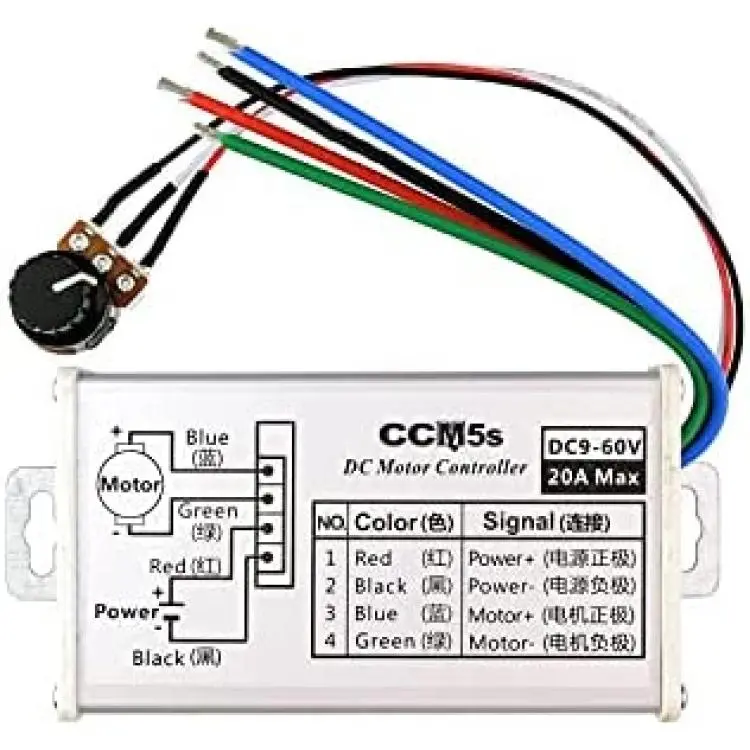

1. Connect wires refer to the "wiring diagram" (NO.5 picture). ( It is recommended to add an appropriately rated fuse inline with the positive supply.)
2. Turn on the power.
3.Adjust the potentiometer.
Package Including:
1 x CCM5S DC Motor Speed Controller
