10N.m Two-Wires Control 9-24VAC/DC Normally Closed Electric Ball Valve Actuator/Controller/Control Switch/Motor-Driven

Product introduction
This 10N.m electric ball valve actuator is small and exquisite in appearance.Its internal transmission part adopts all-metal gears with high precision,switching time less than 15 seconds,smooth operation.
Besides,its protection level is up to IP67,and the normal service life is up to 100,000 times.Safe,durable,energy-saving and environmentally friendly advantages,widely used in home,HVAC,industrial,medical,environmental protection equipment!

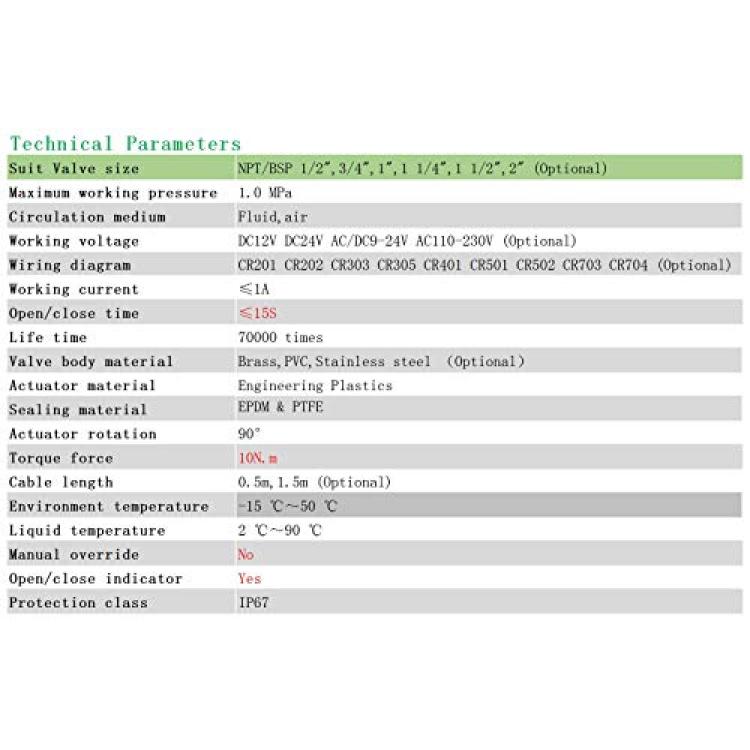

Technical Parameter
? Suit Valve Size?1/2"~2", DN8~DN50
? Maximum Working Pressure? 1.0MPa
? Circulation Medium? Fluid,Air
? Rated Voltage?AC/DC9-24V
? Wiring Control Methods? CR202 ,Normally Closed
? Working Current? ? 1A
? Open/Close Time? ? 15 Sec
? Life Time ?100000 times
? Actuator Meterial? Engineering Plastics
? Sealing Meterial? FKM # PTFE
? Cable Length?0.5m
? Actuator Rotation? 90°
? Environment Temperature? -15°C~50°C
? Liquid Temperature? 2 °C~90°C
? Manual Override? NO
? Indicator ?Yes
? Protection? IP67

Applicable occasion
? 1. HVAC;
? 2. Fire fighting equipment, medical equipment, cleaning equipment;
? 3. Automatic control system, automatic irrigation and drainage equipment;
? 4. Solar water heaters, solar water supply equipment;
? 5. Water treatment systems, drinking water equipment, efficient water-saving appliances;
? 6. Industrial self-control small equipment, environmental protection and other fields, replace the electromagnetic valve can not work in a variety of occasions.
