2N.m AC110-230V Normally Closed Electric Ball Valve Actuator/Controller/Control Switch/Motor-Driven,CR502

Product introduction

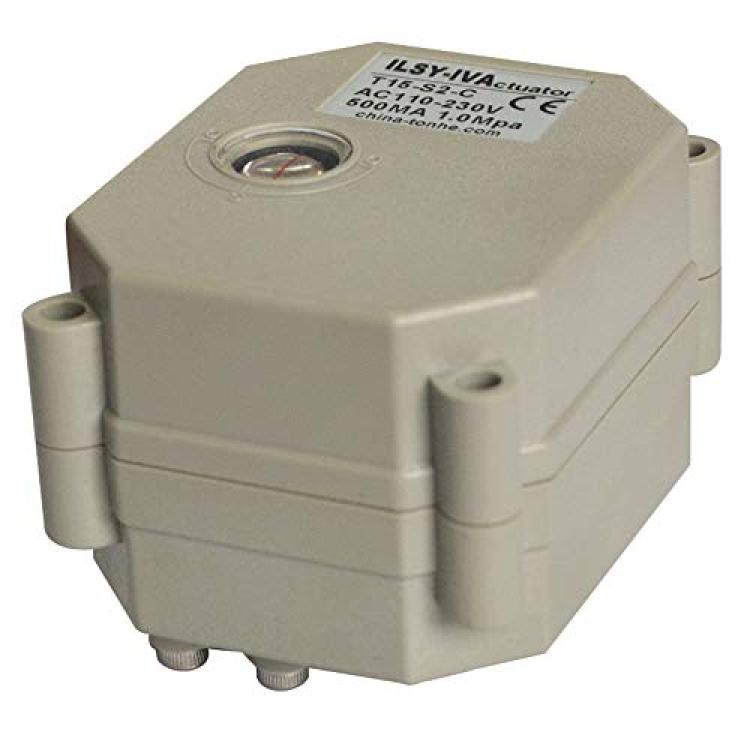

This 2N.m electric ball valve actuator is small and exquisite in appearance.Its internal transmission part adopts all-metal gears with high precision,switching time less than 5 seconds,smooth operation.
Besides,its protection level is up to IP67,and the normal service life is up to 100,000 times.Safe,durable,energy-saving and environmentally friendly advantages,widely used in home,HVAC,industrial,medical,environmental protection equipment!

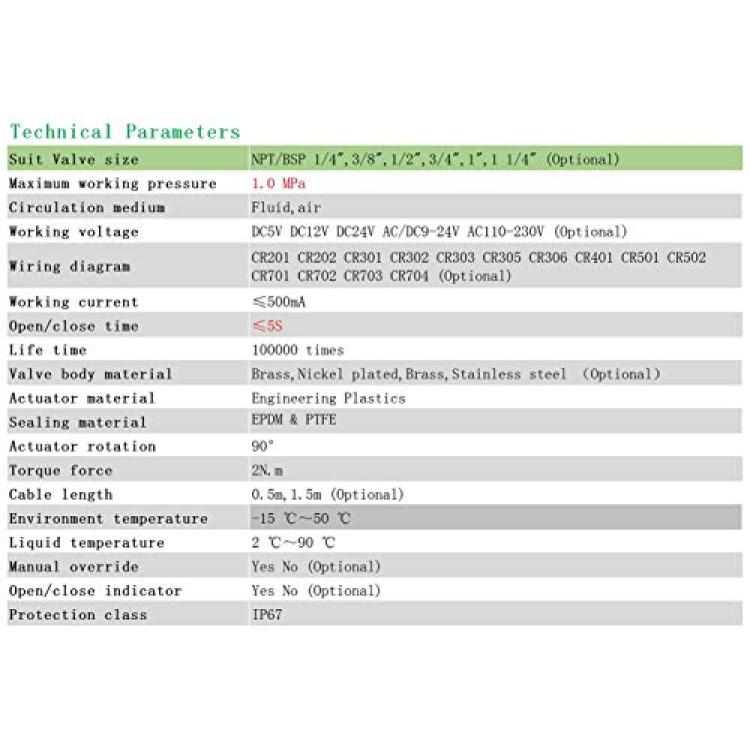

Technical Parameter
? Suit Valve Size?1/4"~1 1/4", DN8~DN32
? Maximum Working Pressure? 1.0MPa
? Circulation Medium? Fluid,Air
? Rated Voltage?AC110-230V
? Wiring Control Methods? CR502,NC
? Working Current? ? 500MA
? Open/Close Time? ? 5 Sec
? Life Time ?100000 times
? Actuator Meterial? Engineering Plastics
? Sealing Meterial? FKM # PTFE
? Cable Length?0.5m
? Actuator Rotation? 90°
? Environment Temperature? -15°C~50°C
? Liquid Temperature? 2 °C~90°C
? Manual Override? NO
? Indicator ?Yes
? Protection? IP67

Applicable occasion
? 1. HVAC;
? 2. Fire fighting equipment, medical equipment, cleaning equipment;
? 3. Automatic control system, automatic irrigation and drainage equipment;
? 4. Solar water heaters, solar water supply equipment;
? 5. Water treatment systems, drinking water equipment, efficient water-saving appliances;
? 6. Industrial self-control small equipment, environmental protection and other fields, replace the electromagnetic valve can not work in a variety of occasions.

Note:

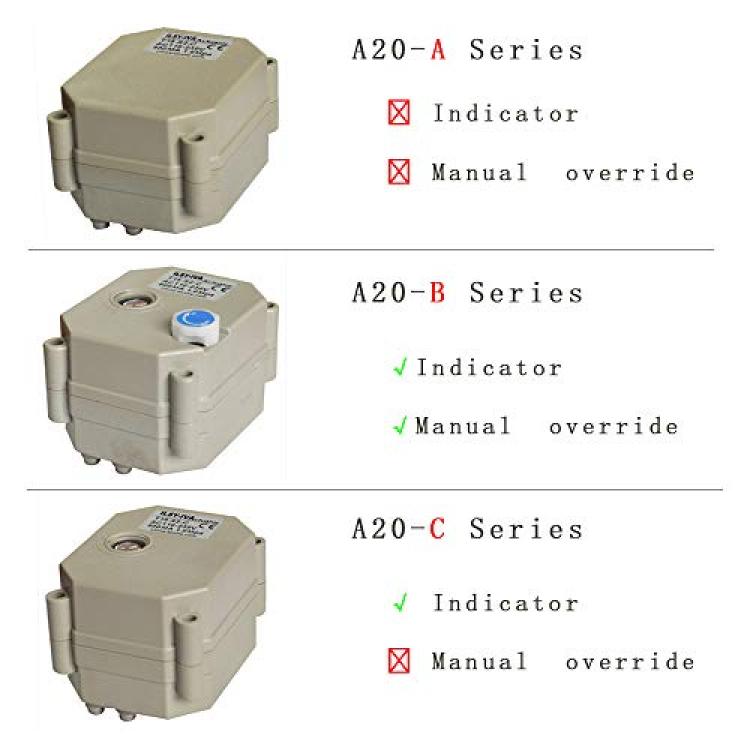

This actuator has different matching models.The default is C type (With Indicator,without manual.)
If you need A, B type actuators, you can contact the seller directly!
