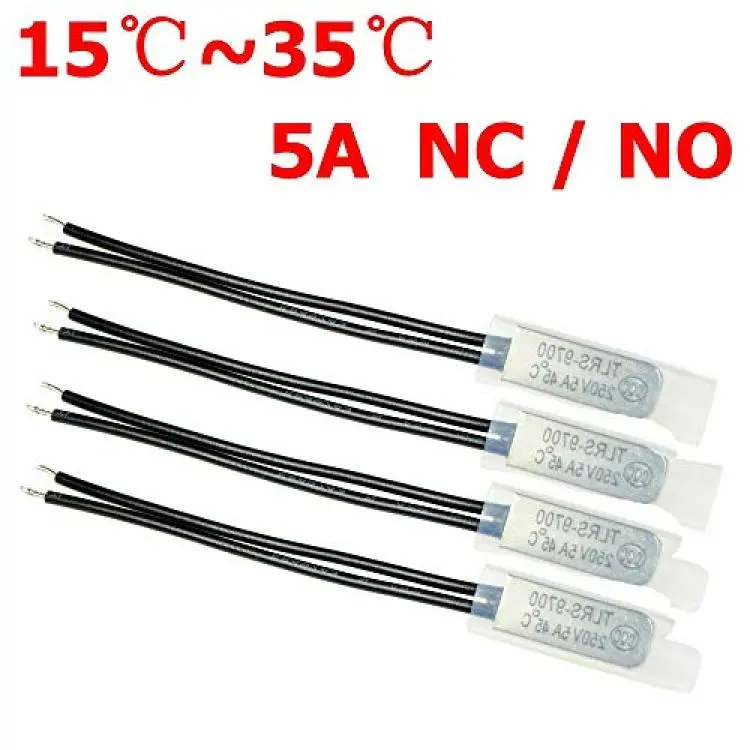

1PC 15C 20C 25C 30C 35C NC Normally Closed NO Normally Open Thermal Switch Temperature Sensor Switches Thermostat Control 5A 250V-35C,NC (Normally Closed)
Availability: Pre-Order, Inquiry Price
About this product
*Be applicable to all kinds of home appliances and electronics products.
*Such as :Electric Motors, Fluorescent Ballasts, Battery Chargers,Transformers, Solenoids, Heating pads, OA-Machines ETC.
*Note： that there is a rubber sleeve on the outside of the iron shell, which must not be removed during use, it is leak-proof Electricity
*Be applicable to all kinds of home appliances and electronics products.
*Such as :Electric Motors, Fluorescent Ballasts, Battery Chargers,Transformers, Solenoids, Heating pads, OA-Machines ETC.

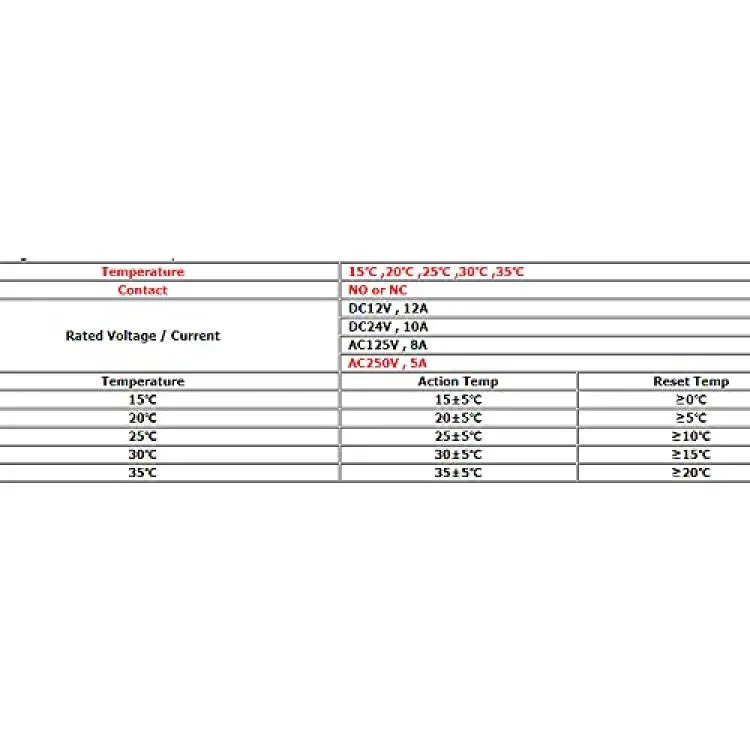

Description
Origin:CN(Origin)
Certification:CQC
Current:5A
Features:Normally Closed or Normally Open
Material:Alloy
Model Number:KSD9700
Switch Type:Temperature Switch
Temperature:15C,20C,25C,30C,35C
Contact:Normally Closed or Normally Open,NC / NO

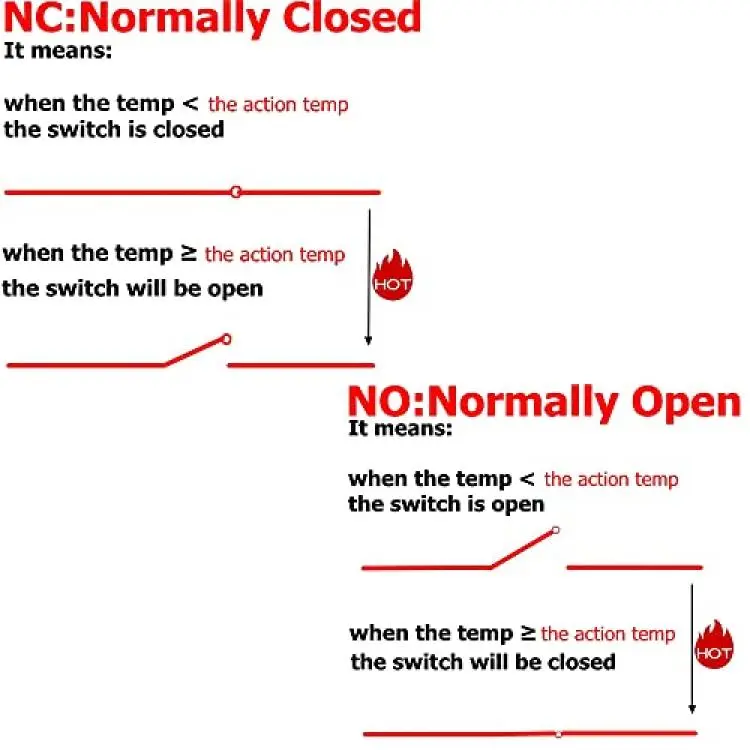

Note:
NC: Normally Closed
When the temp ? the action temp
the current can not pass through (Turn Off)
NO: Normally Open
When the temp ? the action temp
the current can pass through.(Turn ON)
1. When using contact temperature sensing installation, the product should be close to the installation surface of the controlled electrical appliance.
2. Do not squeeze or deform the plastic or metal shell during installation, so as not to affect the performance.
3. For metal shell products with insulating sheath, the outer insulating sheath must not be removed or crushed during installation to avoid leakage and ensure safe use.
4. This product is used in circuits with a current not greater than 5A. When connecting, a wire with a copper core cross-section of 0.4-0.75mm2 should be used.
5. The product should be stored in a ventilated, clean, dry, non-corrosive place with a relative humidity of less than 90% and an ambient temperature of less than 40°C.
The package contain: 1PC Temp Switch.
