VEVOR K11-125 Lathe Chuck 5
Share Facebook Twitter Pinterest Email

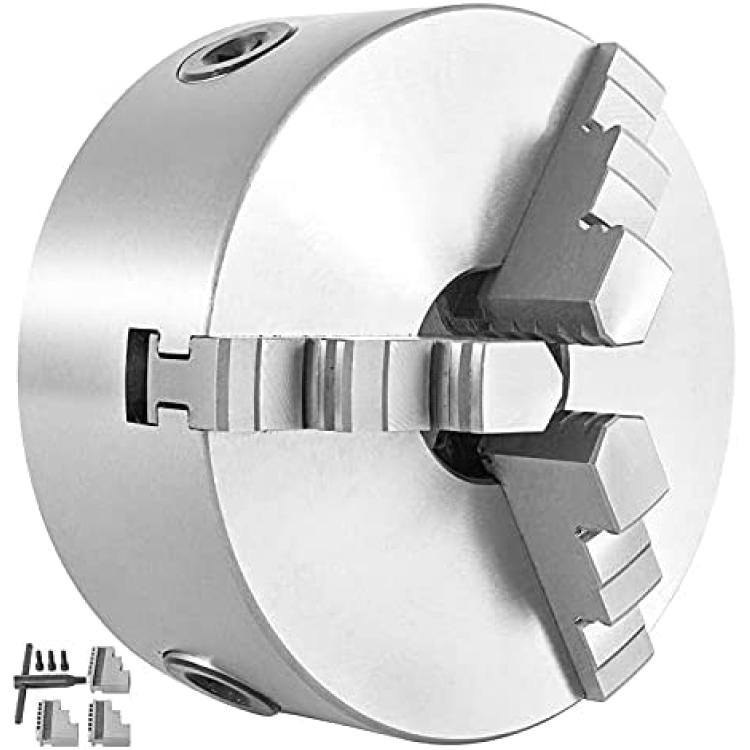

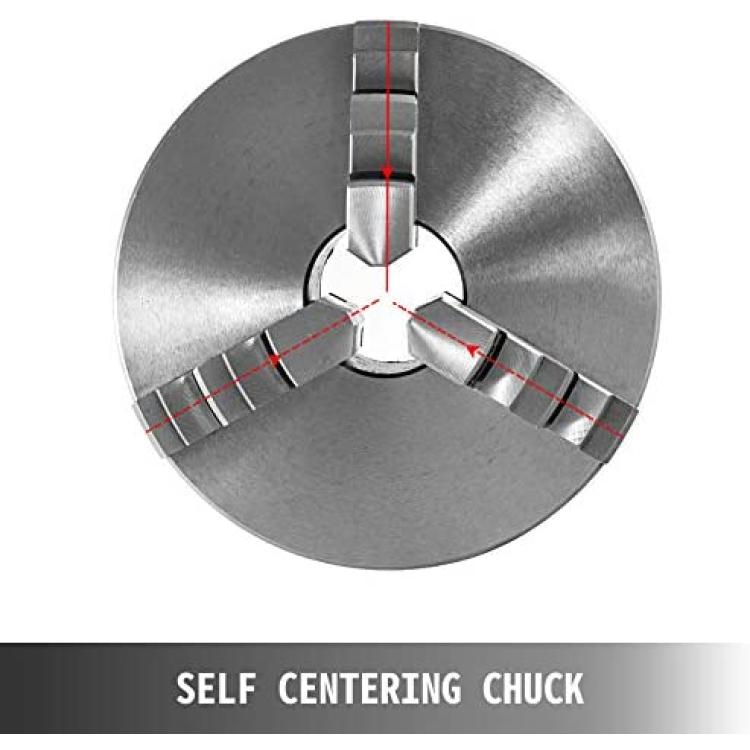

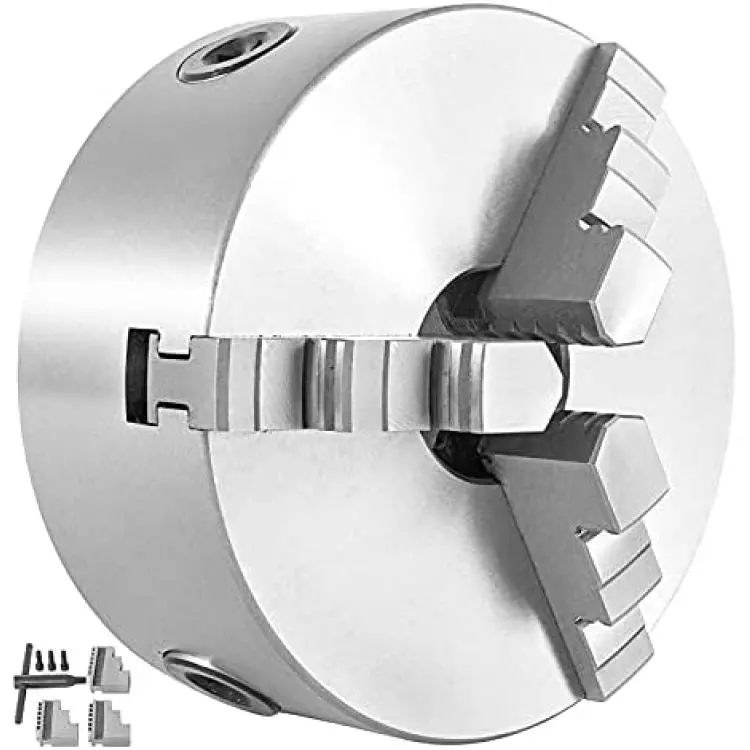

VEVOR K11-125 Lathe Chuck 5", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines

Brand: ‎VEVOR
Product Code: MM27189
Availability: Pre-Order, Inquiry Price
US$0.00
- +

About this product

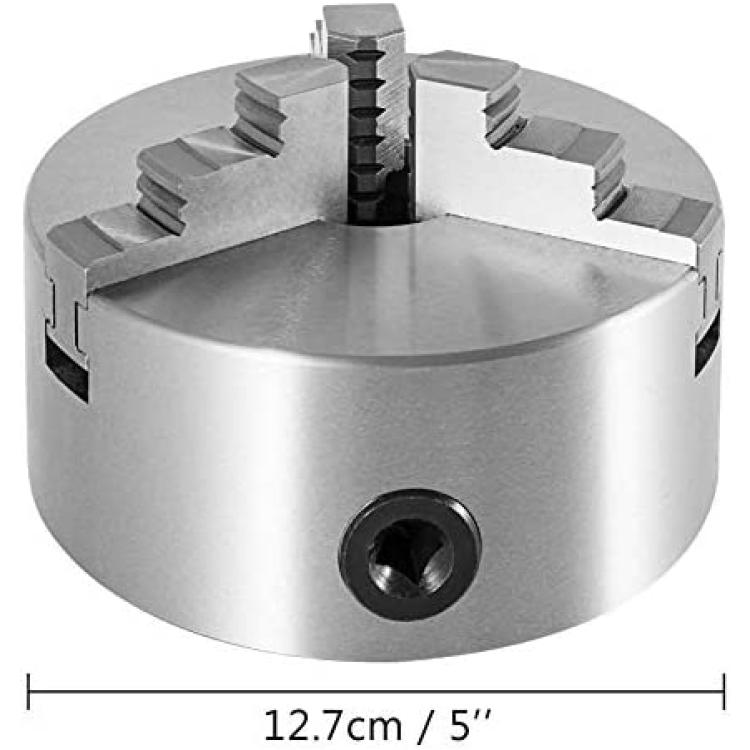

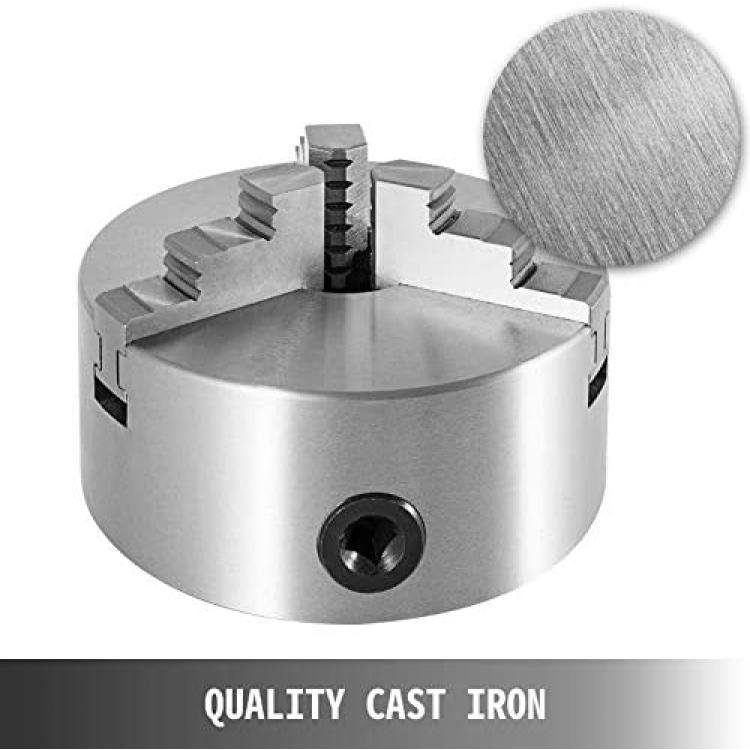

*Premium Material: Diameter: 4.92" / 125 mm; Clamping Range:0.098"-4.33" / 2.5-110 mm; Jamming Range: 1.5"-4.92" / 38-125 mm. The self-centering lathe chuck body is made of quality cast iron that is strong and durable. Several rigorous quality tests have proved that.

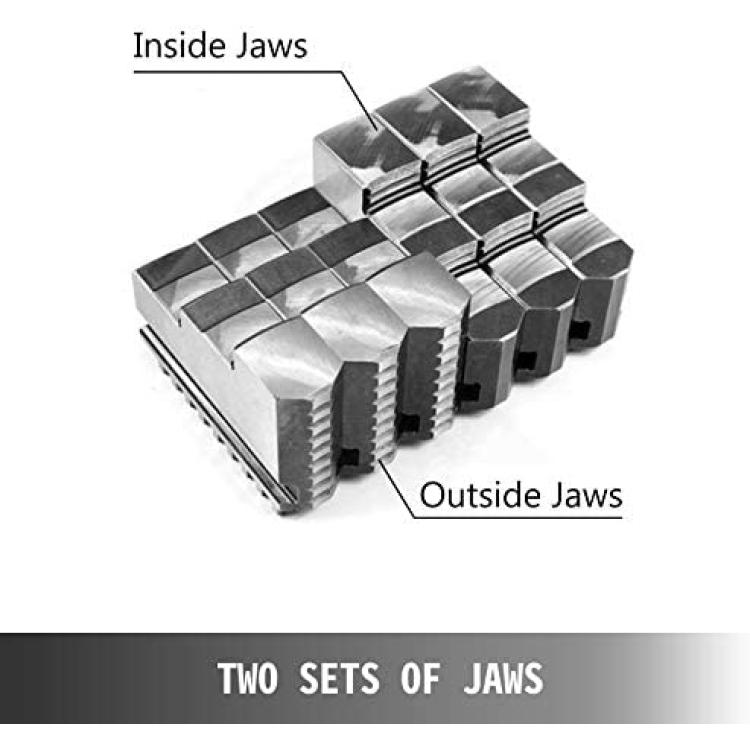

*Internal & External Jaws: The 3-jaw lathe chuck comes with two sets of jaws—inside and outside ones—to extend its holding range, and therefore allows you to handle a wide variety of stock sizes.

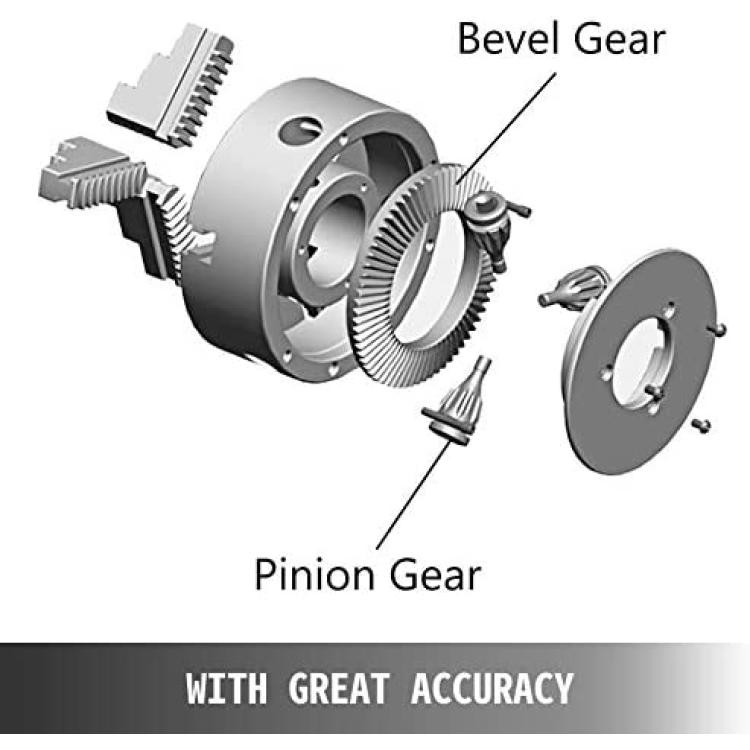

*High Precision: The self-centering lathe part contains a delicate bevel gear and three pinion gears. They contribute to precise processing progress, bearing tolerance of ≤ 0.002in / 0.05 mm.

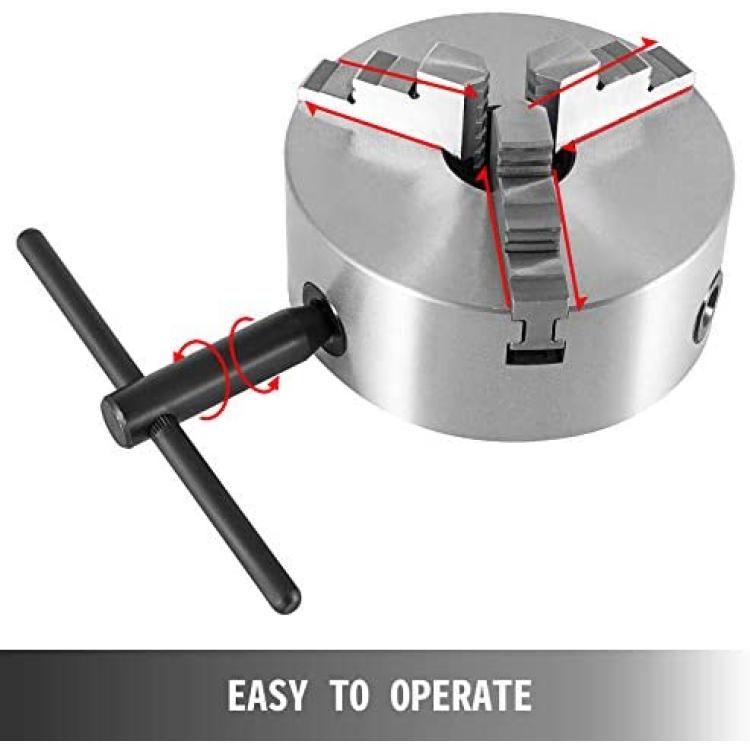

*With High Efficiency: The mini lathe chuck is easy to use by turning the ergonomic T chuck key (included in the package). Since the changeover and setting time is cut, your lathe can work with higher efficiency.

*Wide Application: The metal lathe chuck is widely applied to metal lathes for the general turning of shafts and some more delicate materials. It would be the perfect choice for your lathe machine.

Description

Premium Tough Quality Incredibly Low Prices Fast & Secure Delivery 30-Day Free Returns 24/7 Attentive Service Premium Material Internal & External Jaws High Precision High Efficiency 1 x Lathe Chuck Body 3 x Internal Jaws 3 x External Jaws 3 x Mounting Bolts 1 x Chuck Key Chuck Body Material: Cast IronJaws Material: 40CR SteelBevel Gear Material: 40CR SteelPinions Material: 20CR SteelItem Diameter: 4.92" / 125 mmBolt Circle Diameter: 4.25" / 108 mmCenter Hole Diameter: 1.18" / 30 mmInternal Jaw Clamping Range (A-A1): 0.098"-1.57" / 2.5-40 mmInternal Jaw Jamming Range (B-B1): 1.5"-4.92" / 38-125 mmExternal Jaw Clamping Range (C-C1): 1.5"-4.33" / 38-110 mm
