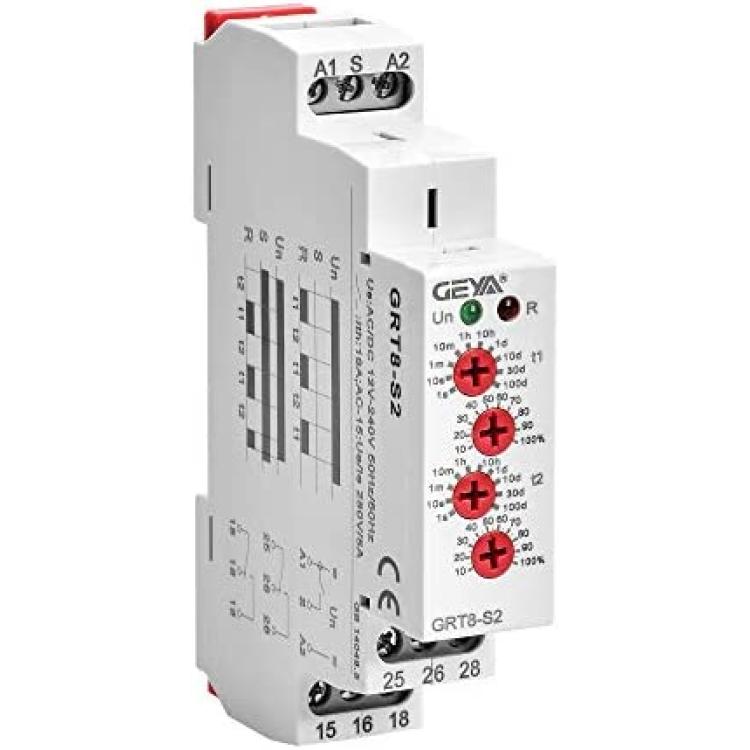

GAEYAELE GRT8-S Asymmetric Cycle Timer SPDT Relay 220V 16A AC/DC12V-240V Electronic Repeat Relay(GRT8-S2,AC/DC12V-240V)

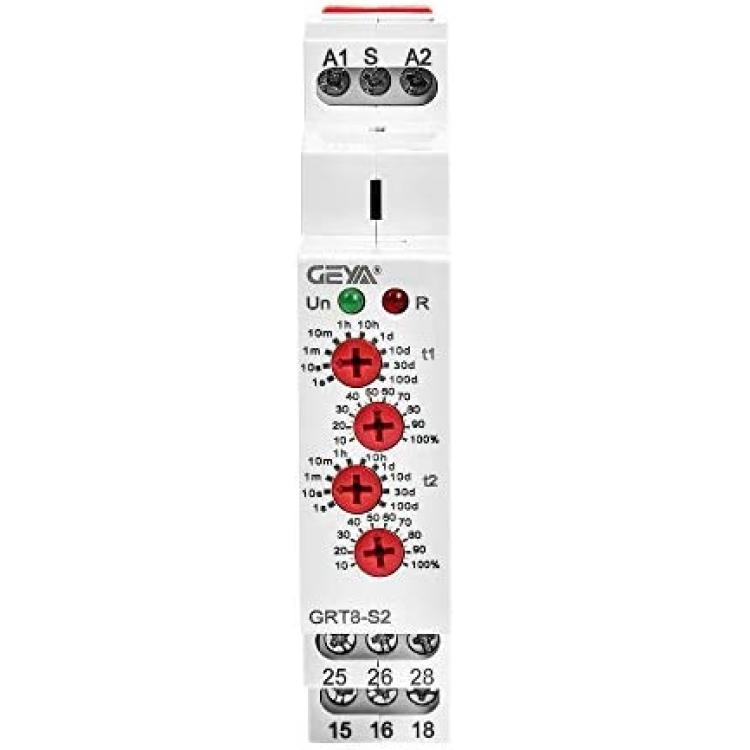

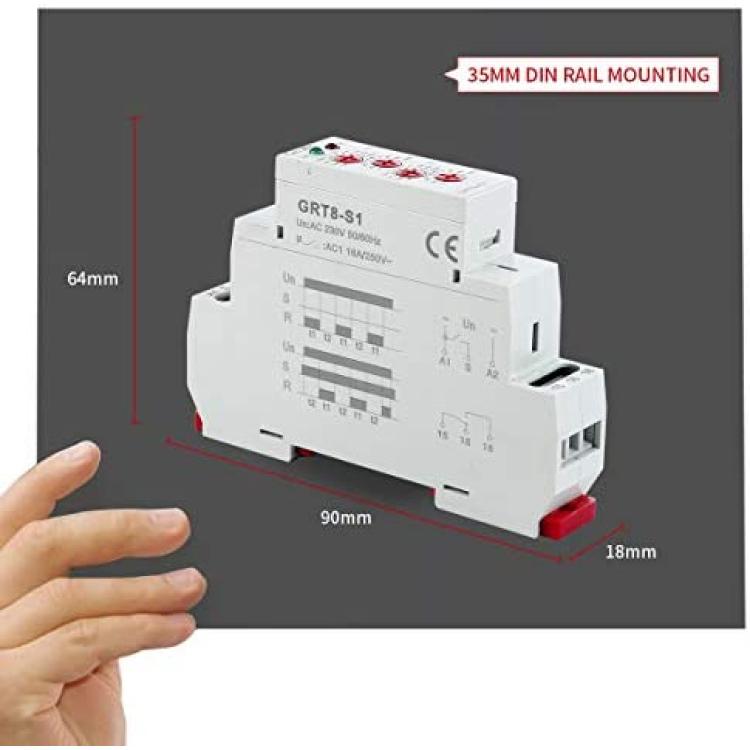

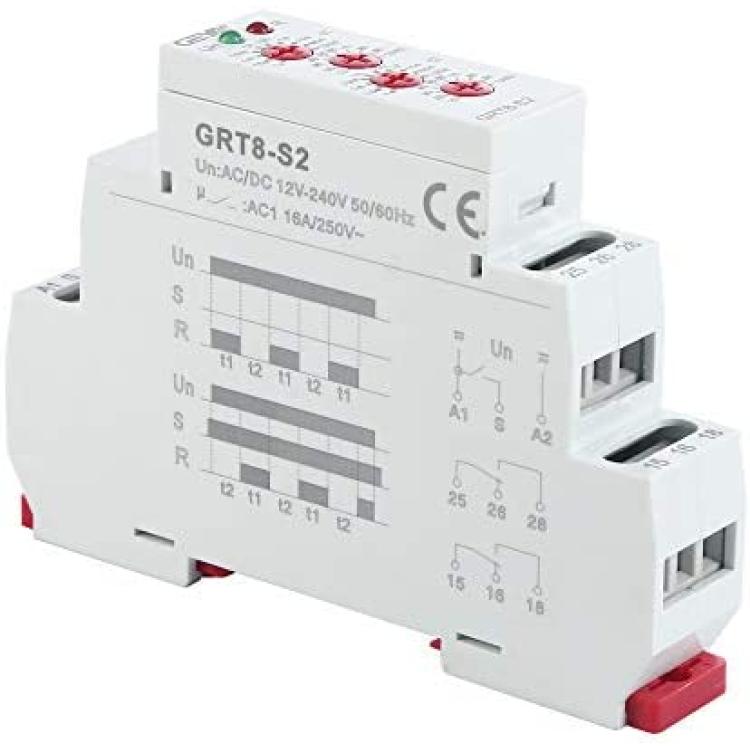

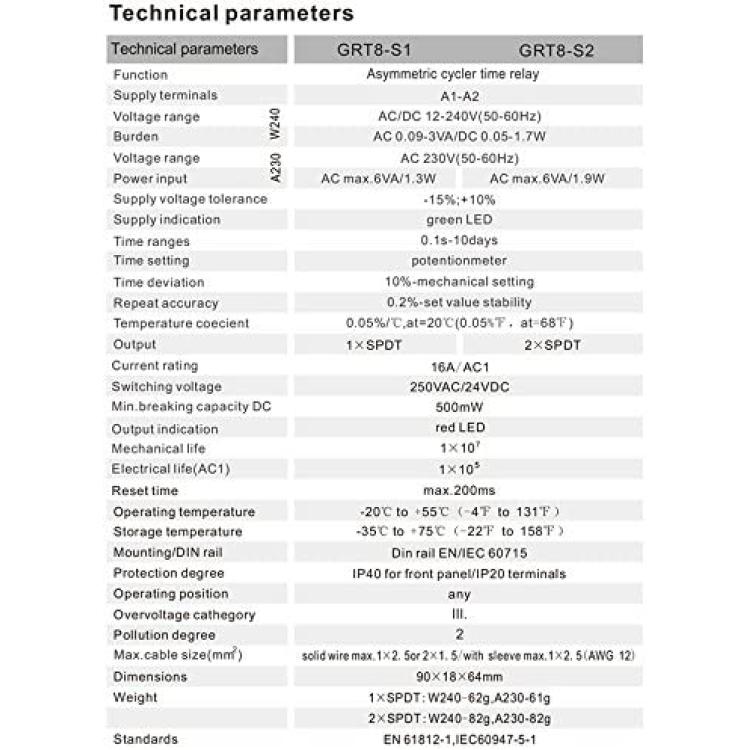

It is used for regular room ventilation, cyclic dehumidification, light control, circulating pumps, noon signs, etc.Time Functions: Cycler beginning with pulse or Cycler beginning with pause.Function choice is done by an external jumper of terminals S-A1.1PCS GRT8-S2 AC/DC 12V-240V Time RelayInstruction manual Rated Control Voltage: AC/DC 12V-240V Output Contact Rating:16A 250VAC/24VDC Output Contact: 2xSPDT Power Source: AC/DC Usage: General Purpose Rated Frequency: 50/60Hz Time Range: 0.1s-100days DIN rail mounting Relay Status: Its working status is indicated by the LED indicator.LED Light: The green light is power indicator and the red light is work indicator.Instructions: Comfortable and well-arranged function and time-range setting by rotary switches.Rotary Knobs: The first knob “S” stands for second, ”M” stands for minute, “H” stands for hour, “D” stands for day. The second knob is percentage setting from 10% to 100%Max.cable size(mm²): solid wire max.1×2.5mm² or 2×1.5mm²?AWG 12?Output: 1×SPDT or 2×SPDTCurrent rating: 16A (AC1)Switching Voltage: 250VAC/24VDCProduct Size: Ultra-small size, only 18mm width, 35mm rail mounting.Weight:1×SPDT:62g/2×SPDT: 82g
