FTVOGUE Timer Relay Module - LCD Display Cycle Timing Switch Board Time Relays Controller Boards for Motor,Module

P1??1: The relay is closed after delaying T1 time.
P1??2: The relay is released after a delay of T1.
P1??3: The relay is closed after a delay of T1, and the relay is released after a delay of T2, and it ends.
P1??4: The relay is released after a delay of T1 time, and the relay is closed after a delay of T2 time, and it ends.
P1??5: The relay is closed after a delay of T1, and the relay is released after a delay of T2, and the cycle is repeated.
P1??6: The relay is released after a delay of T1, and the relay is closed after a delay of T2, and the cycle is repeated.

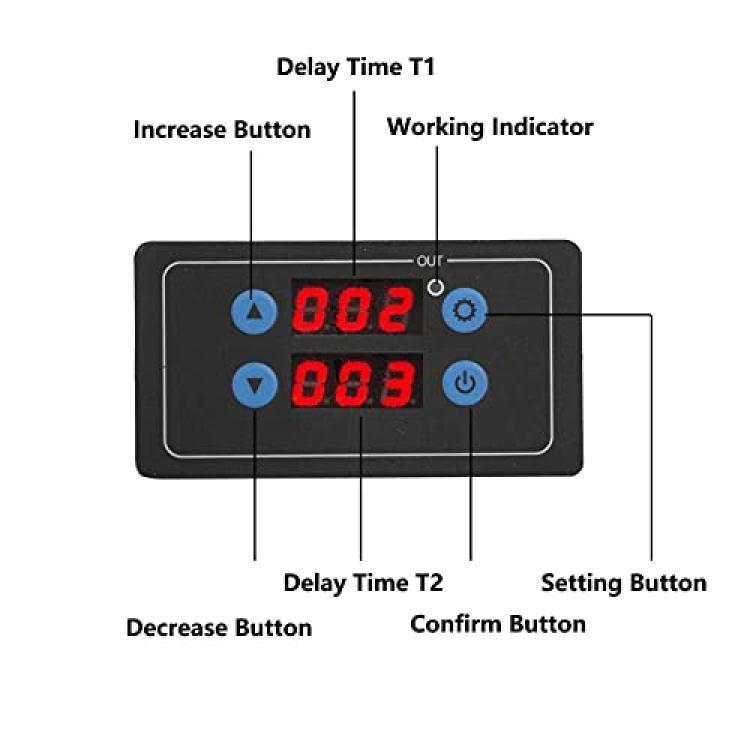

Button setting instructions:
Setting key: long press for 2 seconds to enter the function setting; short press to switch the parameter settings
Button plus: adjust time plus
Button minus: adjust time minus
OK key: start/stop

Item Type: Timer Relay Module
Material: ABS
Model: YF-4
Input Voltage: DC 12V
Output Power: Can Control DC or AC Load within 5A
Time Range: 0.1s - 999h at Any Time Adjustable
Application: Solenoid Valve, Water Pump, Motor, Light Strip, etc.

Package List:
1 x Time Relay Module
