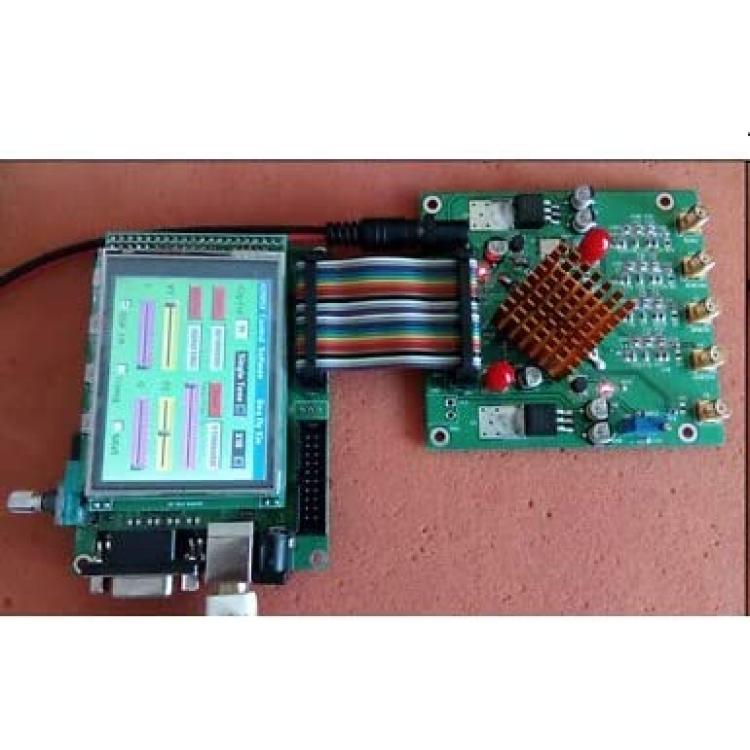

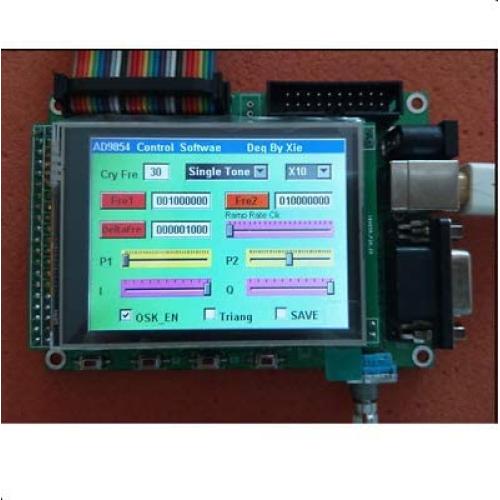

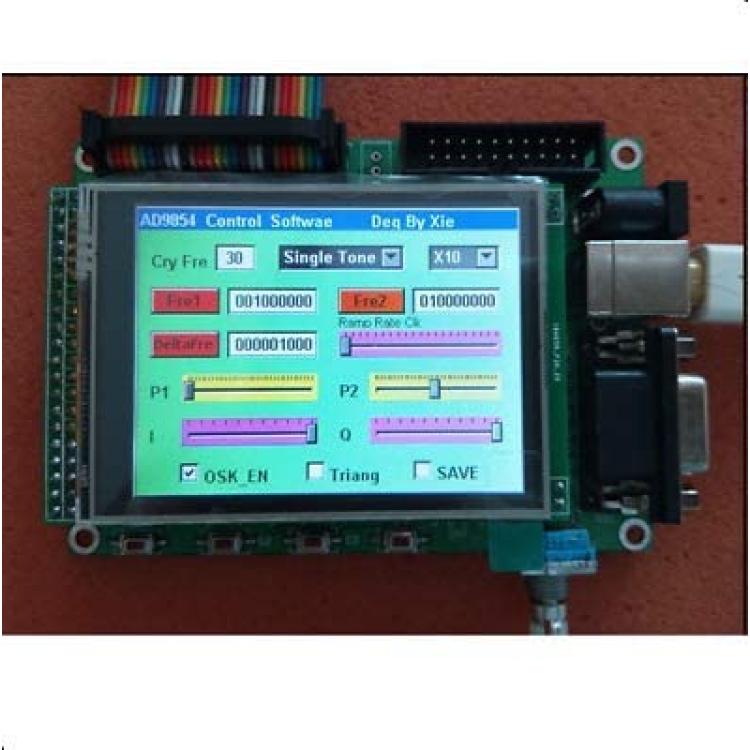

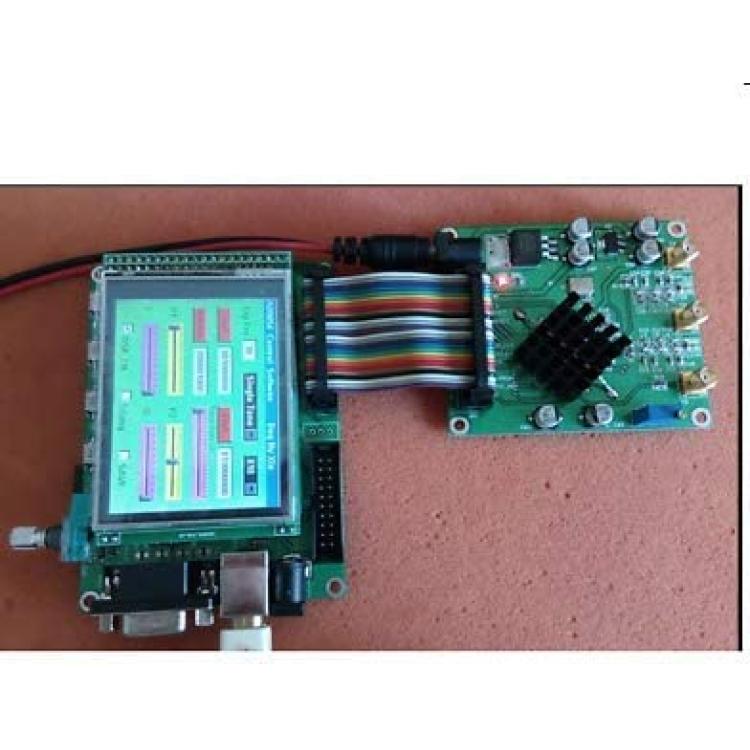

AD9854 DDS Signal Generator + STM32 F103 Controller Board Touch Color Screen

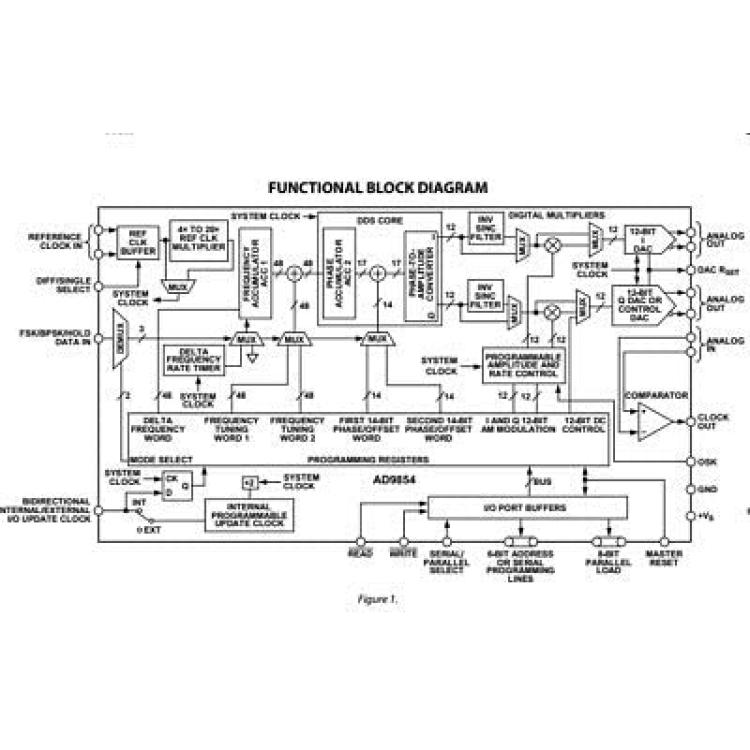

NOTE? we don't ship the item to PO BOX address? and we only ship the item to English address, so please leave us your physical English address when you pay If your country is not listed in our shipping policy, pls tell us your city and zip code, we will check whether your city belong to remote area or not, then tell you the accurate freight. Tks for your understanding and cooperation. AD9854 chip function introduction: · 300 MHz internal clock rate FSK, BPSK, PSK, chirp, AM operation Dual integrated 12-bit digital-to-analog converters (DACs) Ultrahigh speed comparator, 3 ps rms jitter Excellent dynamic performance 80 dB SFDR at 100 MHz (±1 MHz) A OUT 4× to 20× programmable reference clock multiplier Dual 48-bit programmable frequency registers Dual 14-bit programmable phase offset registers 12-bit programmable amplitude modulation and on/off output shaped keying function Single-pin FSK and BPSK data interfaces PSK capability via input/output interface Linear or nonlinear FM chirp functions with single-pin frequency hold function Frequency-ramped FSK void init_9854(void); void AD9854_phase1_adjust(unsigned int phase_value); void AD9854_phase2_adjust(unsigned int phase_value); void AD9854_frequency1_tuning_word(double frequency_value); void AD9854_frequency2_tuning_word(double frequency_value); void AD9854_delta_frequency_word(double delta_frequency_value); void AD9854_update_clock(unsigned long update_clock_value); void AD9854_ramp_rate_clock(unsigned long clock_value); void AD9854_control_bit(struct AD9854_bit control_bit_value); void AD9854_I_gain(unsigned int gain_value); void AD9854_Q_gain(unsigned int gain_value); void AD9854_shaped_keying_ramp_rate(unsigned char ramp_value); void AD9854_QDAC(unsigned int QDAC_value); package list? 1. STM32 controller board*1 2. AD9854 module*1 3. USB cable*1 4. AD9854 cables*1
