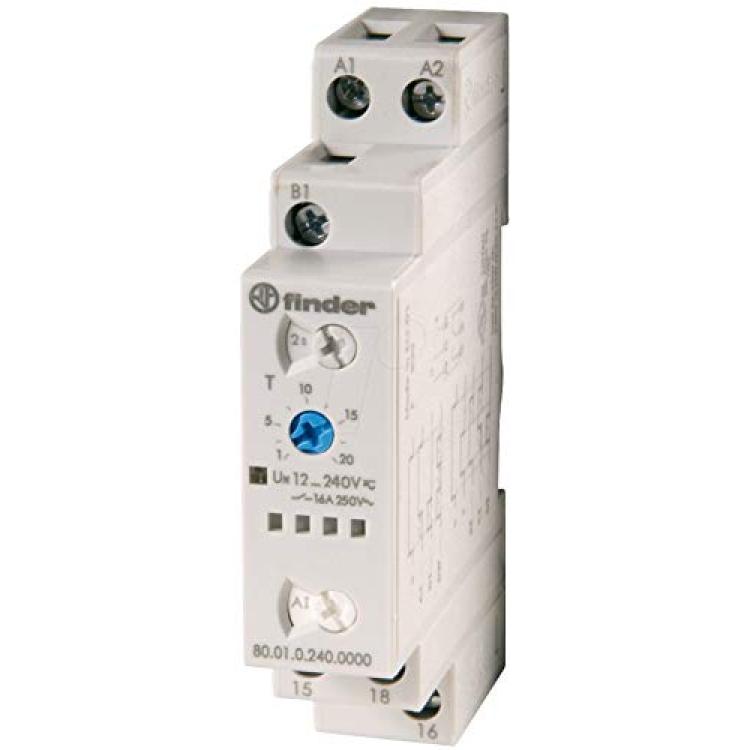

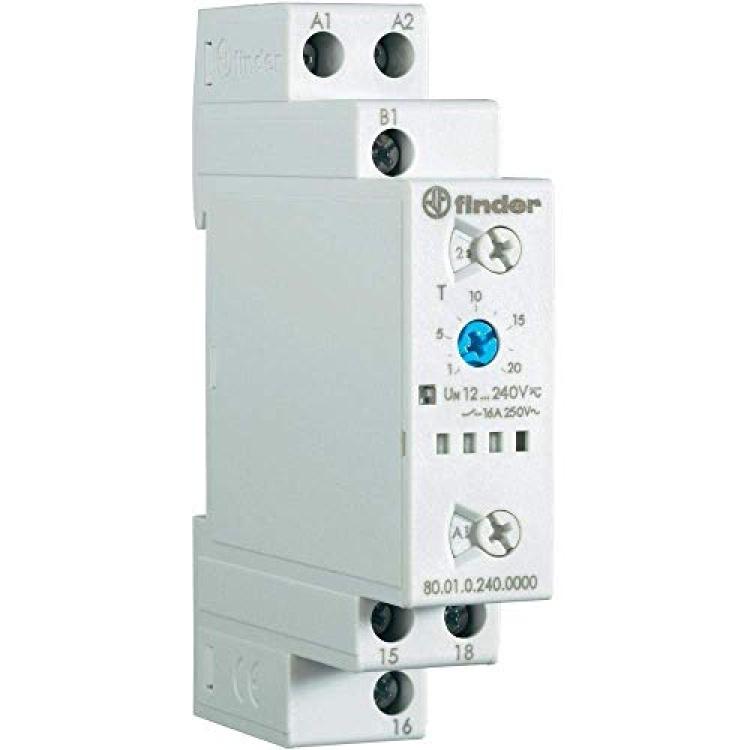

FINDER 80.01.0.240.0000 Multi-Function, MAX 250 VAC, 8 AMP, Multi-Voltage Timer

Highlights: ·Up to 6 time functions

Technical Specifications: Contact material: AgCdO · Contact type: 1 changeover contact · Dimensions: (W x H x D) 17.5 x 60.8 x 88.8 mm · Max. continuous current: 16 A · Product Specifications: Pulse duration : (when control via B1) 50 ms · Reperiod of standby: 50 ms · Protection type: IP20 · RoHS compliant: yes · Switching current: 16 A · Switching power: (AC1) Max 4000 VA/ (AC15, 230 V) Max 750 VA · Switching voltage: Max 400 Vac · Temperature range: -10 - +50 °C · Time range(s): 6 time ranges from 100 ms - 20 hrs · Type: 80.01.0.240.0000

Description: Multifunction time relay with the following functions: On-delay, On wiper, indicator impulse initiated, drop-out delay, On-/Off delay, impulse converter.
